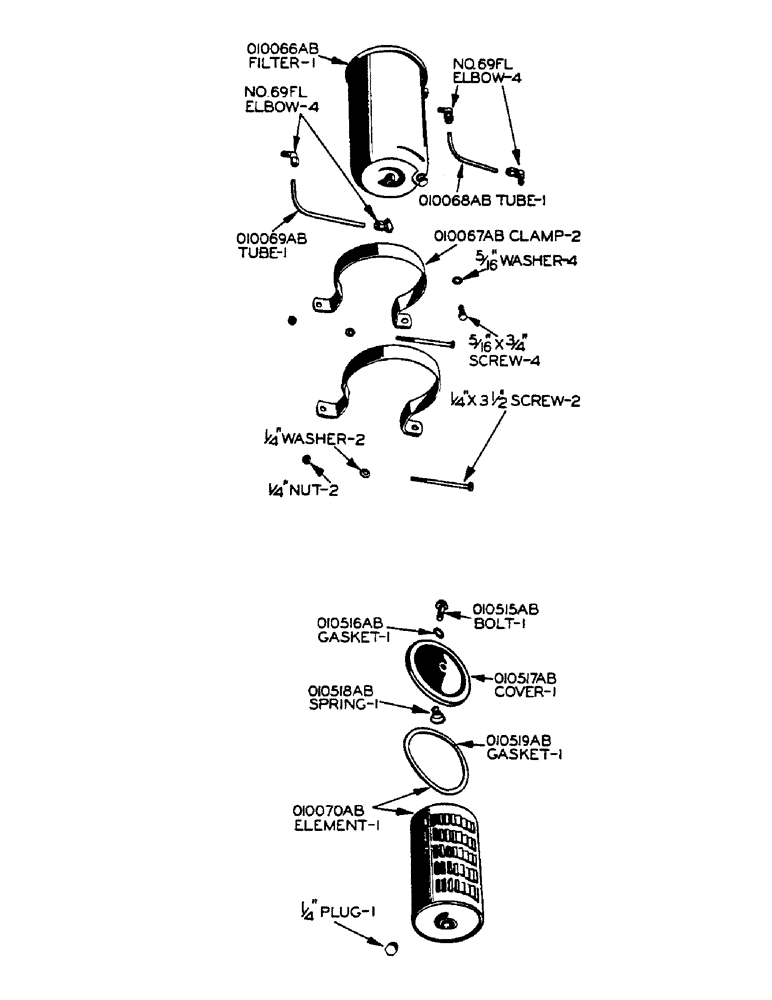

Запчасти Case IH 500-SERIES (012) - CRANK CASE OIL FILTER (02) - ENGINE

O10066AB

FILTER - lubricating oil

1шт.

O10067AB

CLAMP - oil filter

2шт.

5/16" x 3/4" hex hd. cap screw N.C. thrd., with lockwasher

4шт.

1/4" x 3-1/2" hex hd. cap screw N.F. thrd., with nut and lockwasher

2шт.

O10068AB

TUBE - inlet, oil filter

1шт.

IMPERIAL FLEX ELBOW, no. 69FL (1/4" tube size x 1/8" pipe thrd.)

2шт.

O10069AB

TUBE - outlet, oil filter

1шт.

IMPERIAL FLEX ELBOW, no. 69FL (1/4" tube size x 1/8" pipe thrd.)

2шт.

O10070AB

X

ELEMENT - with gasket, oil filter, parts for 10066AB

1шт.

O10515AB

BOLT - cover, parts for 10066AB oil filter

1шт.

O10516AB

GASKET - cover bolt, parts for 10066AB oil filter

1шт.

O10517AB

COVER, parts for 10066AB oil filter

1шт.

O10518AB

SPRING - cover, parts for 10066AB oil filter

1шт.

O10519AB

GASKET - cover, parts for 10066AB oil filter

1шт.

DRAIN PLUG - (1/4" hex head pipe plug), parts for 10066AB oil filter

1шт.
