Запчасти Case IH 500-SERIES (010) - VALVE GRIND GASKET KITS, 6320A CYLINDER HEAD (02) - ENGINE

A7636

SEAL

"O" RING - thermostat seal

1шт.

A7639

GASKET

- thermostat housing

2шт.

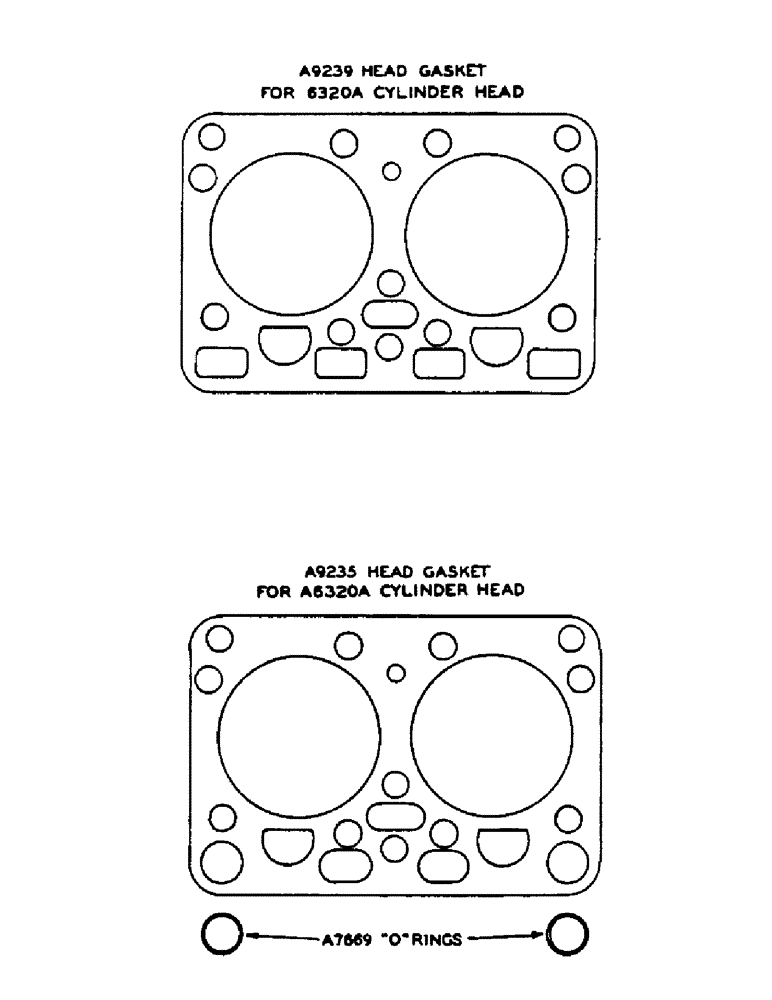

A9239

CYLINDER HEAD GASKET

- cylinder head

3шт.

O8569AB

X

"O" RING - cylinder head oil passage

3шт.

O9772AB

X

"O" ring - valve rocker arm shaft tube

3шт.

O9784AB

GASKET - decompressor lever housing

3шт.

O9804AB1

X

GASKET - water manifold

6шт.

O9809AB

X

GASKET - intake manifold elbow

2шт.

O9814AB

X

GASKET - intake manifold

3шт.

O9815AB

X

GASKET - exhaust manifold

6шт.

O9959AB

X

GASKET - cylinder head cover

3шт.

A7636

SEAL

"O" RING - thermostat seal, A6320A cylinder head

1шт.

A7639

GASKET

- thermostat housing, A6320A cylinder head

2шт.

A7669

RING

- rubber, cylinder head gasket, A6320A

6шт.

A9235

CYLINDER HEAD GASKET

- cylinder head, A6320A

3шт.

O8569AB

X

"O" RING - cylinder head oil passage, A6320A

3шт.

O9772AB

X

"O" RING - valve rocker arm shaft tube, A6320A cylinder head

3шт.

O9784AB

GASKET - decompressor lever housing, A6320A cylinder head

3шт.

O9804AB1

X

GASKET - water manifold, A6320A cylinder head

6шт.

O9809AB

X

GASKET - intake manifold elbow, A6320A cylinder head

2шт.

O9814AB

X

GASKET - intake manifold, A6320A cylinder head

3шт.

O9815AB

X

GASKET - exhaust manifold, A6320A cylinder head

6шт.

O9959AB

X

GASKET - cylinder head cover, A6320A

3шт.

A6320A

KIT valve grind gasket for cylinder head is part No. A20148 which now subs to gasket kit part No. A189503, A6320A

1шт.
