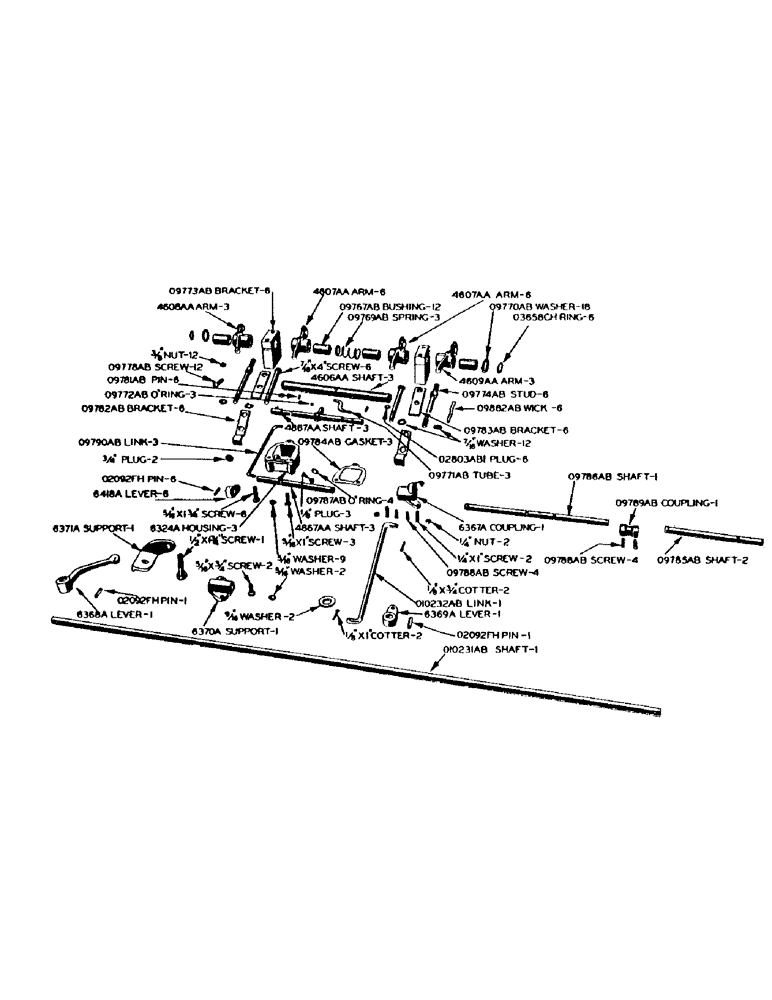

Запчасти Case IH 500-SERIES (008) - ROCKER ARMS AND DECOMPRESSOR, ROCKER ARMS (02) - ENGINE

O2803AB1

PLUG - valve rocker arm shaft

6шт.

O9767AB

X

BUSHING - inlet and exhaust rocker arm

12шт.

O9769AB

X

SPRING - valve rocker arm shaft

3шт.

O9770AB

X

WASHER - valve rocker arm shaft

18шт.

O9771AB

X

TUBE - oil, valve rocker arm shaft

3шт.

O9772AB

X

"O" RING - valve rocker arm shaft oil tube

3шт.

O9773AB

BRACKET - valve rocker arm shaft

6шт.

7/16" x 4" hex hd. cap screw, N.C. thrd., with lockwasher

6шт.

O9774AB

STUD - valve rocker arm shaft bracket

6шт.

7/16" hex nut, light, N.F. thrd., with lockwasher

6шт.

O9778AB

X

SCREW - valve push rod adjusting, rocker arm

12шт.

3/8" hex jam nut, light, N.F. thrd.

12шт.

O9882AB

X

WICK - exhaust valve rocker arm

6шт.

O3658CH

X

SNAP RING - valve rocker arm shaft

6шт.

4606AA

SHAFT - valve rocker arm

3шт.

4607AA

X

ARM - inlet valve rocker, with bushing

6шт.

4608AA

ARM - exhaust valve rocker, with bushing, for no. 1, 3 and 5 cylinder

3шт.

4609AA

ARM - exhaust valve rocker, with bushing, for no. 2, 4 and 6 cylinder

3шт.

6323A

LEVER - decompressor control prior to tractor no. 8037491. For repairs furnish 2 - 6418A levers

1шт.

6324A

HOUSING - decompressor control lever

3шт.

5/16" x 1" hex hd. cap screw N.C. thrd., with lockwasher, decomperssor

3шт.

5/16" x 1-3/4" hex hd. cap screw N.C. thrd., with lockwasher, decompressor

6шт.

1/8" slotted hd. pipe plug, decompressor

3шт.

3/4" Welch plug, decompressor

2шт.

6367A

COUPLING - stop, decompressor control shaft

1шт.

1/4" x 1" sq. hd. oval point set screw, N.C. thrd., with hex nut, decompressor

2шт.

6368A

LEVER - hand, decompressor control

1шт.

6369A

LEVER - decompressor hand lever shaft

1шт.

6370A

SUPPORT - front, decompressor hand lever shaft

1шт.

5/16" x 3/4" hex hd. cap screw, N.C. thrd., with lockwasher, decompressor

2шт.

6371A

SUPPORT - rear, decompressor hand lever shaft

1шт.

1/2" x 1-3/4" hex hd. cap screw, N.C. thrd., decompressor

1шт.

9/16" S.A.E. plain washer, light, decompressor

2шт.

1/8" x 1" cotter pin, decompressor

2шт.

6418A

LEVER - decompressor control. Tractor no. 8037491 and after. See 6323A

6шт.

O9781AB

PIN - decompressor trip

6шт.

O9782AB

BRACKET - top, decompressor shaft

6шт.

O9783AB

BRACKET - bottom, decompresor shaft

6шт.

O9784AB

GASKET - decompressor control lever housing

3шт.

O9785AB

SHAFT - decompressor control, short

2шт.

O9786AB

SHAFT - decompressor control, long

1шт.

O9787AB

X

"O" RING - decompressor control shaft

4шт.

O9788AB

X

SCREW - set, decompressor control shaft

4шт.

O9789AB

COUPLING - decompressor control shaft

1шт.

O9790AB

LINK - decompressor control, upper

3шт.

1/16" x 5/8" cotter pin, decompressor

6шт.

O10231AB

SHAFT - decompressor hand lever

1шт.

9/16" S.A.E. plain washer, light

2шт.

1/8" x 1" cotter pin

2шт.

O10232AB

LINK - decompressor control lever, lower

1шт.

1/8" x 3/4" cotter pin

2шт.

O2092FH

X

ROLL PIN - for 6323A, 6368A, 6369A and 6418A levers (3/16" x 1"), decompressor

8шт.

4599AA

SHAFT - decompressor, with lever and trip pin prior to tractor no. 8037491. For repairs furnish 1 - 4867AA and 1 - 6418A

1шт.

4867AA

SHAFT - decompressor, with lever and trip pin. Tractor no. 8037491 and after (See 4599AA)

3шт.
