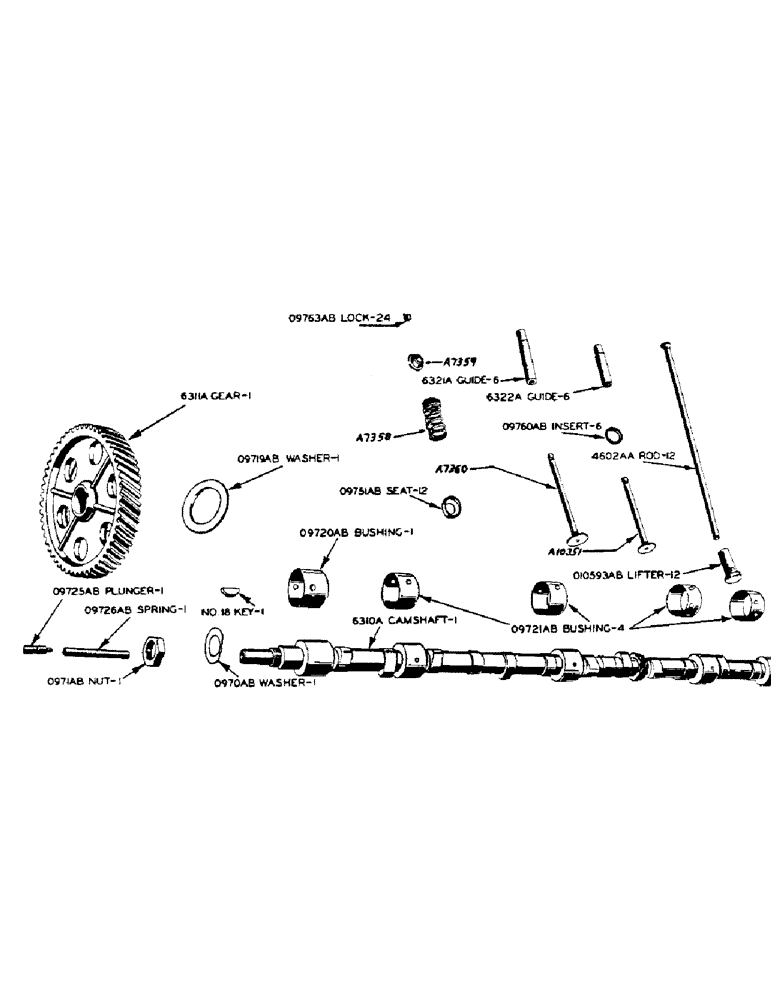

Запчасти Case IH 500-SERIES (007) - VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

A7205

LIFTER - push rod. (.010" oversize) See O10593AB

12шт.

A7358

SPRING

- valve, for A7360 and A10351 (See O9761AB)

12шт.

A7359

RETAINER - valve spring for A7360 and A10351 (See O9762AB)

12шт.

A7360

VALVE,ENGINE,INLET,S

VALVE - inlet (Requires A7359) See O9758AB

6шт.

A10351

VALVE, ENG EXHAUST,

VALVE - exhaust, scraper type (Requires A7359) See O9759AB1

6шт.

6310A

CAMSHAFT

1шт.

6311A

X

GEAR - camshaft

1шт.

No. 18 Woodruff key

1шт.

6321A

GUIDE - inlet valve

6шт.

6322A

GUIDE - exhaust valve

6шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" hex N.C. thrd.)

1шт.

O9719AB

WASHER - camshaft thrust

1шт.

O9720AB

BUSHING - camshaft, front

1шт.

O9721AB

BUSHING - camshaft, second, third, fourt and rear

4шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

12шт.

O9758AB

X

VALVE - inlet (Requires O9762AB) Can use A7360 and A7359

6шт.

O9759AB1

X

VALVE - exhaust (Requires O9762AB) Can use A7359 and A10351

6шт.

O9760AB

INSERT - exhaust valve seat

6шт.

O9761AB

SPRING - inlet and exhaust valve for O9758AB and O9759AB1 (See A7358)

12шт.

O9762AB

RETAINER - valve spring for O9758AB and O9759AB1 (See A7359)

12шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

24шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (Standard) See A7205

12шт.

4602AA

ROD

- push

12шт.
