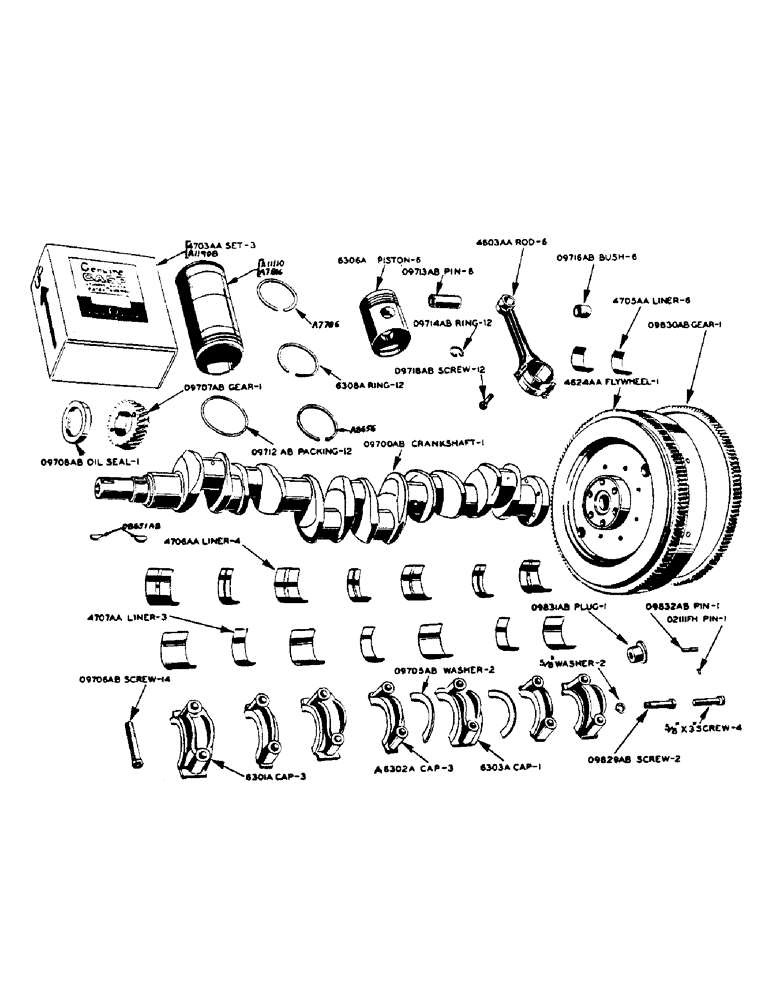

Запчасти Case IH 500-SERIES (006) - PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

A7173

X

LINER - connecting rod bearing, top and bottom half (.002" undersize), piston

6шт.

A7175

X

LINER - connecting rod bearing, top and bottom half (.010" undersize), piston

6шт.

A7177

SHIELD

LINER - connecting rod bearing, top and bottom half (.020" undersize), piston

6шт.

A7179

X

LINER - connecting rod bearing, top and bottom half (.030" undersize), piston

6шт.

A7786

OIL SEAL

RINGS - piston top, and connecting rod

6шт.

A7816

X

SLEEVE - cylinder for 6300A, A6300A, and B6300A block (See A11110 sleeve), piston and connecting rod

6шт.

A8090

RING

S - set of 24 Perfect circle 2 in 1 chrome rings, piston and connecting rod

1шт.

A8656

RING

- piston oil, and connecting rod

6шт.

A11110

X

SLEEVE - cylinder for A11155 block, piston and connecting rod

6шт.

A11908

Set of (2) cylinder sleeves, packing, 2 pistons w/rings, pins and retainer rings for A11155 block, and connecting rod

3шт.

6306A

X

PISTON, and connecting rod

6шт.

6308A

X

RING - piston, second and third, and connecting rod

12шт.

O9712AB

X

PACKING - cylinder sleeve, piston and connecting rod

12шт.

O9713AB

PIN - piston, and connecting rod

6шт.

O9714AB

X

RING - piston pin retainer

12шт.

O9716AB

BUSHING - connecting rod

6шт.

O9718AB

X

SCREW - connecting rod cap

12шт.

4603AA

X

ROD - connecting, with cap, cap screws and piston pin bushing

6шт.

4703AA

X

Set of (2) cylinder sleeves with 4 packings, 2 pistons with rings, pins and pin retainer rings (For 6300A, A6300A and B6300A)

3шт.

4705AA

X

LINER - connecting rod bearing, top and bottom half (Standard size)

6шт.

A7182

KIT

LINER - crankshaft bearing (Wide - upper and lower) .002" undersize

4шт.

A7185

CHAIN

LINER - crankshaft bearing (Narrow - upper and lower) .002" undersize

3шт.

A7188

BEARING LINER

LINER - crankshaft bearing (Wide - upper and lower) .010" undersize

4шт.

A7191

SPINDLE

LINER - crankshaft bearing (Narrow - upper and lower) .010" undersize

3шт.

A7194

KIT

LINER - crankshaft bearing (Wide - upper and lower) .020" undersize

4шт.

A7197

LINER - crankshaft bearing (Narrow - upper and lower) .020" undersize

3шт.

A7200

KIT

LINER - crankshaft bearing (Wide - upper and lower) .030" undersize

4шт.

A7203

LINER - crankshaft bearing (Narrow - upper and lower) .030" undersize

3шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) See O9705AB

2шт.

6301A

CAP - crankshaft bearing, wide

3шт.

A6302A

X

CAP - crankshaft bearing, narrow

3шт.

6303A

CAP - crankshaft thrust bearing

1шт.

6318A

FLYWHEEL - use 4624AA, crankshaft

1шт.

O8651AB

X

KEY - Woodruff type "C" for O9700AB, crankshaft

2шт.

O9700AB

CRANKSHAFT

1шт.

O9705AB

X

WASHER - crankshaft thrust (Standard size) See A7204

2шт.

O9706AB

SCREW - crankshaft bearing cap

14шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft front

1шт.

O9829AB

SCREW - flywheel dowel, crankshaft

2шт.

5/8" std. lockwasher

2шт.

O9830AB

X

GEAR - flywheel ring (137 teeth), crankshaft

1шт.

O9831AB

X

PLUG - flywheel oil control, crankshaft

1шт.

O9832AB

PIN - wiggle, flywheel oil control, crankshaft

1шт.

O2111FH

X

ROLL PIN - for O9832AB wiggle pin, crankshaft

1шт.

4624AA

FLYWHEEL - with ring gear, crankshaft

1шт.

5/8" x 3" hex hd. cap screw, N.F.

4шт.

4706AA

X

LINER - crankshaft bearing (Wide - upper and lower) Standard size

4шт.

4707AA

LINER - crankshaft bearing (Narrow - upper and lower) Standard size

3шт.
