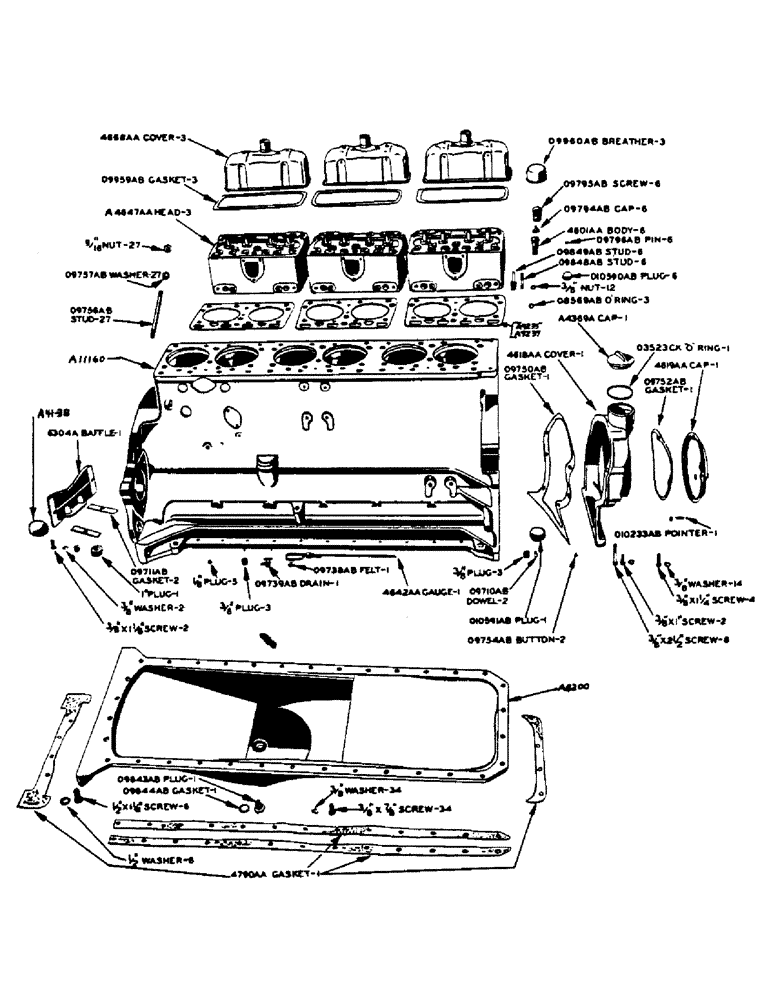

Запчасти Case IH 500-SERIES (004) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN (02) - ENGINE

A7669

RING

- cylinder head gasket rubber, use with A6320A

6шт.

A9235

CYLINDER HEAD GASKET

- cylinder head, use with A6320A (See A20148 gasket kit on page 10)

3шт.

A9239

CYLINDER HEAD GASKET

- cylinder head use with 6320A (See A20150 gasket kit on page 10)

3шт.

A6320A

HEAD - cylinder, use A4647AA

1шт.

6320A

HEAD - cylinder, use A4647AA

1шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

3шт.

O9756AB

X

STUD - cylinder head

27шт.

9/16" hex nut, light, N.F. thrd

27шт.

O9757AB

X

WASHER - cylinder head stud

27шт.

O9848AB

X

STUD - nozzle holder, small

6шт.

3/8" hex nut, light, N.F. thrd

6шт.

O9849AB

STUD - nozzle holder, large

6шт.

3/8" hex nut, light, N.F. thrd

6шт.

O9959AB

X

GASKET - cylinder head cover

3шт.

O9960AB

X

BREATHER - cylinder head cover

3шт.

O10590AB

X

WELCH PLUG - for cylinder head (Cadmium plated)

6шт.

A4647AA

HEAD - cylinder, with valve guides and valve inserts

3шт.

4668AA

COVER - cylinder head

3шт.

O9794AB

X

CAP - powrcel

6шт.

O9795AB

X

SCREW - powrcel clamp

6шт.

O9796AB

PIN - locating powrcel body (1/8" dia. x 5/16" long)

6шт.

4601AA

X

BODY - powrcel

6шт.

A41-38

WELCH PLUG - 2-3/8" for camshaft hole in block, cylinder

1шт.

A7509

PLUG

WELCH PLUG - cylinder block (1-3/8" dia.) stainless steel

1шт.

A11155

BLOCK - cylinder (Use A11160)

1шт.

A11160

BLOCK - cylinder w/bearing caps and camshaft bushings

1шт.

1/8" slotted hd. pipe plug

5шт.

3/8" socket pipe plug

3шт.

1" socket pipe plug

1шт.

A6300A

BLOCK - cylinder (Use A11160 block and A11908 cylinder sleeve sets)

1шт.

B6300A

BLOCK - cylinder (Use A11160 block and A11908 cylinder sleeve sets)

1шт.

4641AA

CONDUIT - fastens along block for wires and tube, cylinder block

1шт.

5/16" x 1/2" hex hd. cap screw NC w/lockwasher

2шт.

4642AA

X

GAUGE - lube oil level w/felt washer, cylinder block

1шт.

O9738AB

FELT WASHER - lube oil level gauge, cylinder block

1шт.

O9739AB

X

VALVE - water drain, cylinder block

1шт.

O10591AB

X

WELCH PLUG - cylinder block (Stainless steel) 1-13/16" dia.

1шт.

VT3399

WELCH PLUG - cylinder block (1" dia.)

1шт.

A8200

PAN - oil

1шт.

3/8" x 7/8" hex hd. cap screw, N.C. thrd., with lockwasher

34шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

6шт.

6304A

BAFFLE - engine oil, rear, pan

1шт.

3/8" x 1-1/8" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O9711AB

X

GASKET - for 6304A oil baffle, oil pan

2шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

4790AA

X

GASKET KIT - oil pan

1шт.

A7351

CAP - timing gear cover, with thrust button. Tractor no. 8042678 and after (See 4619AA) (See note on page 40)

1шт.

3/8" x 1-1/8" hex hd. cap screw, N.C. thrd. with lockwasher

3шт.

3/8" x 3/4" finished hex bolt, N.C. thrd. with lockwasher

1шт.

4369A

X

CAP - oil filler. Use A4369A cap with O3523CK O'ring, timing gear cover

1шт.

A4369A

CAP - oil filler, timing gear cover

1шт.

6316A

COVER - timing gear. Use 4618AA

1шт.

6317A

CAP - timing gear cover. Use 4619AA

1шт.

6469A

CAP - timing gear cover. Use A7351

1шт.

O966AB

X

GASKET - for 4369A cap. See O3523CK, timing gear cover

1шт.

9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

9752AB

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10233AB

POINTER - timing. Prior to tractor no. 8042678. See O10853AB (See note on page 40), gear cover

1шт.

O10853AB

POINTER - timing. Tractor no. 8042678 and after. See O10233AB (See note on page 40), gear cover

1шт.

1/4" x 1/2" finished hex bolt, N.C. thrd

2шт.

1/4" no. 4014-20 Shakeproof external-internal tooth lockwasher

2шт.

O3523CK

X

O'RING - for A4369A cap. See O966AB, timing gear cover

1шт.

4618AA

COVER - timing gear, with thrust button

1шт.

3/8" x 1" hex hd. cap screw, N.C. thrd. with lockwasher

2шт.

3/8" x 2-1/2" hex hd. cap screw, N.C. thrd. with lockwasher

8шт.

4619AA

CAP - timing gear cover, with thrust button. Prior to tractor no. 8042678. See A7351. (See note on page 40)

1шт.

3/8" x 1-1/4" hex hd. cap screw, N.C. thrd. with lockwasher

4шт.
