Запчасти Case IH 500-SERIES (119) - DRAWBAR (09) - CHASSIS

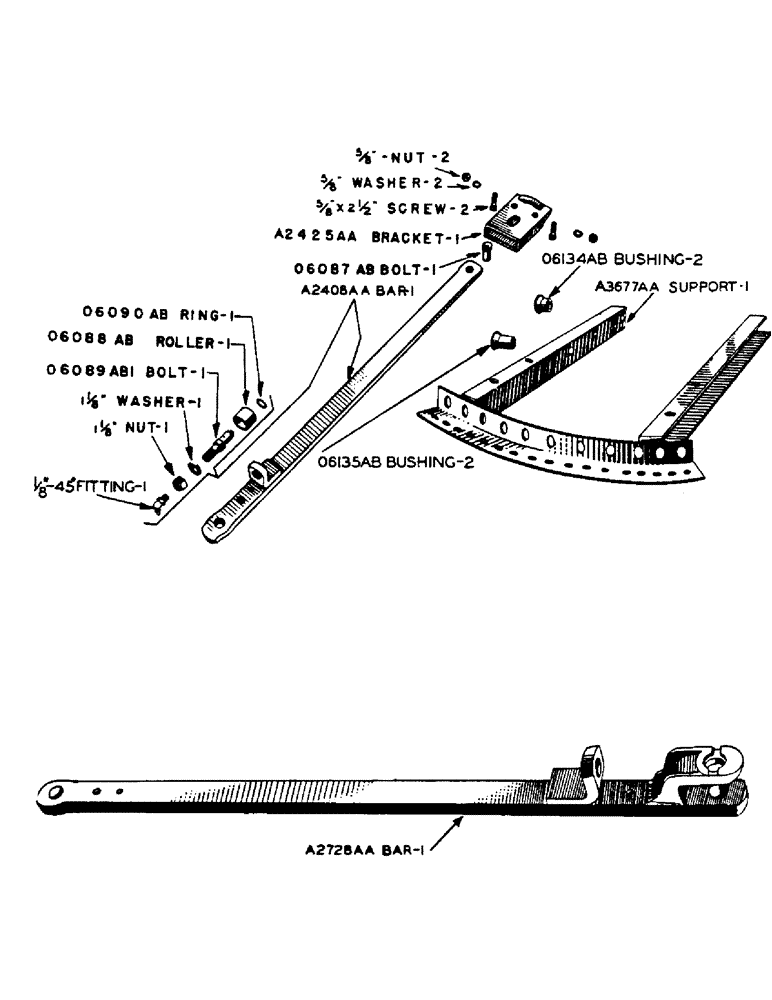

Схема запчастей Case IH 500-SERIES - (119) - DRAWBAR (09) - CHASSIS

Артикул

Название

Примечание

Количество

O6087AB

X

BOLT - draw bar pivot

1шт.

O6088AB

X

ROLLER - draw bar

1шт.

O6089AB1

X

BOLT - draw bar roller

1шт.

1/8" - 45 degree Lincoln fitting, no. 5200

1шт.

1-1/8" hex nut, light, N.F. thrd., with lockwasher

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt

1шт.

O6134AB

BUSHING - draw bar channel, front

2шт.

3/4" x 2-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O6135AB

BUSHING - draw bar channel, rear

2шт.

3/4" x 3" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

A2408AA

X

DRAW BAR - with roller assembly. (Consists of: Draw bar with 1 - O6088AB, 1 - O6089AB1, 1 - O6090AB, 1 - 1-1/8" hex nut, N.F. thrd., with lockwasher and 1/8" - 45 degree Lincoln fitting)

1шт.

A2425AA

BRACKET - draw bar pivot

1шт.

5/8" x 2-1/2" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

2шт.

A3677AA

SUPPORT - draw bar

1шт.

5738A

YOKE - draw bar (Use A2728AA), type rear end

1шт.

O6088AB

X

ROLLER - draw bar with yoke type rear end

1шт.

O6089AB1

X

BOLT - draw bar roller, yoke type rear end

1шт.

1/8" - 45 degree Lincoln fitting, no. 5200

1шт.

1-1/8" hex, light nut, N.F. thrd., with lockwasher

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt, yoke type rear end

1шт.

O6249AB

PIN - draw bar yoke type rear end

1шт.

3/8" x 2-1/2" cotter pin

1шт.

A2728AA

drawbar with yoke type rear end

1шт.

BAR - draw, with roller assembly (Machinery item) Consists of: Draw bar with 1 - O6088AB, 1 - O6089AB1, 1 - O6090AB, 1 - O6249AB, 1 - 1-1/8" hex light nut, N.F. thrd., 1 - 1-1/8" lockwasher, 1 - 3/8" x 2-1/2" cotter pin and 1 - 1/8" - 45 degree Lincoln fitting

1шт.

Выбрано товаров: 24
