Запчасти Case IH 500-SERIES (118) - PLATFORM TRACTOR NUMBER 8060852 AND AFTER (09) - CHASSIS

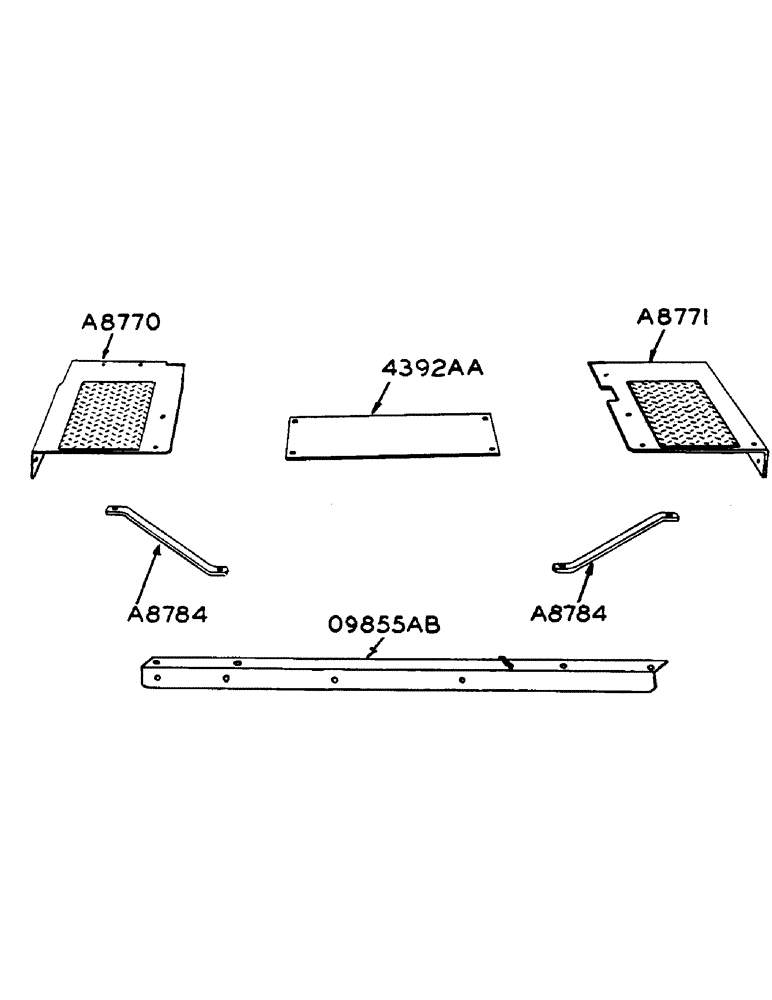

Схема запчастей Case IH 500-SERIES - (118) - PLATFORM TRACTOR NUMBER 8060852 AND AFTER (09) - CHASSIS

Артикул

Название

Примечание

Количество

A8770

PLATFORM AND PAD - R.H.

1шт.

5/16" x 3/4" carr. bolt w/hex nut and lockwasher

1шт.

1/2" x 1-1/4" carr. bolt w/hex nut and lockwasher

1шт.

5/8" x 1-1/2" hex hd. bolt (NF) w/hex nut and lockwasher

2шт.

A8771

PLATFORM AND PAD - L.H.

1шт.

5/16" x 3/4" carr. bolt w/nut and lockwasher

1шт.

1/2" x 1-1/4" carr. bolt w/nut and lockwasher

1шт.

5/8" x 1-1/2" hex hd. bolt (NF) w/nut and lockwasher

2шт.

A8784

BRACE - platform

2шт.

1/2" x 1-3/4" fin. hex bolt, N.F., w/nut and lockwasher

2шт.

1/2" x 1-1/2" fin. hex bolt, N.F., w/nut and lockwasher

2шт.

5/8" x 1-3/4" fin. hex bolt, N.C., w/nut and lockwasher

2шт.

4392AA

SHEET - platform rear center

1шт.

5/16" x 3/4" carr. bolt w/nut and lockwasher

2шт.

1/2" x 1-1/4" carr. bolt w/nut and lockwasher

2шт.

O9855AB

ANGLE - platform rear

1шт.

1/2" x 1-1/4" carr. bolt w/nut and lockwasher

2шт.

Выбрано товаров: 17
