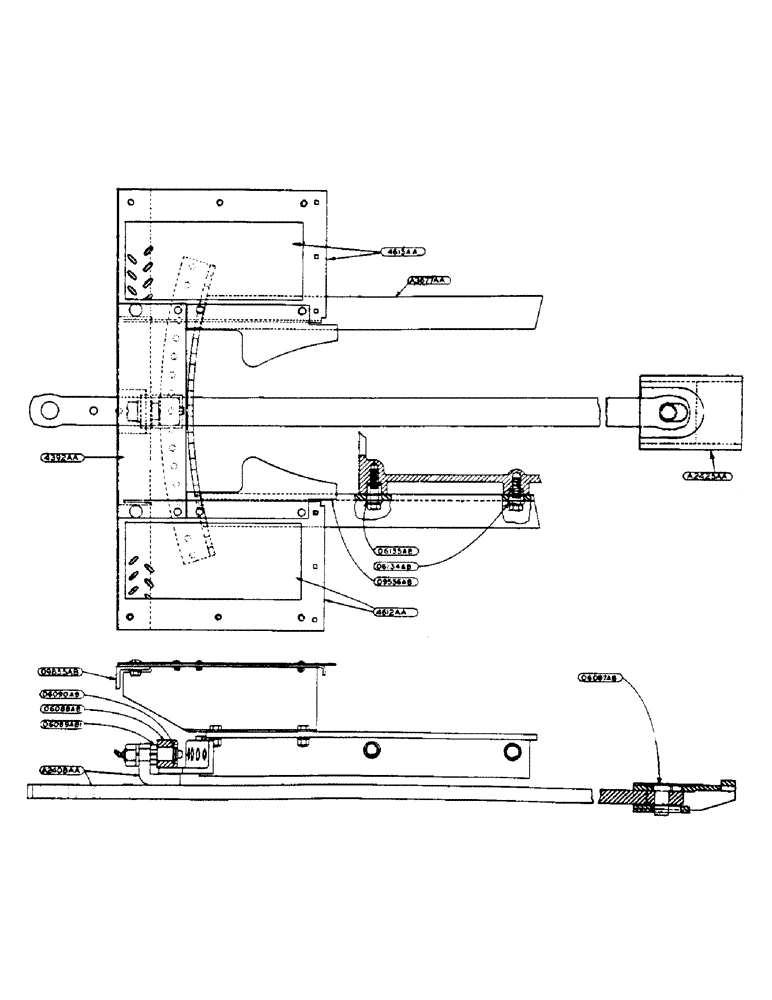

Запчасти Case IH 500-SERIES (117) - PLATFORM PRIOR TO TRACTOR NUMBER 8060852 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
O9536AB
SHEET - platform, front center
2шт.
5/16" x 3/4" carr. bolt, with hex nut and lockwasher
4шт.
O9855AB
ANGLE - platform, rear
1шт.
1/2" x 1-1/4" carr. bolt with hex nut and lockwasher
2шт.
4392AA
SHEET - platform rear center
1шт.
5/16" x 3/4" carr. bolt with hex nut and lockwasher
2шт.
1/2" x 1-1/4" carr. bolt with hex nut and lockwasher
2шт.
4612AA
PLATFORM - R.H.
1шт.
5/16" x 3/4" carr. bolt, with hex nut and lockwasher
1шт.
1/2" x 1-1/4" carr. bolt, with hex nut and lockwasher
1шт.
5/8" x 1-1/2" hex hd. cap screw, N.F. thrd., with nut and lockwasher
2шт.
4613AA
PLATFORM - L.H.
1шт.
5/16" x 3/4" carr. bolt, with hex nut and lockwasher
1шт.
1/2" x 1-1/4" carr. bolt, with hex nut and lockwasher
1шт.
5/8" x 1-1/2" hex hd. cap screw, N.F. thrd., with nut and lockwasher
2шт.
Выбрано товаров: 15
