Запчасти Case IH 500-SERIES (098) - CASE, COMFORT, SEAT (09) - CHASSIS

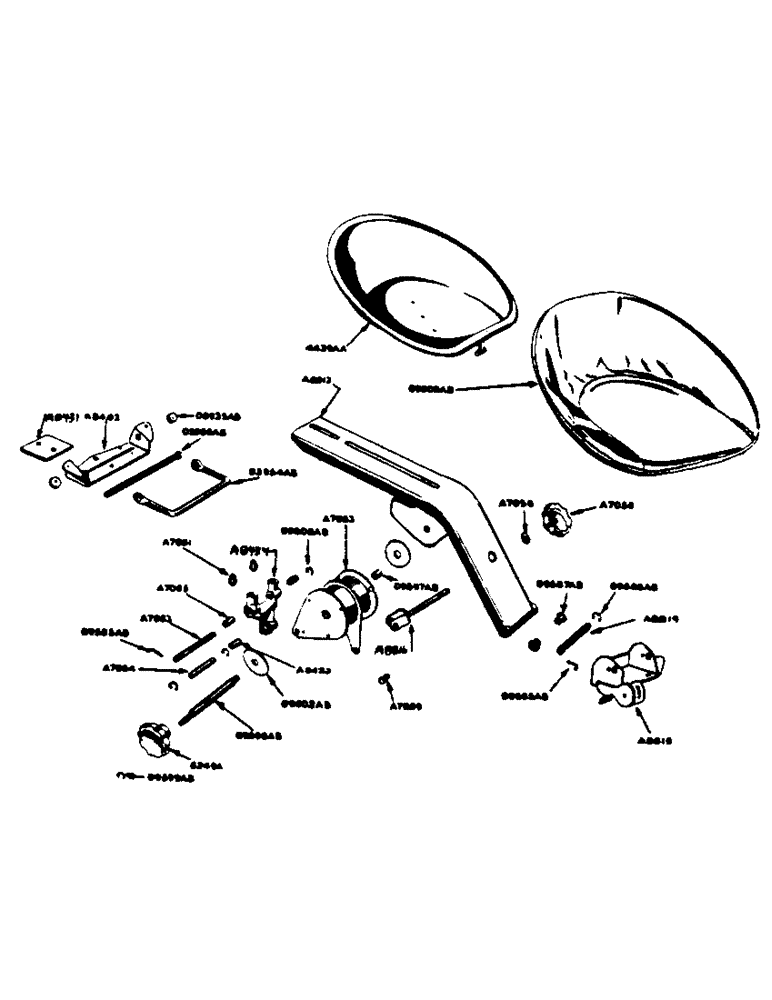

Схема запчастей Case IH 500-SERIES - (098) - CASE, COMFORT, SEAT (09) - CHASSIS

Артикул

Название

Примечание

Количество

A7053

SPRING

- rubber torsion, and side arm assembly

1шт.

A7056

NUT

- hand wheel, to adjust seat spring

1шт.

A7058

BUSHING

WASHER - seat spring adjusting nut

1шт.

A7059

PIN - seat spring mounting adjusting rod

1шт.

3/32" x 3/4" cotter pin

1шт.

A7061

BUMPER

- seat, on A8434 link

2шт.

A7063

PIN - seat mounting support link, upper

1шт.

A7064

FRAME

PIN - seat mounting support link, lower

1шт.

A7065

BUSHING

- upper, for A8434 support link

2шт.

A8402

BRACKET - seat rear support

1шт.

A8431

PLATE - seat channel reinforcement

1шт.

A8433

BUSHING - lower, for A8434 support link

2шт.

A8434

LINK - seat mounting support, with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings

1шт.

A8812

CHANNEl - seat, with O9587AB bushings

1шт.

A8816

BRACKET - seat channel and throttle lever

1шт.

5/8" x 1-1/4" N.C. hex bolt w/lockwasher

2шт.

3/4" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

3/8" plain washer (Spacer under bracket)

2шт.

A8818

ROD AND YOKE END - seat spring adjusting

1шт.

A8819

PIN - pivot, seat channel

1шт.

6249A

NUT - hand wheel, to adjust seat mounting

1шт.

4439AA

SEAT - operators

1шт.

1/2" x 1-1/2" N.F. hex hd. bolt w/nut

2шт.

1/2" ext.-int. tooth Shakeproof lockwasher #4024-3200

2шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

1/2" N.F., light castellated nut

1шт.

3/32" x 7/8" cotter pin

2шт.

O6935AB

X

BUMPER - seat support

2шт.

No. 10 x 3/4" rhd. mach. screw w/hex nut and lockwasher

2шт.

O9585AB

X

LOCK - for A7063 and A8819 pins

2шт.

O9586AB

X

SNAP RING - retaining, seat channel pivot pin

1шт.

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

O9598AB

X

BOLT - pivot, seat mounting

1шт.

1/2" N.F. hex jam nut w/lockwasher

1шт.

O9599AB

X

"E" RING - retaining, for O9598AB pivot bolt

1шт.

O9602AB

X

DISC - friction, for torsion spring assembly

2шт.

O9608AB

X

RING - retaining, for A7063 and A7064 link pins

3шт.

O9609AB

CUSHION - seat

1шт.

Выбрано товаров: 39
