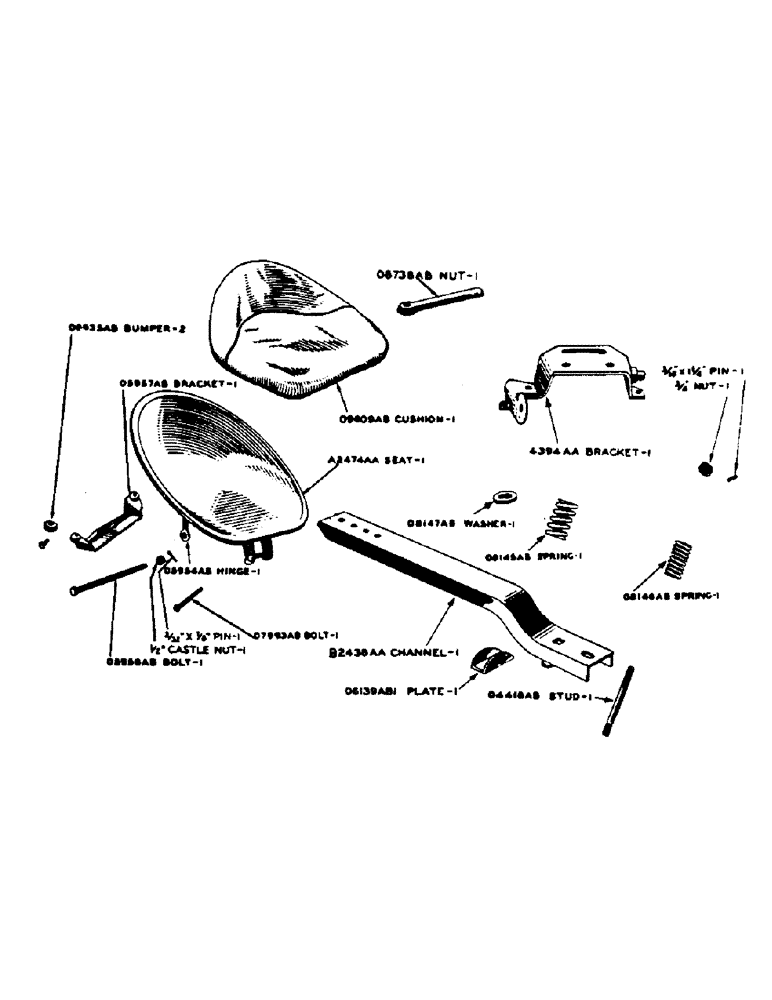

Запчасти Case IH 500-SERIES (097) - STANDARD OPERATORS SEAT (09) - CHASSIS

O4418AB

STUD - seat spring

1шт.

3/4" hex nut, light, N.F. thrd.

1шт.

3/16" x 1-1/4" cotter pin

1шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

1/2" castle nut, light, N.F. thrd.

1шт.

3/32" x 7/8" cotter pin

1шт.

O5957AB

BRACKET - seat rear support

1шт.

1/2" x 1" hex hd. cap screw, N.F. thrd., with nut and lockwasher

2шт.

O6139AB1

PLATE - seat channel bearing

1шт.

O6935AB

X

BUMPER - seat rear support

2шт.

No. 10 x 3/4" rd. hd. mach. screw, with nut and lockwasher

2шт.

O7993AB

BOLT - seat front support bracket

1шт.

3/8" castle nut, light, N.F. thrd.

1шт.

3/32" x 7/8" cotter pin

1шт.

O8145AB

SPRING

- seat, outside

1шт.

O8146AB

SPRING - seat, inside

1шт.

O8147AB

WASHER

- seat spring retainer

1шт.

O8738AB

NUT - seat mounting handle

1шт.

1/2" x 1" mach. bolt, less nut

1шт.

1/2" plain washer

1шт.

O9609AB

CUSHION - seat

1шт.

B2438AA

CHANNEL - seat

1шт.

A2474AA

SEAT - operators

1шт.

4394AA

BRACKET - operators seat mounting, with spark and throttle hand lever support and PTO clutch hand lever mounting pin

1шт.

5/8" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

5/8" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.
