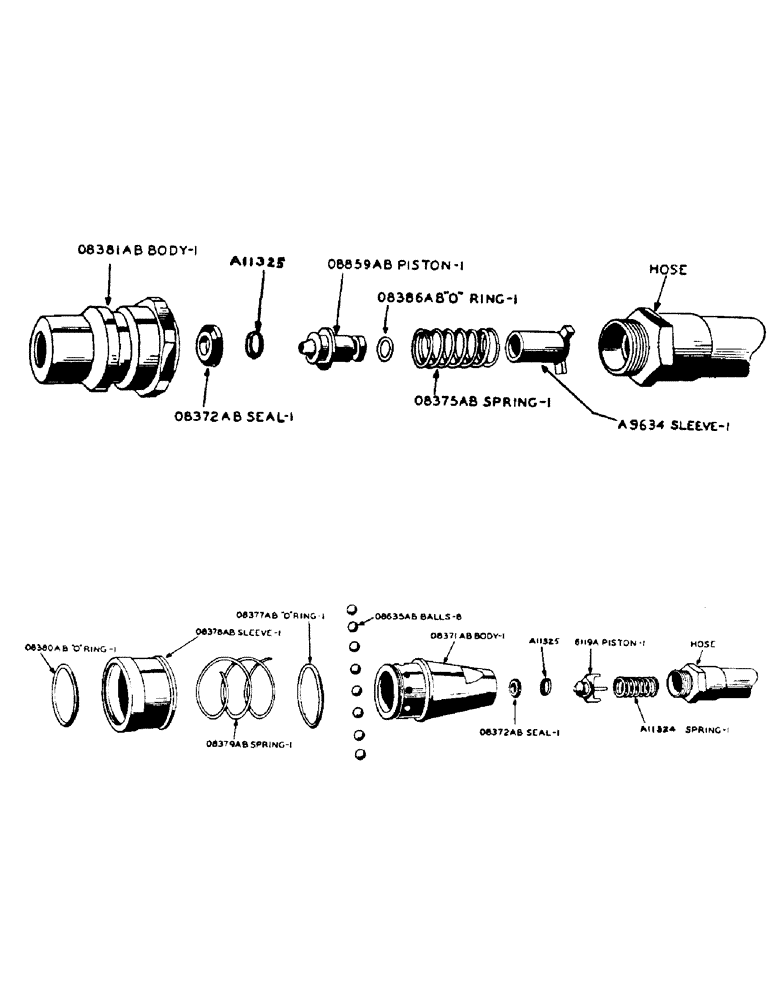

Запчасти Case IH 500-SERIES (115) - HYDRAULIC CONTROL UNIT (08) - HYDRAULICS

A9634

SLEEVE

- coupling plug piston

1шт.

A11325

X

RETAINER - seal

1шт.

4025AA

X

PLUG - break-away self sealing, assembly

2шт.

O8372AB

X

SEAL - piston

1шт.

O8375AB

X

SPRING - piston

1шт.

O8381AB

X

BODY - male plug coupling

1шт.

O8386AB

X

"O" RING - piston sleeve

1шт.

O8859AB

X

PISTON - coupling plug

1шт.

A11324

SPRING

- coupling piston, 4026AA break-away self-sealing

1шт.

A11325

X

RETAINER - seal 4026AA break-away self-sealing couplings

1шт.

6119A

X

PISTON - socket 4026AA break-away self-sealing couplings

1шт.

4026AA

X

SOCKET - break-away self-sealing coupling assembly

4шт.

O8371AB

BODY - female coupling socket 4026AA break-away self-sealing

1шт.

O8372AB

X

SEAL - piston 4026AA break-away self-sealing couplings

1шт.

O8377AB

X

"O" RING - socket body 4026AA break-away self-sealing couplings

1шт.

O8378AB

X

SLEEVE - ball retaining 4026AA break-away self-sealing couplings

1шт.

O8379AB

X

SPRING - ball retaining sleeve 4026AA break-away self-sealing couplings

1шт.

O8380AB

X

SNAP RING - socket rubber 4026AA break-away self-sealing couplings

1шт.

O8635AB

X

BALL - socket locking 4026AA break-away self-sealing couplings

8шт.
