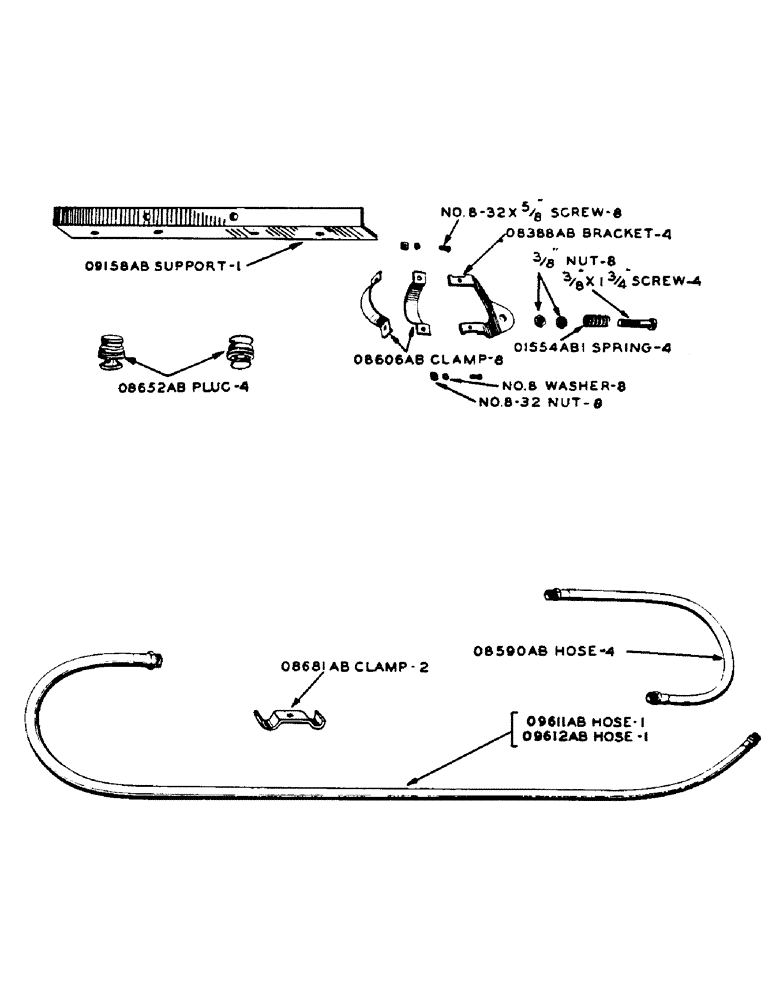

Запчасти Case IH 500-SERIES (114) - HYDRAULIC CONTROL UNIT, BRACKET FOR BREAK-AWAY COUPLING (08) - HYDRAULICS

O1554AB1

X

SPRING - mounting bracket

4шт.

O8388AB

X

BRACKET - break-away coupling mounting

4шт.

3/8" x 1-3/4" hex hd. cap screw, N.F. thrd.

4шт.

3/8" hex jam nut, light, N.F. thrd.

8шт.

O8606AB

X

CLAMP - break-away coupling mounting

8шт.

No. 8 - 32 x 5/8" rd. hd. mach. screw, with nut and lockwasher

8шт.

O8652AB

X

PLUG - dust, break-away coupling

4шт.

O9158AB

SUPPORT - break-away coupling mounting bracket

1шт.

3/8" x 1" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

2шт.

A8204

HOSE - cylinder to coupling (60" long), for portable

1шт.

A8205

HOSE - cylinder to coupling (94" long), for portable

1шт.

O8590AB

HOSE - hydraulic valve to coupling plug (1/2" I.D. x 18" long), for portable cylinder

4шт.

O8681AB

X

CLAMP - double hose, for portable cylinder

2шт.

5/16" x 3/4" hex hd. cap screw, N.F. thrd., with nut and lockwasher

1шт.

O9611AB

X

HOSE - coupling to portable cylinder, front. (1/2" I.D. x 92" long)

1шт.

O9612AB

HOSE - coupling to portable cylinder, rear (1/2" I.D. x 104" long)

1шт.
