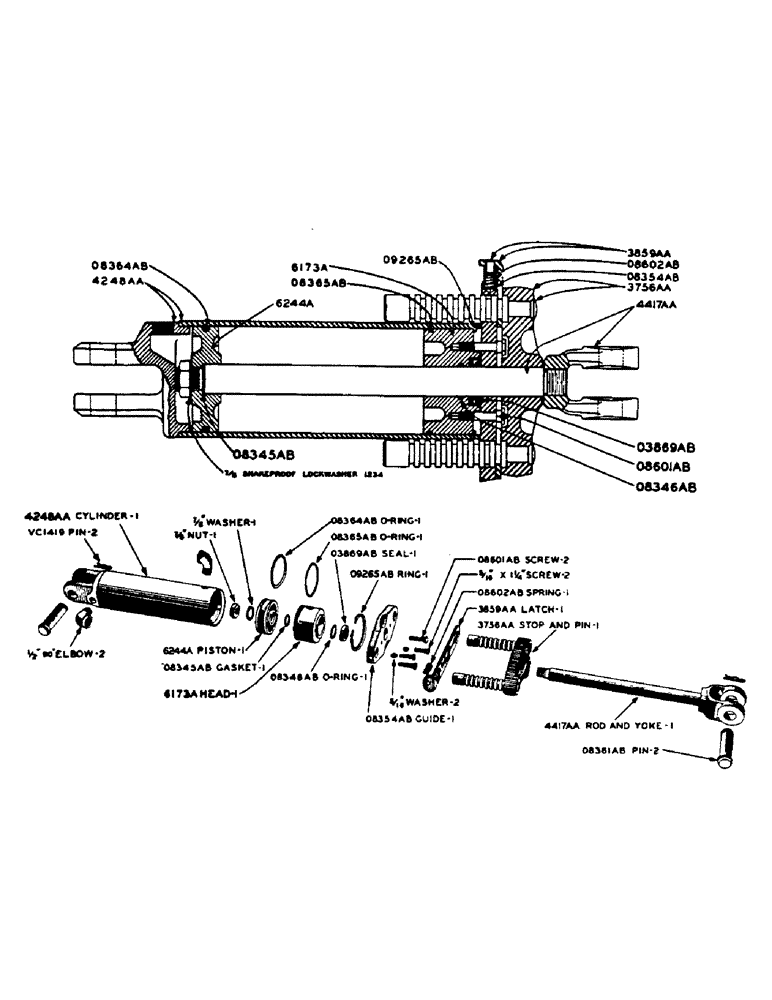

Запчасти Case IH 500-SERIES (113) - HYDRAULIC CONTROL UNIT, PORTABLE CYLINDER, 4 INCH X 8 INCH (08) - HYDRAULICS

6046A

CAP - cylinder. Use 4248AA

1шт.

6173A

HEAD - cylinder, inner

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

6244A

X

PISTON

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8345AB

X

GASKET - piston

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

5/16" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8316AB

PIN - cylinder yoke

2шт.

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8365AB

X

"O" RING - cylinder head

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8601AB

X

SCREW - limit stop latch

2шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

5/16" Shakeproof lockwasher, no. 1218-4

2шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O8602AB

X

SPRING - limit stop latch

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

O9265AB

X

SNAP RING - cylinder collar

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

VC1419

X

SPRING - cylinder yoke pin retainer

2шт.

3756AA

STOP - limit, with pins for cylinder

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

B3847AA

CYLINDER - 4" x 8" hydraulic portable, complete Includes: P/N's 6173A, 6244A, 03869AB, 08345AB, 08346AB, 08354AB, 08364AB, 08365AB, 08601AB, 08602AB, 09265AB, 3756AA, 3859AA, 4248AA, 4417AA

1шт.

3859AA

X

LATCH - cylinder limit stop

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

4248AA

CYLINDER AND CAP

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

1/2" - 90 degree street elbow

2шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

4417AA

ROD AND YOKE - piston

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

7/8" hex nut, light, N.F. thrd.

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.

7/8" Shakeproof lockwasher, type 12, no. 1234

1шт.

Part of Hydraulic Portable Cylinder complete B3847AA

1шт.
