Запчасти Case IH 500-SERIES (112) - HYDRAULIC CONTROL UNIT, HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

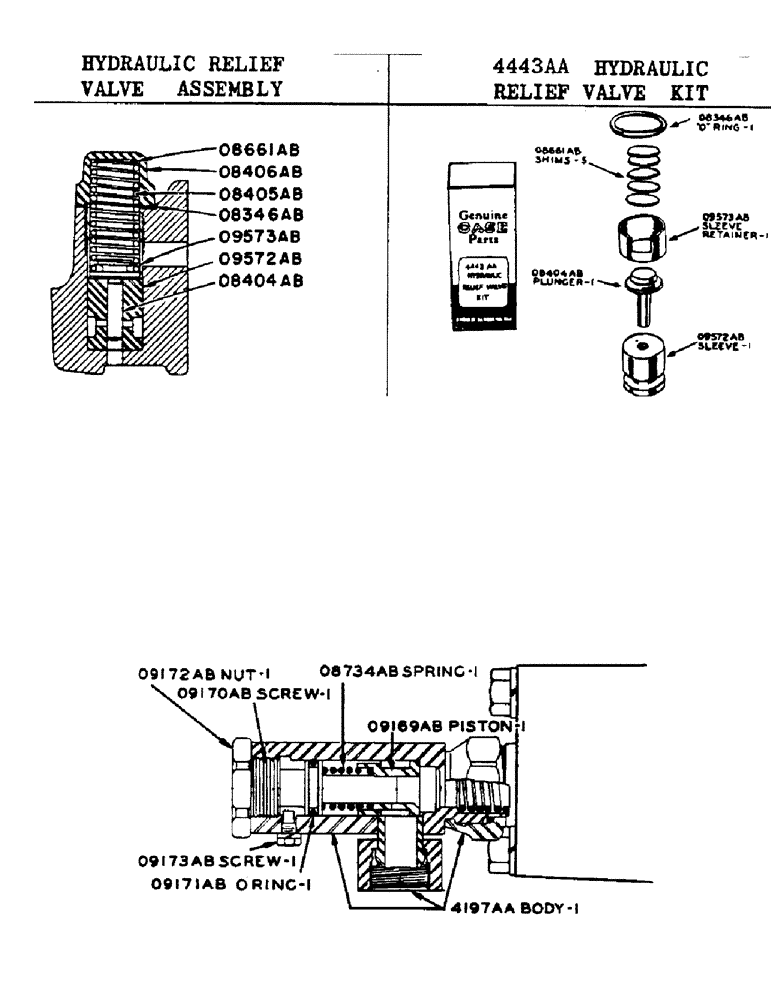

Схема запчастей Case IH 500-SERIES - (112) - HYDRAULIC CONTROL UNIT, HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

O8346AB

X

"O" RING - relief valve nut

1шт.

O8404AB

PLUNGER

- relief valve

1шт.

O8405AB

SPRING

- relief valve

1шт.

O8406AB

NUT - relief valve

1шт.

O8661AB

X

SHIM - relief valve

5шт.

O9572AB

SLEEVE

- relief valve

1шт.

O9573AB

RETAINER

- relief valve sleeve

1шт.

4443AA

KIT

- service parts (Consists of 1 - O8404AB plunger, 1 - O9572AB sleeve, 1 - O9573AB sleeve retainer, 5 - O8661AB shim and 1 - O8346AB "o" ring)

1шт.

O8734AB

X

SPRING - cylinder speed regulator

1шт.

O9169AB

X

PISTON - cylinder speed regulator

1шт.

O9170AB

X

SCREW - cylinder speed regulator

1шт.

O9171AB

X

"O" RING - cylinder speed regulator screw

1шт.

O9172AB

X

NUT - cylinder speed regulator screw

1шт.

O9173AB

X

SCREW - stop, cylinder speed regulator

1шт.

No. 8 std. light lockwasher

1шт.

4197AA

X

BODY AND SWIVEL - speed regulator, cyl

1шт.

4198AA

X

REGULATOR - hydraulic cylinder speed

1шт.

Выбрано товаров: 17
