Запчасти Case IH 500-SERIES (107) - HYDRAULIC PUMP WITH NEEDLE BEARINGS, 20 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

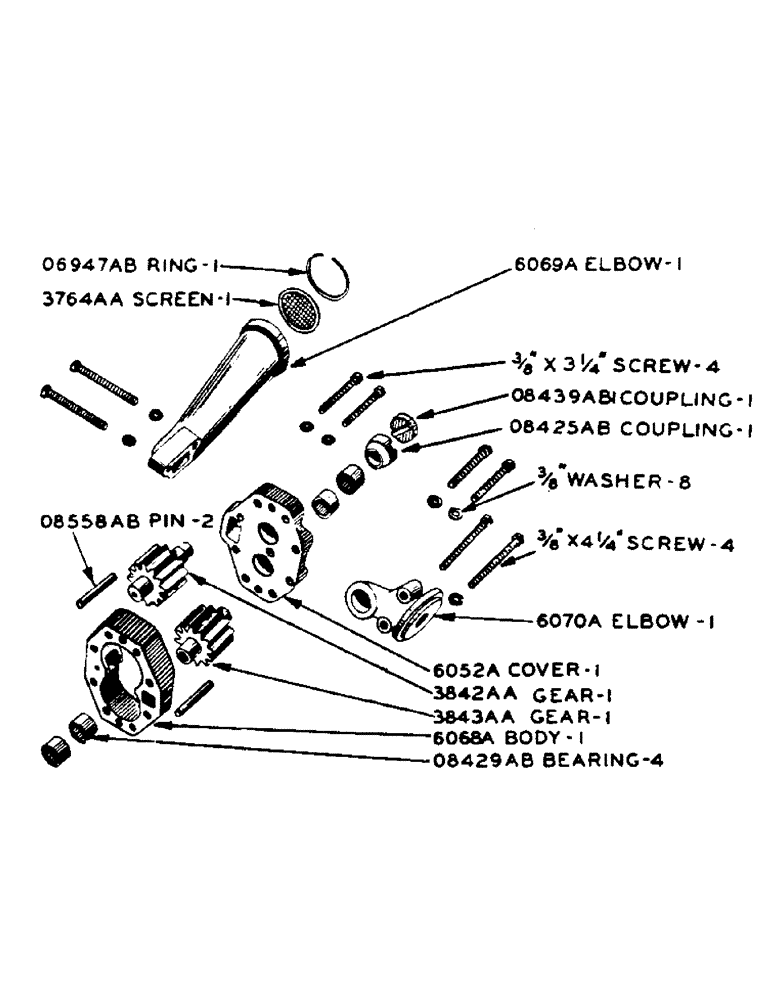

Схема запчастей Case IH 500-SERIES - (107) - HYDRAULIC PUMP WITH NEEDLE BEARINGS, 20 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

6052A

COVER - hydraulic pump body

1шт.

3/8" x 3-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

6068A

X

BODY - hydraulic pump

1шт.

6069A

ELBOW - hydraulic pump inlet

1шт.

3/8" x 4-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

6070A

ELBOW - hydraulic pump filter

1шт.

3/8" x 4-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - hydraulic pump shaft (Torrington no. GB-1412X)

4шт.

O8439AB1

X

COUPLING - hydraulic pump drive

1шт.

O8558AB

PIN - dowel, hydraulic pump body

2шт.

O8901AB1

PLATE - oil deflector, hydraulic pump outlet

1шт.

3764AA

X

SCREEN ASSEMBLY - hydraulic pump intake

1шт.

3842AA

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

3843AA

IDLER GEAR AND SHAFT - hydraulic pump

1шт.

Выбрано товаров: 16
