Запчасти Case IH 460 (200) - DRAWBARS & HITCHES, TEL-A-DEPTH VALVE, CONTROLS, ROCKSHAFT DRIVE UNIT AND CONNECTIONS Drawbar & Hitches

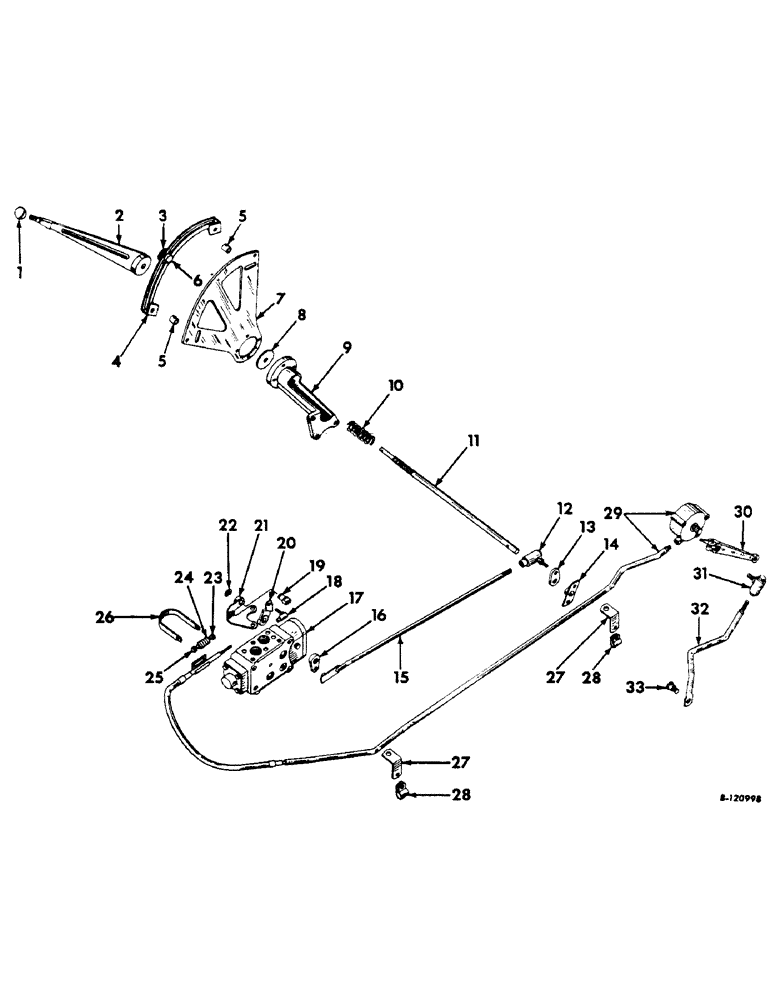

Схема запчастей Case IH 460 - (200) - DRAWBARS & HITCHES, TEL-A-DEPTH VALVE, CONTROLS, ROCKSHAFT DRIVE UNIT AND CONNECTIONS Drawbar & Hitches
31
3
2
7
23
28
15
9
27
11
20
5
24
16
10
18
6
27
25
14
4
22
28
13
21
12
8
26
32
17
1
33
5
29
30
19

Артикул

Название

Примечание

Количество

1

371602R1

KNOB

BALL, Tel-A-Depth handle

1шт.

2

371404R11

HANDLE

ASSEMBLY, Tel-A-Depth

1шт.

*

PIN, 3/16 x 2" heavy duty spirol

1шт.

3

371600R2

HANDLE

KNOB, adjustable stop pin

1шт.

4

371403R11

SPARE PART ASSEMBLY, Tel-A-Depth handle

1шт.

*

SCREW, 1/4 x 1/2" cd-pltd. hex-hd. cap

2шт.

5

371598R1

SPARE PART STOP, Tel-A-Depth handle

2шт.

*

SCREW, 1/4 NF x 1/2" hex-hd. cap

2шт.

6

371599R2

LARGE PIN

PIN, LARGE Adjustable stop

1шт.

7

371402R11

SPARE PART ASSEMBLY, quadrant support

1шт.

*

SCREW, 1/2 x 1/2" hex-hd. cap

4шт.

8

371601R1

SPARE PART DISC, friction

1шт.

9

371408R1

SPARE PART Quadrant

1шт.

*

NUT, 3/8"

3шт.

*

SCREW, 3/8 x 1" hex-hd. cap

3шт.

*

WASHER, 3/8" lock

3шт.

10

371603R1

Spring, Touch Control Friction

1шт.

11

371767R1

ROD

SHAFT, Tel-A-Depth rear lever

1шт.

*

NUT, 1/2" NF jam

2шт.

*

WASHER, 11/32 x 1-1/16" x .095

1шт.

12

371607R91

JOINT

JOINT, Tel-A-Depth valve actuating rod

1шт.

*

NUT, 3/8" NF jam

2шт.

13

371768R1

SPARE PART Tel-A-Depth rear

1шт.

*

364436R1

PIN,3/16" x 1", Coiled

3/16" x 1", Coiled

1шт.

14

371595R91

SPARE PART ASSEMBLY, Tel-A-Depth shaft

1шт.

*

SCREW, 5/16 x 1/2" hex-hd. cap

2шт.

15

371769R11

SPARE PART ASSEMBLY, Tel-A-Depth valve actuating

1шт.

16

371770R2

SPARE PART Tel-A-Depth valve actuating

1шт.

17

371138R92

SPARE PART ASSEMBLY, Tel-A-Depth (For components see list of parts under details of "Tel-A-Depth Valve")

1шт.

*

SCREW, 7/16 x 6-3/4" hex-hd. cap

4шт.

*

WASHER, 7/16" lock

4шт.

18

371617R91

SPARE PART Follow up lever

1шт.

*

NUT, No. 10 NF

2шт.

19

372696R1

SPARE PART Conduit pivot

1шт.

*

SCREW, 5/16 NF x 1/2" hex-hd. cap

1шт.

*

WASHER, 11/32 x 11/16" x .065

1шт.

20

371521R1

SPARE PART Tel-A-Depth valve follow up

1шт.

*

PIN, 5/32 x 7/8" spirol

1шт.

21

371771R11

SPARE PART ASSEMBLY, conduit pivot shaft

1шт.

*

SCREW, 3/8 x 5/8" hex-hd. cap

2шт.

22

370290R1

SNAP RING,#50, .392" Dia, E-Type

Retaining, , conduit pivot shaft #50, .392" Dia, E-Type

1шт.

23

371716R1

SPARE PART Follow up lever boot small

1шт.

24

371614R1

SPARE PART Follow up lever

1шт.

25

371717R1

SPARE PART Follow up lever boot large

1шт.

26

372647R1

SPARE PART Conduit cable

1шт.

27

367529R1

SPARE PART BRACKET, conduit support

2шт.

28

372407R1

SPARE PART Conduit support rear

2шт.

*

NUT, 1/4"

2шт.

*

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

29

372856R92

SPARE PART UNIT, rockshaft drive (For components see list of parts under details of "Rockshaft Drive Unit")

1шт.

*

SCREW, 1/4 x 1-7/8" hex-hd. cap

3шт.

30

371605R2

LEVER

Rockshaft drive unit compensator

1шт.

*

NUT, 1/4" NF

1шт.

*

SCREW, 1/4 NF x 1-1/8" hex-hd. cap

1шт.

*

WASHER, 1/4" lock

1шт.

31

371607R91

JOINT

BALL, compensator rod

1шт.

*

NUT, 3/8" NF jam

2шт.

32

372573R1

SPARE PART Rockshaft drive unit compensator

1шт.

33

372572R1

SPARE PART SCREW, compensator rod shoulder

1шт.

Выбрано товаров: 59
