Запчасти Case IH 460 (199) - DRAWBARS & HITCHES, ROCKSHAFT, LEVELING LINKS, HYDRAULIC CYLINDER & CONNECTIONS Drawbar & Hitches

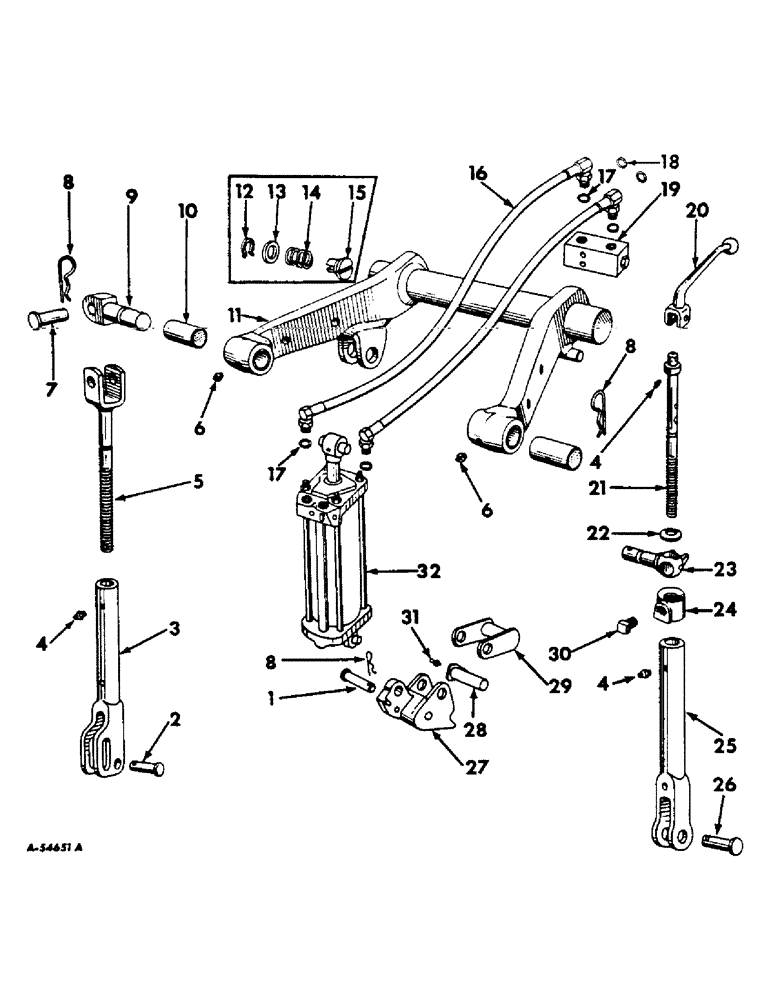

Схема запчастей Case IH 460 - (199) - DRAWBARS & HITCHES, ROCKSHAFT, LEVELING LINKS, HYDRAULIC CYLINDER & CONNECTIONS Drawbar & Hitches
32
6
18
31
15
21
14
25
10
2
7
4
19
8
1
9
12
22
4
23
17
29
27
24
20
8
4
11
28
6
13
17
8
26
16
30
5
3

Артикул

Название

Примечание

Количество

1

523114R1

PIN,19.05mm OD x 93.66mm L

Drawbar lock-out

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

2

PO28401

HEADED PIN,3/4" x 2 1/16"

LH leveling screw housing

1шт.

520175R1

CLIP

PIN, quick-attachable

1шт.

WASHER, 13/16 x 1-1/2" x 10 ga.

1шт.

3

372899R1

SPARE PART LH leveling screw

1шт.

4

102647H

FITTING, 1/4" NF straight lubrication (Optional w/110146R91)

3шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

(Optional w/102647H)

3шт.

5

372898R11

SPARE PART SCREW ASSEMBLY, LH leveling

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

1/4" x 7/8", Slotted

1шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

(Optional w/109461)

2шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

(Optional w/138322H) 1/8"-27 x .66 lg

2шт.

7

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

Lift link clevis

1шт.

8

520175R1

CLIP

Quick-attachable

2шт.

9

523090R1

PIN

EYEBOLT, LH rockshaft arm

1шт.

PIN, 1/4 x 1-3/4" self-opening cotter

1шт.

Q3482

WASHER

1-5/32 x 1-3/4" x 11 ga.

1шт.

10

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

Rockshaft arm

2шт.

11

523095R93

SPARE PART ASSEMBLY (Used only on tractors with Cable Type follow-up system) (Composed of -

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

523094R2

ARM (NSS)

2шт.

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

2шт.

522828R1

CLEVIS (NSS)

1шт.

526206R2

SPARE PART

1шт.

526207R1

SPARE PART

1шт.

523091R1

LUG

1шт.

526208R2

SPARE PART

1шт.

526219R1

RING

1шт.

526212R1

ROCKSHAFT (NSS)

1шт.

526209R1

SPARE PART

1шт.

526207R1

SPARE PART Rockshaft coupling

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

374705R1

SPARE PART SHIM, rockshaft

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

11

374916R91

SPARE PART ROCKSHAFT W/TWO BUSHINGS, 523092R1 Assembly (Used only on tractors with Linkage Type follow-up system)

1шт.

12

526219R1

RING

Snap-in rockshaft

1шт.

Used only in Rockshaft, 523095R93

1шт.

13

526208R2

SPARE PART RETAINER, plunger spring-in rockshaft

1шт.

Used only in Rockshaft, 523095R93

1шт.

14

526209R1

SPARE PART Plunger-in rockshaft

1шт.

Used only in Rockshaft, 523095R93

1шт.

15

526206R2

SPARE PART Rockshaft

1шт.

Used only in Rockshaft, 523095R93

1шт.

16

371798R91

HOSE,12.7mm ID x 542.92mm L, SAE 100R1

Hydraulic cylinder (1/2 ID x 21-3/8" long)

2шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Hydraulic cylinder hose (3/4 x 15/16 x 3/32")

4шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Check valve (5/8 x 13/16 x 3/32")

2шт.

19

370965R92

SPARE PART ASSEMBLY, check (Single acting) (For components see list of parts under details of "Check Valve") (Note) (Order Package, 374174R91) International 460 Series, Serial Range: 501-3801

1шт.

19

374083R91

VALVE

ASSEMBLY, check (Double acting) (For components see list of parts under details of "Check Valve") International 460 Series 3802 up

1шт.

SCREW, 3/8NF x 3-1/4" hex-hd. cap

2шт.

20

523861R1

GRIP

HANDLE, leveling screw

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

5/16" x 1 1/2", Slotted

1шт.

21

372900R11

SPARE PART SCREW ASSEMBLY, RH leveling

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

1/4" x 7/8", Slotted

1шт.

22

522850R1

WASHER

WASHER, leveling screw pivot

1шт.

23

523863R1

PIVOT

EYEBOLT, leveling screw pivot

1шт.

Q3482

WASHER

15/32 x 1-3/4" x 11 ga.

1шт.

24

522816R1

COLLAR

Vertical float lock out

1шт.

25

372901R1

SPARE PART HOUSING, RH leveling screw

1шт.

26

PO28401

HEADED PIN,3/4" x 2 1/16"

RH leveling screw housing

1шт.

PIN, 3/16 x 1-1/8 cotter

1шт.

WASHER, 13/16 x 1-1/2" x 10 ga.

1шт.

27

523145R3

SPARE PART BELLCRANK, cylinder

1шт.

28

523137R91

SPARE PART SHAFT ASSEMBLY, traction control pivot

1шт.

377889R1

BOLT, 1/4 x 1/2" hex-hd mach

1шт.

29

372896R91

SPARE PART ASSEMBLY, cylinder bellcrank

1шт.

30

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

5/8 x 1" cone-pt. sq-hd. set

1шт.

31

110161

FITTING, 3/16" straight drive type lubrication (Optional with 125617)

1шт.

31

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (Optional with 110161)

1шт.

32

371208R92

CYLINDER

ASSEMBLY, hydraulic (3-1/2 x 8") (For components see list of parts under details of "Hydraulic Cylinders")

1шт.

374174R91

PACKAGE

Check valve service (Will work for 370965R92) International 460 Series 501 to 3801 (Consists of -

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9410360

PLUG

1шт.

374083R91

VALVE

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Rear junction block plug (3/4 x 15/16 x 3/32")

2шт.

9410360

PLUG

Rear junction block

2шт.
