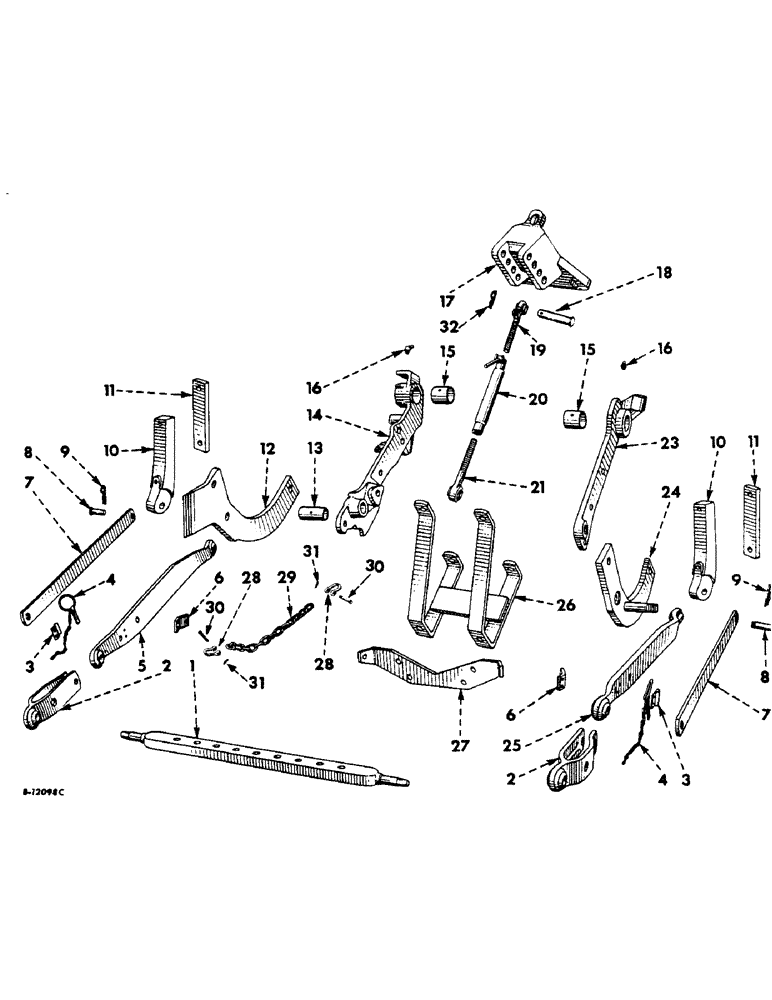

Запчасти Case IH 460 (198) - DRAWBARS & HITCHES, BEAM COUPLINGS, DRAWBAR, SIDEPLATES & CONNECTIONS Drawbar & Hitches

ATTACHMENT, Industrial Three-Point Hitch with Tel-A-Depth (375032R91) (For tractors with Hydraulic Power Supply)

1шт.

1

370799R2

SPARE PART DRAWBAR

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

2

373246R91

SPARE PART ASSEMBLY, beam coupling

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

NUT, 5/8"

2шт.

NUT, 7/8"

2шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

2шт.

SCREW, 7/8 x 3-1/4" hex-hd. cap

2шт.

WASHER, 5/8" lock

2шт.

WASHER, 7/8" lock

2шт.

3

372895R1

SPARE PART CLIP, drawbar pin storage

2шт.

4

372485R91

SPARE PART PIN ASSEMBLY, drawbar

2шт.

5

372890R91

SPARE PART ASSEMBLY, LH beam (Has Riveted Chain Bracket and Drawbar Pin Storage Clip) (Order Bracket, 372894R1, Clip, 372895R1, Coupling, 372893R92, two Nuts, 103025 and two Screws, 64768R1)

1шт.

5

372892R92

SPARE PART COUPLING ASSEMBLY, LH beam

1шт.

6

372894R1

SPARE PART BRACKET, restraining chain rear

2шт.

NUT, 5/16" NF

4шт.

64768R1

SCREW, 5/16 NF x 1-1/2" hex-hd. cap

4шт.

7

373039R1

SPARE PART STABILIZER (Note A)

2шт.

8

PO28401

HEADED PIN,3/4" x 2 1/16"

Stabilizer (3/4 x 2-1/16" headed)

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

9

520175R1

CLIP

PIN, quick attachable, cotter

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

10

373037R1

SPARE PART Stabilizer

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

11

373038R3

SPARE PART Stabilizer bracket retaining (For service on 373038R2, also order attaching parts)

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

NUT, 1/2"

4шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

SCREW, 1/2 x 8-1/4" hex-hd cap

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

374592R2

SPARE PART SCREW, 1/2 x 9" hex-hd cap

2шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

WASHER, 1/2" lock

4шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

12

372886R11

SPARE PART PLATE ASSEMBLY, beam coupling, LH

1шт.

NUT, 3/4"

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

1шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap

1шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

1шт.

WASHER, 3/4" lock

1шт.

WASHER, 3/4" external-tooth lock

3шт.

WASHER, 13/16 x 2" x .148

1шт.

13

522705R1

BUSHING,28.63mm ID x 31.85mm OD x 53.98mm L

Traction control, pivot

1шт.

14

523689R31

SPARE PART PLATE W/BUSHING, 522705R1 and Bushing, 523708R1 Assembly, LH side rockshaft

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

WASHER, 13/16 x 2" x .148

2шт.

WASHER, 3/4" external tooth lock

3шт.

15

523708R1

BUSHING,54.41mm ID x 57.56mm OD x 50.8mm L

Rockshaft bearing

2шт.

16

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

Lubrication, 65 degree elbow, 1/8" (Optional with 109460)

2шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

(Optional with 271284)

2шт.

17

372889R1

SPARE PART Upper link attaching

1шт.

SCREW, 1/2 x 3-1/2" hex-hd. cap

1шт.

SCREW, 5/8 x 1-7/8" hex-hd. cap

3шт.

WASHER, 1/2" lock

1шт.

WASHER, 5/8" lock

3шт.

18

Q1238

HEADED PIN,3/4" x 3 1/2"

Upper link attaching bracket (Also order Pin, 520175R1)

1шт.

19

372954R11

SPARE PART LINK ASSEMBLY, LH thread upper

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

1/4" x 7/8", Slotted

1шт.

20

372953R11

SPARE PART ASSEMBLY, upper link

1шт.

21

372955R11

SPARE PART LINK ASSEMBLY, RH thread upper

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

1/4" x 7/8", Slotted

1шт.

23

522762R31

SPARE PART PLATE W/BUSHING, 523708R1 Assembly, RH side rockshaft

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

1шт.

WASHER, 3/4" lock

1шт.

24

372887R11

SPARE PART ASSEMBLY, RH beam coupling

1шт.

NUT, 3/4"

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

1шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap

1шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

1шт.

WASHER, 3/4" lock

1шт.

WASHER, 3/4" external tooth lock

3шт.

WASHER, 13/16 x 2" x .148

1шт.

25

372891R91

SPARE PART ASSEMBLY, RH beam (Has Riveted Chain Bracket and Drawbar Pin Storage Clip) (Order Bracket, 372894R1, Clip, 372895R1, Coupling, 372892R92, two Nuts, 103025 and two Screws, 64768R1)

1шт.

25

372893R92

SPARE PART COUPLING ASSEMBLY, RH beam

1шт.

26

372902R11

SPARE PART ASSEMBLY, restraining chain front bracket (Tractors without Power Take-Off)

1шт.

130310H

SPARE PART SCREW, 1/2 x 1-5/8" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

27

372904R1

SPARE PART Restraining chain front

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 1-3/8" hex-hd. cap

2шт.

364333R1

BOLT

SCREW, 1/2 x 1-1/2" hex-hd. cap

2шт.

WASHER, 1/2" lock

2шт.

28

374434R1

CLEVIS

SHACKLE, restraining chain

4шт.

29

373301R1

CHAIN (AG)

Restraining

2шт.

30

374435R1

PIN

Restraining chain shackle

4шт.

31

374436R1

SPARE PART Shackle pin cotter

4шт.

32

520175R1

CLIP

Quick attachable cotter

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

Implement

1шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

374398R91

SPARE PART PACKAGE, Three-Point Industrial Hitch Conversion (Used to convert tractors with Two or Three-Point Fast-Hitch to Three-Point Industrial Hitch) (Consists of Ref. Nos. 3 thru 6, 12, 17, 18, 24 thru 31 including attaching parts and -

1шт.

Parts must also be ordered when Package is used on Tractors with Independent Power Take-Off without provisions for mounting Belt Pulley.

1шт.

372896R91

SPARE PART

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

3шт.

372899R1

SPARE PART

1шт.

372901R1

SPARE PART HOUSING

1шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

2шт.

NLS

NO LONGER SERVICED

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

1/4" x 7/8", Slotted

2шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

1шт.

520175R1

CLIP

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

1шт.

372898R11

SPARE PART SCREW ASSEMBLY

1шт.

372900R11

SPARE PART SCREW ASSEMBLY

1шт.

NLS

NO LONGER SERVICED

1шт.

364708R2

SPARE PART

1шт.

364713R1

AXLE PIN

BOLT

3шт.

359054R2

GASKET

1шт.

360154R1

GASKET

1шт.

364712R12

SHIELD

1шт.
