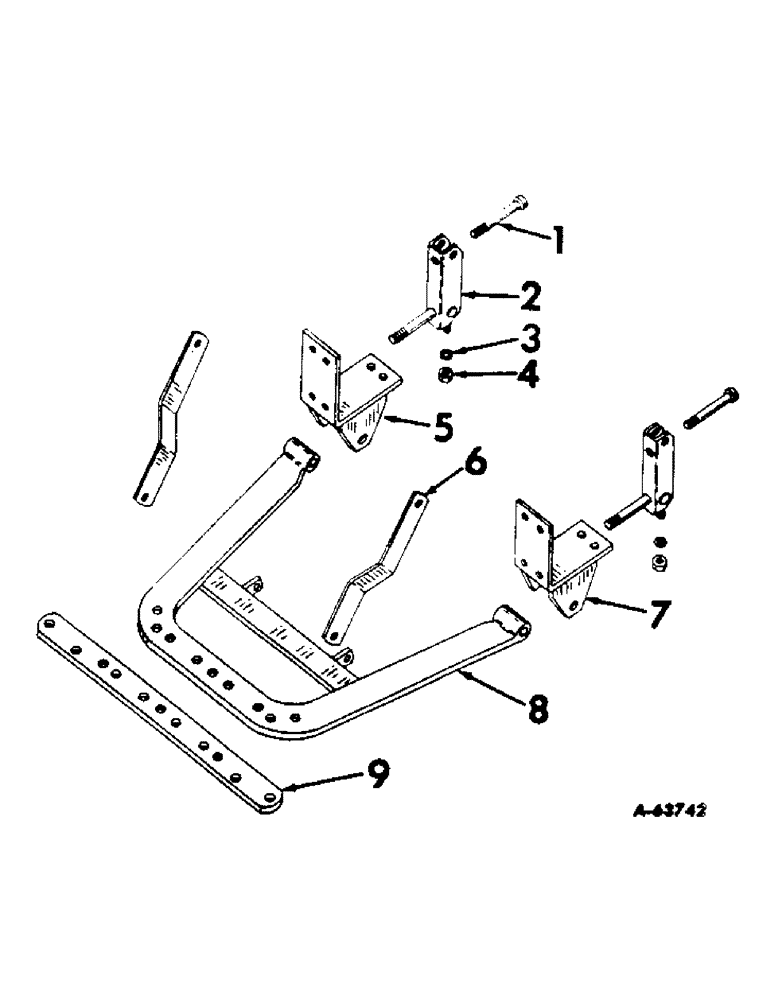

Запчасти Case IH 460 (197) - DRAWBARS & HITCHES, FIXED DRAWBAR, INTERNATIONAL 460 SERIES GROVE TRACTORS Drawbar & Hitches

1

43685D

BOLT

Drawbar attaching

2шт.

NUT, 3/4NF

4шт.

2

377482R11

SPARE PART ASSEMBLY, drawbar attaching

1шт.

3

Q1552

WASHER

Drawbar eyebolt

2шт.

4

357790R1

NUT

Drawbar eyebolt

2шт.

5

377485R91

SUPPORT ASSEMBLY, drawbar bracket LH

1шт.

NUT, 7/8NF

1шт.

SCREW, 7/8NF x 4-3/4" cap

1шт.

6

377481R1

SPARE PART Drawbar

2шт.

NUT, 3/4NF

2шт.

SCREW, 3/4NF x 1-3/4" cap

2шт.

SCREW, 3/4 x 1-1/2" cap

2шт.

7

377486R91

SUPPORT ASSEMBLY, drawbar bracket RH

1шт.

NUT, 7/8NF

1шт.

SCREW, 7/8NF x 4-3/4" cap

1шт.

8

377478R11

SPARE PART ASSEMBLY

1шт.

9

57657D

SPARE PART BRACE, drawbar support

1шт.
