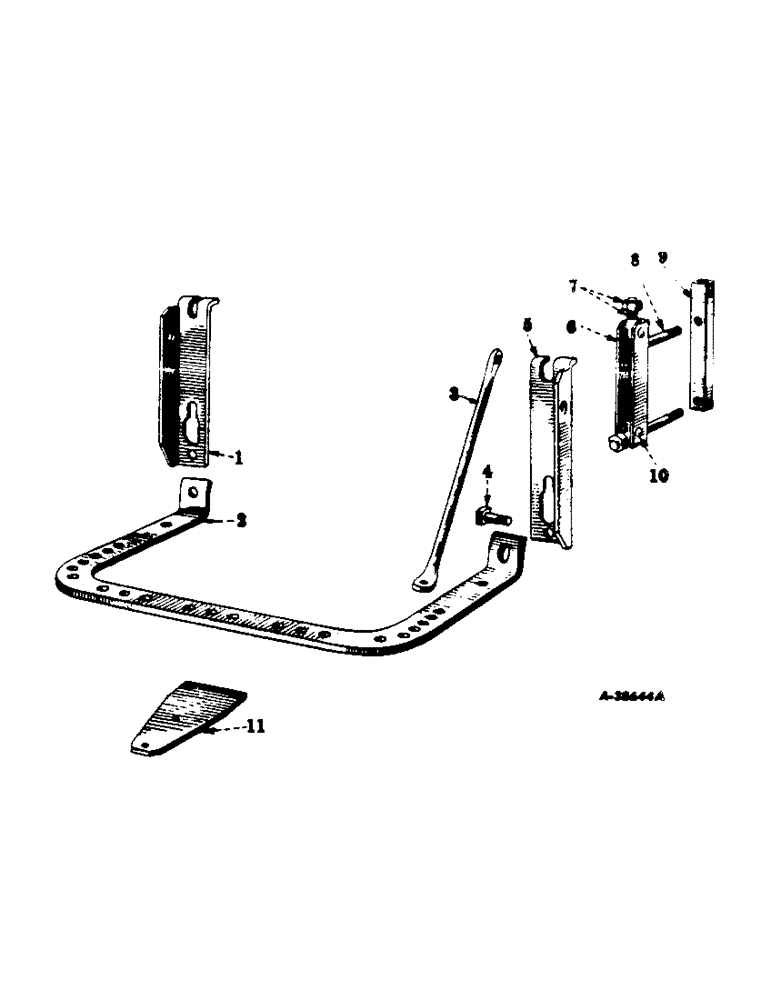

Запчасти Case IH 460 (196) - DRAWBARS & HITCHES, FIXED DRAWBAR, INTERNATIONAL 460 SERIES Drawbar & Hitches

1

363990R1

SPARE PART Drawbar LH

1шт.

2

57227DB

SPARE PART DRAWBAR

1шт.

3

363992R1

SPARE PART Drawbar

2шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap

2шт.

SCREW, 3/4 x 1-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

Drawbar pivot

2шт.

NUT, 3/4"

2шт.

WASHER, 3/4" lock

2шт.

5

363991R1

SPARE PART Drawbar RH

1шт.

6

51716DXB

CHANNEL

ASSEMBLY, drawbar attaching (Composed of -

2шт.

43685D

BOLT

2шт.

51716D

CHANNEL (NSS)

1шт.

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT

2шт.

43690D

PIN

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT ASSEMBLY, drawbar

4шт.

357790R1

NUT

Drawbar eyebolt

4шт.

Q1552

WASHER

25/32 x 1-1/4" x 10 ga.

4шт.

8

43685D

BOLT

Drawbar attaching

4шт.

NUT, 3/4" NF

4шт.

WASHER, 3/4" lock

4шт.

9

51715DA

SPARE PART CLAMP, drawbar attaching

2шт.

10

43690D

PIN

Drawbar attaching channel

4шт.

11

66426D

SPARE PART PLATE, drawbar extension (Provides standardized power take-off hitch for tractors equipped with Independent or Transmission Driven Power Take-Off)

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.
