Запчасти Case IH 460 (191) - DRAWBARS & HITCHES, SWINGING DRAWBAR, INTERNATIONAL 460 SERIES GROVE TRACTORS Drawbar & Hitches

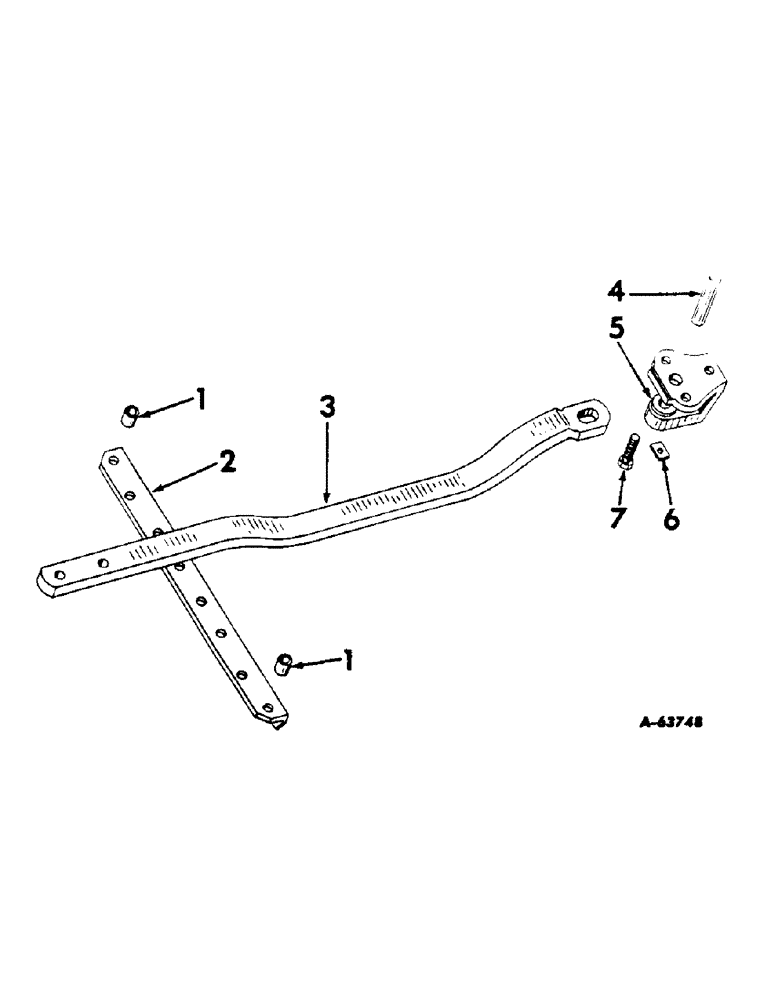

Схема запчастей Case IH 460 - (191) - DRAWBARS & HITCHES, SWINGING DRAWBAR, INTERNATIONAL 460 SERIES GROVE TRACTORS Drawbar & Hitches
1
5
6
2
4
7
1
3

Артикул

Название

Примечание

Количество

377595R91

SPARE PART ATTACHMENT, swinging drawbar

1шт.

1

58656D

SPARE PART Swinging drawbar guide

2шт.

2

57659D

SPARE PART Swinging drawbar guide

2шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 3-1/2" cap

2шт.

WASHER, 3/4" lock

2шт.

3

377596R1

SPARE PART Swinging

1шт.

4

57654D

PIVOT PIN

Swinging drawbar pivot

1шт.

5

8785DA

SUPPORT

Swinging drawbar

1шт.

6

57655D

PLATE

Swinging drawbar pivot pin lock

1шт.

SCREW, 3/8 x 3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

7

374336R1

BOLT,Hex, 3/4" - 10 x 1 7/8", Gr 2

Swinging drawbar pivot support

3шт.

WASHER, 3/4" lock

3шт.

Выбрано товаров: 14
