Запчасти Case IH 460 (152) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, TRACTORS W/28" REAR WHEEL, INTERNATIONAL 460 SERIES (11) - WHEELS

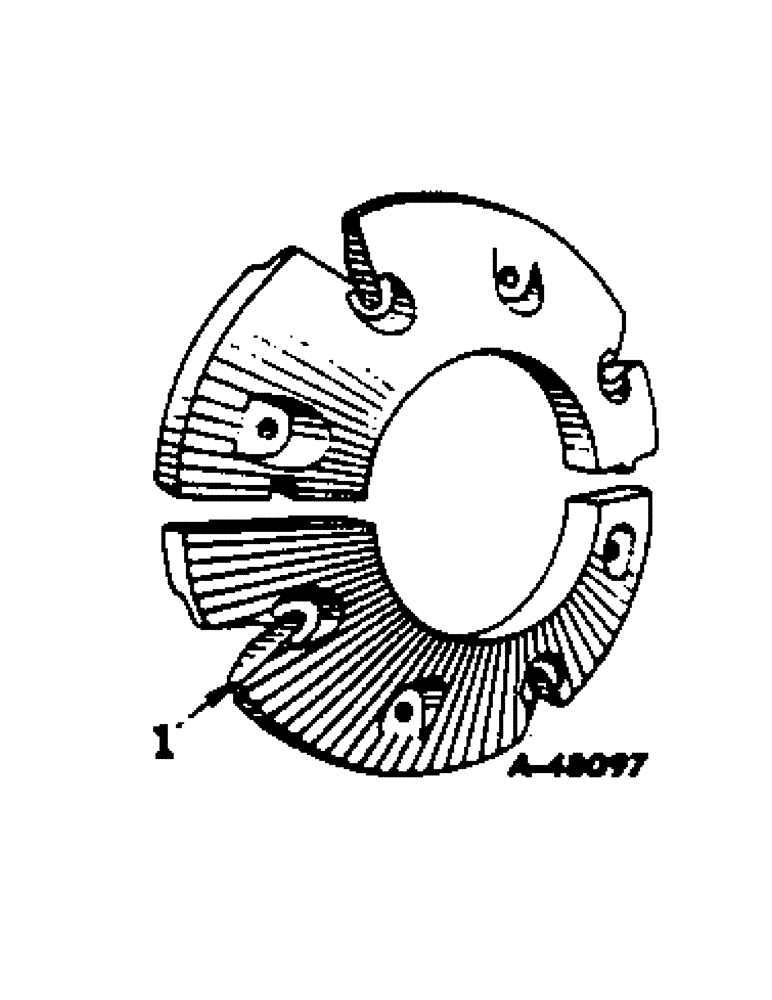

Схема запчастей Case IH 460 - (152) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, TRACTORS W/28" REAR WHEEL, INTERNATIONAL 460 SERIES (11) - WHEELS
1

Артикул

Название

Примечание

Количество

a

ATTACHMENT, split type rear wheel weight (first set) (365319R92)

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

ATTACHMENT, split type rear wheel weight (second set) (365320R92)

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

365321R2

WEIGHT

Rear wheel-half, approx. 65 lbs., 4 for Unit A

1шт.

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

Rear wheel weight

8шт.

NUT, 5/8" cd-pltd.

8шт.

NUT, 5/8" cd-pltd. jam

8шт.

WASHER, 5/8" cd-pltd. lock

16шт.

1

365321R2

WEIGHT

Rear wheel-half, approx. 65 lbs., (4 for Unit B)

1шт.

365332R2

SQUARE BOLT

BOLT rear wheel weight

8шт.

NUT, 5/8" cd-pltd.

8шт.

NUT, 5/8" cd-pltd. jam

8шт.

WASHER, 5/8" cd-pltd. lock

8шт.

111883

SPARE PART

1шт.

Выбрано товаров: 15
