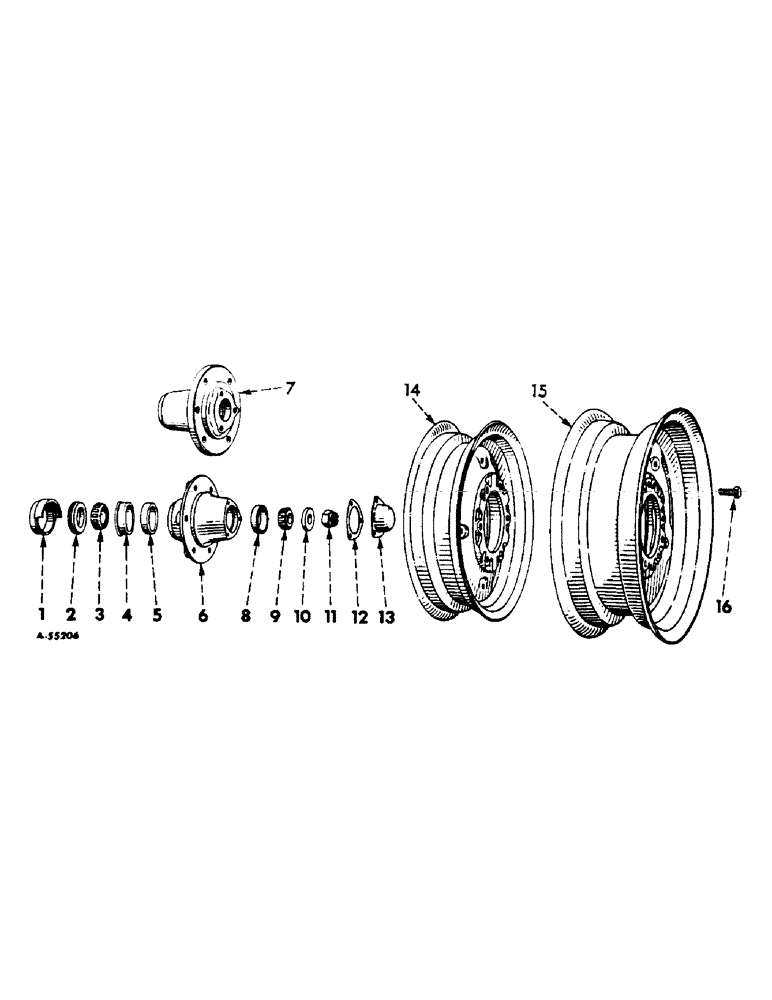

Запчасти Case IH 460 (142) - WHEELS, FRONT WHEELS, INTERNATIONAL 460 SERIES (11) - WHEELS

a

Service parts for tractors equipped with standard front axle

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

Service parts for tractors equipped with heavy duty front axle

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

48541D

SHIELD

Dust, front wheel (2 for Unit A)

1шт.

1

48701D

SHIELD

Dust, front wheel (2 for Unit B)

1шт.

2

48539DA

PACKING RING

SEAL oil, front wheel (2 for Unit A)

1шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

Oil, front wheel (2 for Unit A)

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

Front wheel inner bearing (2 for Unit A)

1шт.

3

G15215

ROLLER BEARING

Front wheel inner bearing (2 for Unit B)

1шт.

4

48548D

WASHER

Front wheel oil seal wear (2 for Unit A)

1шт.

4

48703D

RETAINER

Front wheel oil seal (2 for Unit B)

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner (2 for Unit A)

1шт.

5

619387R1

BEARING CUP

CUP front wheel inner bearing (2 for Unit B)

1шт.

6

369141R11

HUB

ASSEMBLY front wheel (2 for Unit A) Composed of

1шт.

371883R1

BEARING CUP

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

369141R1

HUB (NSS)

1шт.

48548D

WASHER

RING

1шт.

7

370256R21

HUB

ASSEMBLY front wheel (2 for Unit B) Composed of

1шт.

619387R1

BEARING CUP

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

370256R2

HUB (NSS)

1шт.

48703D

RETAINER

1шт.

8

371883R1

BEARING CUP

Front wheel outer bearing (2 for Unit A)

1шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer (2 for Unit B)

1шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Front wheel outer (2 for Unit A)

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

Front wheel outer bearing (2 for Unit B)

1шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

Front wheel outer bearing retainer (2 for Unit A)

1шт.

10

370255R1

WASHER

Front wheel outer bearing retainer (2 for Unit B)

1шт.

11

427639

SLOTTED NUT,3/4"-16, G5

3/4" sltd, front wheel outer bearing retainer (2 for Unit A)

1шт.

11

361138R1

NUT

Front wheel outer bearing retainer (2 for Unit B)

1шт.

PIN cotter, 5/32 x 1-3/8"

2шт.

12

369860R1

GASKET,0.79mm Thk

Front wheel hub cap

2шт.

13

369859R1

CAP

Front wheel hub

2шт.

SCREW cap, 5/16 x 5/8" hex-hd.

6шт.

WASHER lock, 5/16"

6шт.

14

361714R91

WHEEL ASSY.

Front, disc type 4.25 KA-16-DC rim for 5.00-16 or 6.00-16 tire, (2 for Unit A)

1шт.

14

370777R91

WHEEL ASSY.

Front, disc type 4.25 KA-16-DC rim for 5.50-16 or 6.00-16 tire (2 for Unit B)

1шт.

15

364343R92

WHEEL

Front, disc type 5.50 F-16-DC rim for 7.50-16 tire (2 for Unit A)

1шт.

16

51485D

BOLT,9/16" - 18 x 1 7/32"

Front wheel mounting

12шт.

371417R91

BEARING

PACKAGE, front wheel bearing overhaul, Consists of one each of Ref. 2 - 5, 7, 8 and 11 (2 for Unit A)

1шт.

371418R91

PACKAGE

Front wheel bearing overhaul, Consists of one each of Ref. 2 - 5, 7, 8 and 11 (2 for Unit B)

1шт.

371417R92

BEARING

KIT, applications: IH tractor models 460, 504, 544, 2504, 2544, 606, 2606, 656 and 2656, consists of the following seven parts

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

369860R1

GASKET,0.79mm Thk

1шт.

48539DA

PACKING RING

SEAL

1шт.

48548D

WASHER

1шт.

371418R92

BEARING SET,34.93mm ID x 77.79mm OD

KIT, applications: IH tractor models 460, 560, 660, 544, 644, 2544, 06 series, 56 series, 66 series, 86 series, 30 series and 50 series, consists of the following seven parts

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

G15215

ROLLER BEARING

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

619387R1

BEARING CUP

1шт.

369860R1

GASKET,0.79mm Thk

1шт.

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

1шт.

48703D

RETAINER

1шт.
