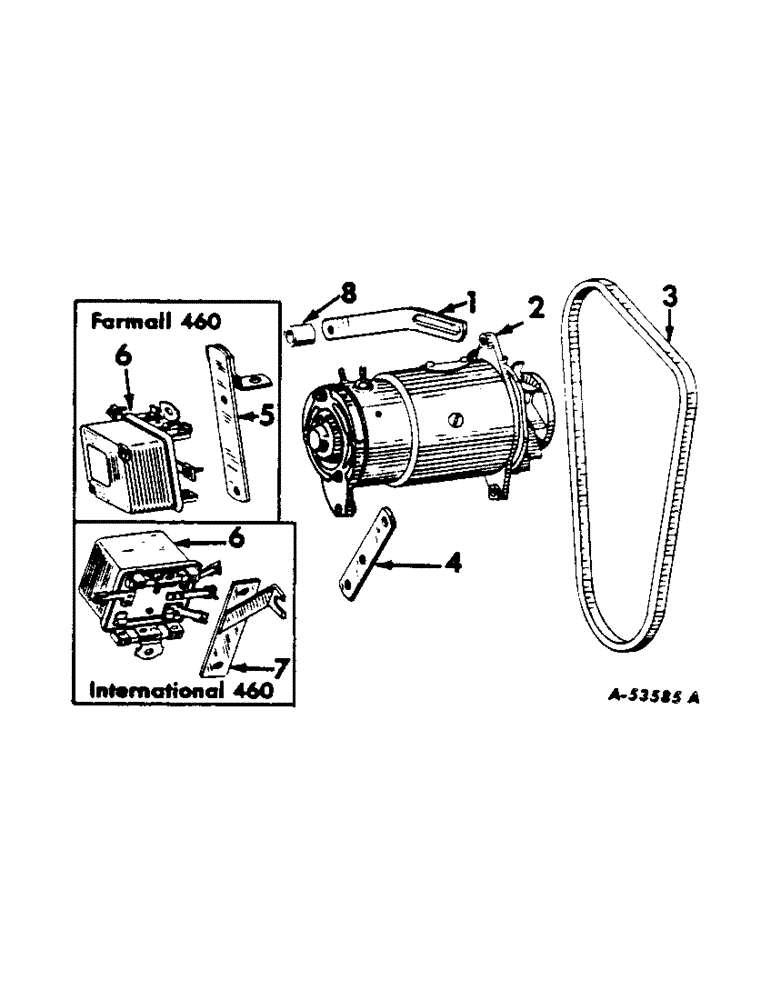

Запчасти Case IH 460 (067) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

367250R1

SPARE PART generator (Gasoline)

1шт.

.

SCREW, 3/8 x 2-3/4" hex-hd. cap

1шт.

.

WASHER, 3/8" lock

1шт.

1

371107R1

SUPPORT

generator (L.P. Gas)

1шт.

.

SCREW, 3/8 x 3-1/2" hex-hd. cap

1шт.

.

WASHER, 3/8" lock

1шт.

2

1100394

SPARE PART (Regular duty) (For components see list of parts under details of "Generator") (369599R92)

1шт.

2

104019A1R

REMAN-GENERATOR

Remanufactured, Generator, 12 volt 25 ampere

1шт.

2

104019A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 25 ampere

1шт.

2

1100391

(Heavy duty) (For components see list of parts under details of "Generator") (375053R91)

1шт.

2

104017A1R

REMAN-GENERATOR

Generator

1шт.

2

104017A1C

CORE-GENERATOR

Return Number

1шт.

.

NUT, 5/16"

1шт.

.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

.

SCREW, 5/16 x 1" hex-hd. cap

1шт.

.

SCREW, 5/16 x 1-1/8" hex-hd. cap

1шт.

.

WASHER, 5/16" lock

3шт.

.

WASHER, 11/32 x 11/16 x .065 ga

1шт.

3

403348R1

V-BELT,0.50" W x 46.00" L

Generator and water pump

1шт.

4

367661R1

SPARE PART generator

1шт.

.

SCREW, 5/16 x 1" hex-hd. cap

2шт.

.

WASHER, 5/16" lock

2шт.

5

370141R11

SPARE PART voltage regulator mounting (Gasoline)

1шт.

5

371656R11

SPARE PART voltage regulator and filter mounting (L.P. gas) (Illustrated with "Fuel Tank Supports and Piping")

1шт.

6

1118999

REGULATOR

voltage (For components see list of parts under details of " Voltage Regulator") (376122R91)

1шт.

.

SCREW, 1/4 NF x 1/2" hex-hd. cap

2шт.

.

WASHER, 1/4" lock

2шт.

7

369605R11

SPARE PART voltage regulator mounting

1шт.

8

371108R1

SPACER,3/8" Pipe x .844"

generator brace (L.P. gas)

1шт.
