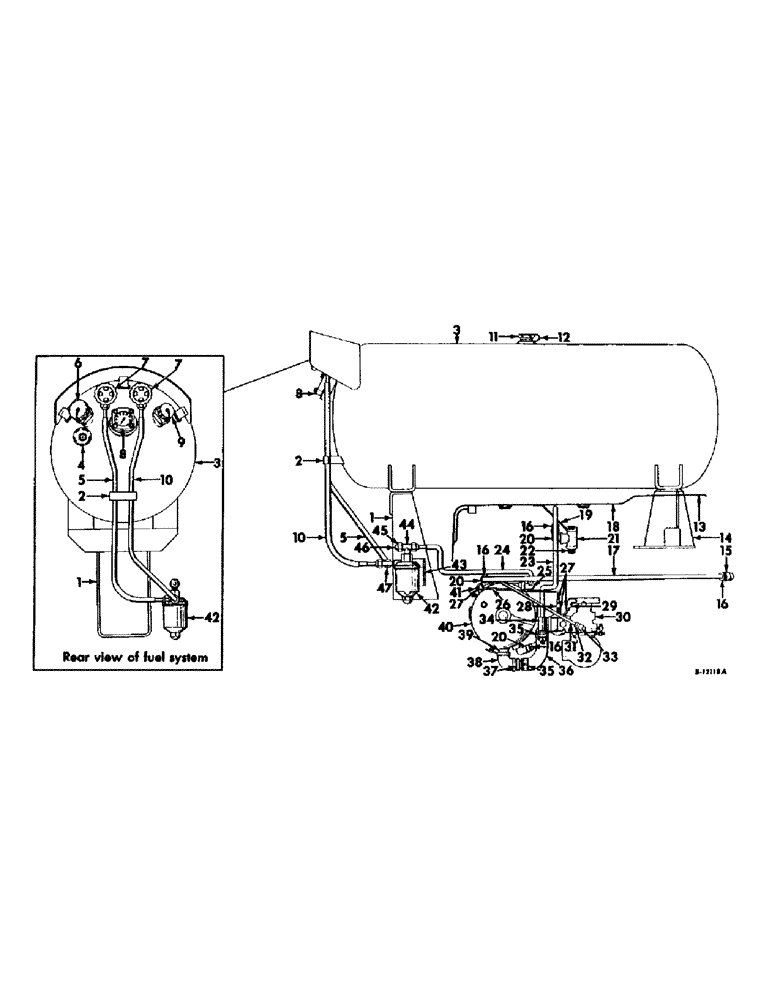

Запчасти Case IH 460 (037) - FUEL SYSTEM, FUEL TANK, SUPPORT AND PIPING, INTERNATIONAL 460 SERIES L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

1

371653R11

SPARE PART fuel tank support rear

1шт.

SCREW, 7/16 x 1-1/8" hex-hd. cap

4шт.

WASHER, 7/16" lock

4шт.

2

369511R1

CLAMP, fuel line

1шт.

SCREW, 1/4 x 5/8" hex-hd. cap

1шт.

3

371640R91

SPARE PART (Composed of -

1шт.

363692R1

SPARE PART

1шт.

363693R91

SPARE PART

1шт.

371708R91

SPARE PART

1шт.

109567R91

VALVE

1шт.

109850R91

VALVE

2шт.

363688R91

SPARE PART

1шт.

363690R91

SPARE PART

1шт.

TANK )

1шт.

NSS

1шт.

NUT, 7/16NF elastic stop

4шт.

SCREW, 7/16NF x 1-1/2" hex-hd. cap

4шт.

4

357068R91

SPARE PART GAGE, w/Dial, 369082R1, Keeper, 369083R1 and Valve and Disc Assembly 359830R91, fixed liquid level (Selwyn Pacific Co.) (Optional with 363693R91)

1шт.

4

363693R91

SPARE PART GAGE, w/Plate, 369049R1, Ring, 369050R1 and Stem Assembly, 369048R91, fixed liquid level (Bastian Blessing Co.) (Optional with 357068R91)

1шт.

5

371669R11

SPARE PART filter to vapor valve fuel

1шт.

6

363688R91

SPARE PART 3/4NPT filler (Bastian Blessing Co.) (Optional with 363687R91) (For components see list of parts under details of "Valves")

1шт.

6

363687R91

SPARE PART 3/4NPT filler (Selwyn Pacific Co.) (Optional with 363688R91) (For components see list of parts under details of "Valves")

1шт.

7

109850R91

VALVE W/HANDWHEEL and excess flow check service (For components see list of parts under details of "Valves")

2шт.

8

371708R91

SPARE PART 369381R91 and Gasket, 364263R1, liquid level magnetic

1шт.

SCREW, 5/16 x 7/8" fil-hd. cap (Rochester)

4шт.

SCREW, 5/16 x 1" fil-hd. cap (Taylor)

4шт.

8

364263R1

SPARE PART liquid level gage (Not illustrated) (Used with Gauge, 371708R91)

1шт.

8

369381R91

SPARE PART dial (Rochester) (Not illustrated) (Used with Gauge 371708R91)

1шт.

9

109567R91

VALVE, vapor return (Optional with 357064R92) (For components see list of parts under detail of "Valves")

1шт.

9

357064R92

SPARE PART vapor return (Optional with 109567R91) (For components see list of parts under detail of "Valves")

1шт.

10

371668R11

SPARE PART filter to liquid valve fuel

1шт.

11

363689R91

SPARE PART relief (Optional with 363690R91)

1шт.

11

363690R11

relief (Optional with 363689R91)

1шт.

12

363692R1

SPARE PART rain relief valve (Used with Valve, 363690R91)

1шт.

12

368363R1

PLUG, rain relief valve (Used with Valve, 363689R91)

1шт.

13

371683R11

SPARE PART RH front heat

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 7/16" hex-hd. cap

2шт.

SCREW, 5/16 x 1/2" hex-hd. cap

1шт.

WASHER, 9/32 x 5/8" x 16 ga.

2шт.

WASHER, 11/32 x 11/16" x 16 ga.

1шт.

14

371902R11

SPARE PART fuel tank RH front

1шт.

14

371899R11

SPARE PART fuel tank LH front (Not illustrated)

1шт.

SCREW, 7/16 x 1" hex-hd. cap

2шт.

SCREW, 7/16 x 1-3/4" hex-hd. cap

1шт.

WASHER, 7/16" lock

3шт.

15

19502R1

SPARE PART 45 degrees

1шт.

16

371217R1

NUT

coupling

4шт.

17

371106R11

SPARE PART LINE W/TWO NUTS, 371217R1, regulator to water pump

1шт.

18

371678R91

SPARE PART heat

1шт.

NUT, 5/16"

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

WASHER, 11/32 x 11/16" x 16 ga.

1шт.

19

371682R1

SPARE PART heat shield

1шт.

NUT, 5/16"

1шт.

SCREW, 5/16" hex-hd. cap

1шт.

WASHER, 5/16" lock

1шт.

20

68134D

SPARE PART 90 degrees 90º x 1/2" NPT x 11/16"-16

3шт.

21

138105

TEE,1/2" NPT, Fem

1/2" pipe

1шт.

22

144610

PIPE

1/2" close pipe

1шт.

REF: 22A PART # CHANGE TO 47396DAX40

1шт.

23

371105R11

SPARE PART LINE W/TWO NUTS, 371217R1, regulator to cylinder head water

1шт.

24

371662R11

SPARE PART LINE, regulator to filter fuel

1шт.

25

109563R1

ELBOW

ELBOW, 90 degree flared tube

1шт.

26

371104R11

SPARE PART LINE W/TWO NUTS, 371215R1, regulator to carburetor idle

1шт.

27

371215R1

SPARE PART NUT, coupling

4шт.

28

373191R91

SPARE PART TEE, 19272R1, w/Nut, 371215R1

1шт.

28

19272R1

TEE, 1/8" 90 degree two-way

1шт.

29

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

ELBOW, 1/8" 90 degrees

1шт.

30

371087R91

SPARE PART CARBURETOR ASSEMBLY (For components see list of parts under detail of "Carburetor")

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cap

2шт.

31

371103R11

SPARE PART LINE W/TWO NUTS, 369989R1, regulator to carburetor balance

1шт.

32

369989R1

NUT

NUT, coupling

2шт.

33

24874H

ELBOW, regulator to carburetor balance line

2шт.

34

188897R1

SPARE PART ELBOW, fuel hose

1шт.

35

39114H

CLAMP

CLAMP, fuel line hose

2шт.

36

371102R1

HOSE

HOSE, fuel line

1шт.

37

188902R1

SPARE PART NIPPLE, fuel hose

1шт.

38

119099

SPARE PART ELBOW, 3/4" 90 degree pipe 90º, 3/4" NPT

1шт.

39

128067

BOLT

NIPPLE, 3/4 x 1-1/2" pipe

1шт.

40

371099R91

SPARE PART REGULATOR ASSEMBLY, fuel (For components see list of parts under detail of "Regulator")

1шт.

SCREW, 5/16 x 1-1/8" hex-hd. cap

1шт.

SCREW, 5/16 x 1-1/2" hex-hd. cap

1шт.

WASHER, 5/16"

1шт.

41

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

ELBOW, regulator to carburetor idle line

1шт.

42

64147D

SPARE PART FILTER ASSEMBLY, fuel (For components see list of parts under detail of "Fuel Filter")

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

43

371659R1

SPARE PART BRACKET, filter mounting

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

44

364602R1

SPARE PART TEE, two-way flared tube

1шт.

45

357078R1

SPARE PART NUT, fuel line tee cap (Optional with 361533R1)

1шт.

45

361533R1

SPARE PART NUT, fuel line tee cap (Optional with 357078R1)

1шт.

46

357495R1

SPARE PART CAP, fuel line tee

1шт.

47

364598R1

SPARE PART TEE, two-way, flared tube

1шт.

369324R1

SPARE PART SPACER, L.P. gas fuel tank mounting (Not illustrated)

8шт.

86224H

SPACER,1/4" Pipe x 3/8"

Fuel regulator (Not Illustrated)

2шт.

371901R1

SPARE PART SPACER, fuel tank support LH front (Not illustrated)

1шт.
