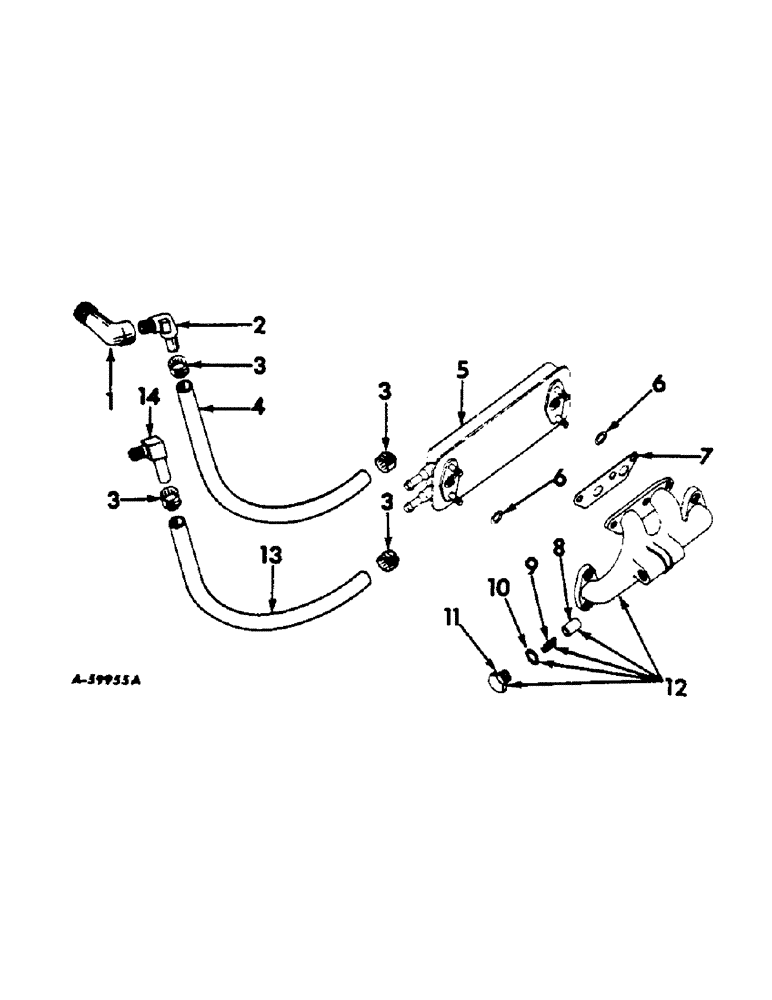

Запчасти Case IH 460 (053) - COOLING SYSTEM, DIESEL ENGINE OIL COOLER, INTERNATIONAL 460 SERIES COOLING SYSTEM

1

299446R1

SPARE PART oil cooler outlet pipe

1шт.

2

278089R1

FITTING

5/8 x 1/2"NPT x 45 degree hose

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

water hose

1шт.

4

305205R1

SPARE PART oil cooler water inlet (5/8" ID x 16-1/2" long)

1шт.

5

279212R91

COOLER ASSY.

engine oil (Optional with 304155R91)

1шт.

5

304155R91

COOLER

engine oil (Optional with 279212R91)

1шт.

5/16"

4шт.

WASHER, 5/16" lock

4шт.

6

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

oil cooler to manifold (3/4 x 1 x 1/8")

2шт.

7

304091R1

GASKET

oil cooler manifold

2шт.

7

304945R1

SPACER

SPARE PART oil cooler manifold

1шт.

8

251400R1

VALVE

oil cooler relief

1шт.

9

279163R1

SPRING

oil cooler relief valve

1шт.

10

251403R1

GASKET

relief valve plug

1шт.

11

251402R1

PLUG

relief valve

1шт.

12

279160R11

SPARE PART engine oil cooler

1шт.

PLUG, 1/4" sq-hd. pipe

2шт.

13

305206R1

HOSE

HOSE, oil cooler water outlet (5/8" ID x 13-3/4" long)

1шт.

14

171809R1

ELBOW UNION

Union Elbow 5/8 x 1/2" NPT x 90 degrees

1шт.
