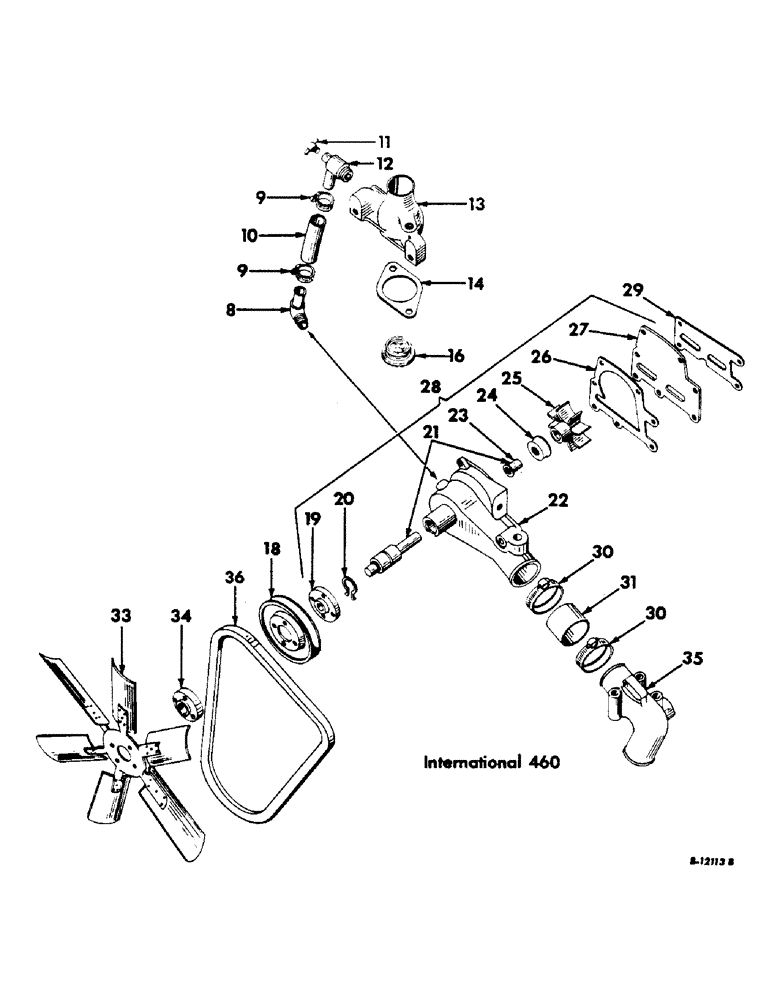

Запчасти Case IH 460 (051) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, DIESEL ENGINE TRACTORS COOLING SYSTEM

1

267450R91

SPARE PART fan (Optional with 371633R91)

1шт.

1

371633R91

FAN

fan (Optional with 267450R91)

1шт.

.

SCREW, 1/4 x 1/2" hex-hd. cap

4шт.

.

WASHER, 1/4" lock

4шт.

2

403348R1

V-BELT,0.50" W x 46.00" L

Fan

1шт.

3

368509R1

PULLEY

fan

1шт.

4

102069H

RING

bearing

1шт.

5

ST634

BEARING ASSY

1шт.

6

368508R1

ADJUSTER

HEIGHT fan pulley

1шт.

304016R1

BOLT (SPREADER)

fan adjuster

1шт.

.

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

264630R1

SPARE PART fan adjuster

2шт.

.

7/16" lock

2шт.

8

278089R1

FITTING

water pump by-pass hose

1шт.

9

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

water pump by-pass hose

2шт.

10

278807R1

TUBE

water pump by-pass

1шт.

11

538V

SPARE PART water pump by-pass valve

1шт.

12

303483R1

BASE

water pump by-pass

1шт.

13

306627R1

SPARE PART thermostat

1шт.

.

SCREW, 7/16 x 2-3/4" hex-hd. cap

2шт.

.

WASHER, 7/16" lock

2шт.

14

278280R1

GASKET

thermostat housing

1шт.

16

315838R91

CASE

(170 Degrees - 190 Degrees) (Will work for 310170R91)

1шт.

17

316250R1

BELT,0.50" W

Water pump and generator

1шт.

18

368502R1

PULLEY

water pump

1шт.

.

SCREW, 1/4 x 1/2" hex-hd. cap

4шт.

.

WASHER, 1/4" lock

4шт.

18

320143R91

SPARE PART water pump (International 460 Grove Tractors)

1шт.

19

368501R2

HUB CAP

pulley (For all tractors except "Grove" models)

1шт.

20

102069H

RING

1шт.

21

ST680

SHAFT

water pump

1шт.

21

ST644

SHAFT

water pump (International 460 Grove Tractors)

1шт.

22

318118R11

BODY

w/Plug Assembly, water pump

1шт.

.

PLUG, 3/8" short sq. socket pipe

1шт.

23

71351R1

SLINGER

water pump

1шт.

24

73296R92

SEAL

water pump

1шт.

25

356223R1

GEAR, RING

RING, GEAR water pump

1шт.

26

69674R1

GASKET

water pump plate

1шт.

27

69675R1

PLATE

water pump

1шт.

.

SCREW, 1/4 x 1/2" slt-pan-hd. mach

3шт.

28

318119R91

WATER PUMP

water (Composed of -

1шт.

28

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

28

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

ST680

SHAFT

1шт.

318118R11

BODY

1шт.

69674R1

GASKET

1шт.

368501R1

HUB

1шт.

356223R1

GEAR, RING

RING, GEAR

1шт.

69675R1

PLATE

1шт.

102069H

RING

1шт.

441444

SPARE PART

3шт.

73296R92

SEAL

1шт.

28

320145R91

SPARE PART water (International 460 Grove Tractors) (Composed of -

1шт.

ST644

SHAFT

1шт.

318118R11

BODY

1шт.

69674R1

GASKET

1шт.

356223R1

GEAR, RING

RING, GEAR

1шт.

69675R1

PLATE

1шт.

320143R91

SPARE PART

1шт.

102069H

RING

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

441444

SPARE PART

3шт.

73296R92

SEAL

1шт.

103321

LOCK WASHER,3/8"

3/8"

1шт.

.

SCREW, 3/8 x 2-1/4" cap

1шт.

.

SCREW, 3/8 x 2-1/2" cap

3шт.

.

WASHER, 3/8" lock

4шт.

29

69676R1

GASKET

water pump

1шт.

30

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

water pump inlet hose

2шт.

31

278281R1

HOSE

water pump inlet

1шт.

32

306626R1

SPARE PART water

1шт.

.

SCREW, 3/8 x 2-3/4" hex-hd. cap

3шт.

.

WASHER, 3/8" lock

3шт.

33

370700R91

BLADE

fan (International, Serial Range: 460-501-10536)

1шт.

.

SCREW, 1/4 x 1-1/2" hex-hd cap

4шт.

.

WASHER, 1/4" lock

4шт.

33

377367R91

FAN

BLADE ASSEMBLY, fan (International 460-10537 up)

1шт.

.

SCREW, 1/4 x 1-5/8" hex-hd cap

4шт.

.

WASHER, 1/4" lock

4шт.

34

369289R1

SPARE PART fan (International 460, Serial Range: 501-10536)

1шт.

34

316169R1

SPARE PART fan (International 460-10537 up)

1шт.

35

253668R1

SPARE PART water

1шт.

.

SCREW, 3/8 x 2-3/4" hex-hd. cap

3шт.

.

WASHER, 3/8" lock

3шт.

36

385738R1

V-BELT,0.50" W x 49.00" L

Water pump and generator

1шт.

254753R1

SEAL

thermostat (Used only with thermostat 310170R1) D-236, Serial Range: 501-9562

1шт.

374544R92

KIT

PACKAGE, water pump service (Consists of -

1шт.

69674R1

GASKET

1шт.

69676R1

GASKET

1шт.

356223R1

GEAR, RING

RING, GEAR

1шт.

102069H

RING

1шт.

73296R92

SEAL

1шт.

ST680

SHAFT

1шт.
