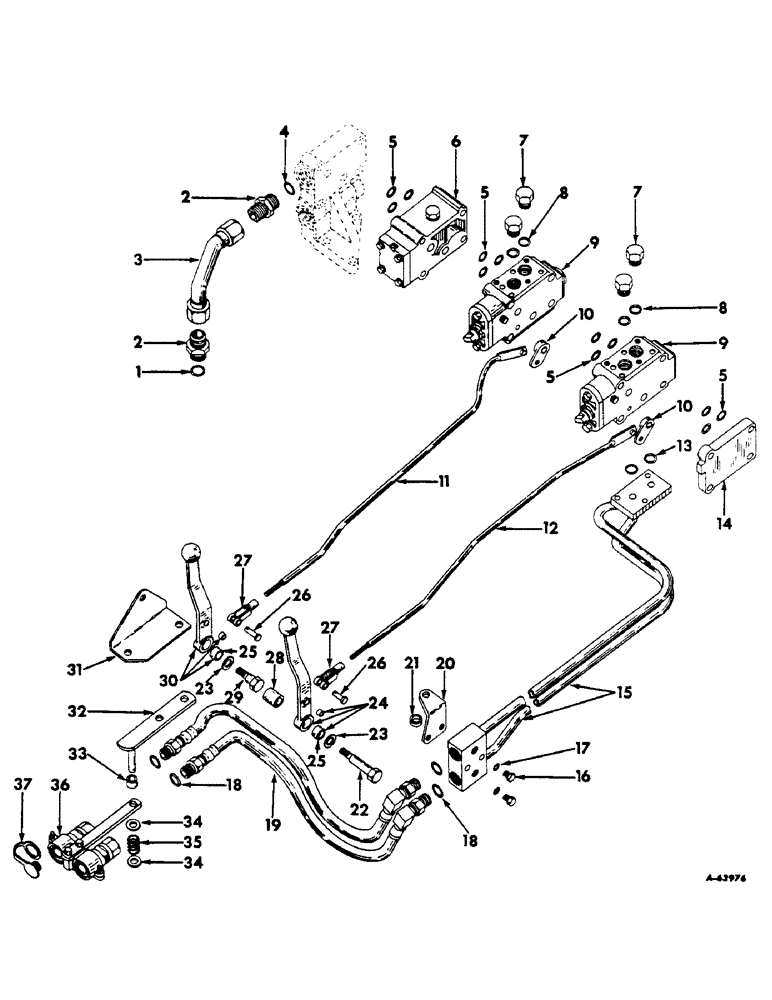

Запчасти Case IH 460 (165) - HYDRAULIC SYSTEM, HYDRA-TOUCH SYSTEM, INTERNATIONAL 460 SERIES GROVE TRACTORS W/HYDRA-TOUCH SUPPLY (07) - HYDRAULIC SYSTEM

a

377777R91

SPARE PART single valve Hydra-Touch system

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

377778R91

SPARE PART double valve Hydra-Touch System

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

(Units A and B)

1шт.

2

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(Units A and B)

2шт.

3

370582R11

SPARE PART (Units A and B)

1шт.

4

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

(Units A and B)

1шт.

5

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

(Unit A)

9шт.

5

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

(Unit B)

12шт.

6

360621R94

VALVE

(Units A and B)

1шт.

7

(Unit A)

2шт.

7

9410360

PLUG

(Unit B)

6шт.

8

(Unit A)

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Unit B)

6шт.

9

(Unit A)

1шт.

9

371062R92

SPARE PART (Unit B)

2шт.

10

(Unit A)

1шт.

10

361650R11

LEVER

(Unit B)

2шт.

11

377722R11

SPARE PART (Units A and B)

1шт.

12

377731R11

SPARE PART (Unit B)

1шт.

13

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

(Units A and B)

2шт.

14

370216R1

SPARE PART (Units A and B)

1шт.

15

377723R91

SPARE PART (Units A and B)

1шт.

16

9403330

PLUG,7/16"-20, 37 Degree

(Units A and B)

2шт.

17

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Units A and B)

2шт.

18

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

(Units A and B)

4шт.

19

372581R91

HOSE

(Units A and B)

1шт.

19

378347R91

SPARE PART (Units A and B)

1шт.

20

377726R1

SPARE PART (Units A and B)

1шт.

21

128644R1

(Units A and B)

1шт.

22

377730R1

SPARE PART (Unit B)

1шт.

23

10267H

(Units A and B)

1шт.

24

363107R11

SPARE PART (Unit B)

1шт.

25

(Unit A)

1шт.

25

363769R1

SPARE PART (Unit B)

2шт.

26

(Unit A)

1шт.

26

327-5094

CLEVIS PIN,5/16" x .940"

(Unit B)

2шт.

27

(Unit A)

1шт.

27

104037

CLEVIS

(Unit B)

2шт.

28

377729R1

SPARE PART (Unit B)

1шт.

29

377721R1

SPARE PART (Unit A)

1шт.

30

362612R21

SPARE PART (Units A and B)

1шт.

31

377720R1

SPARE PART (Units A and B)

1шт.

32

377728R11

SPARE PART (Units A and B)

1шт.

33

23111H

SPARE PART (Units A and B)

1шт.

34

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

(Units A and B)

2шт.

35

353213R2

SPRING

(Units A and B)

1шт.

36

377936R92

SPARE PART (Units A and B)

1шт.

37

373220R1

PLUG

(Units A and B)

2шт.
