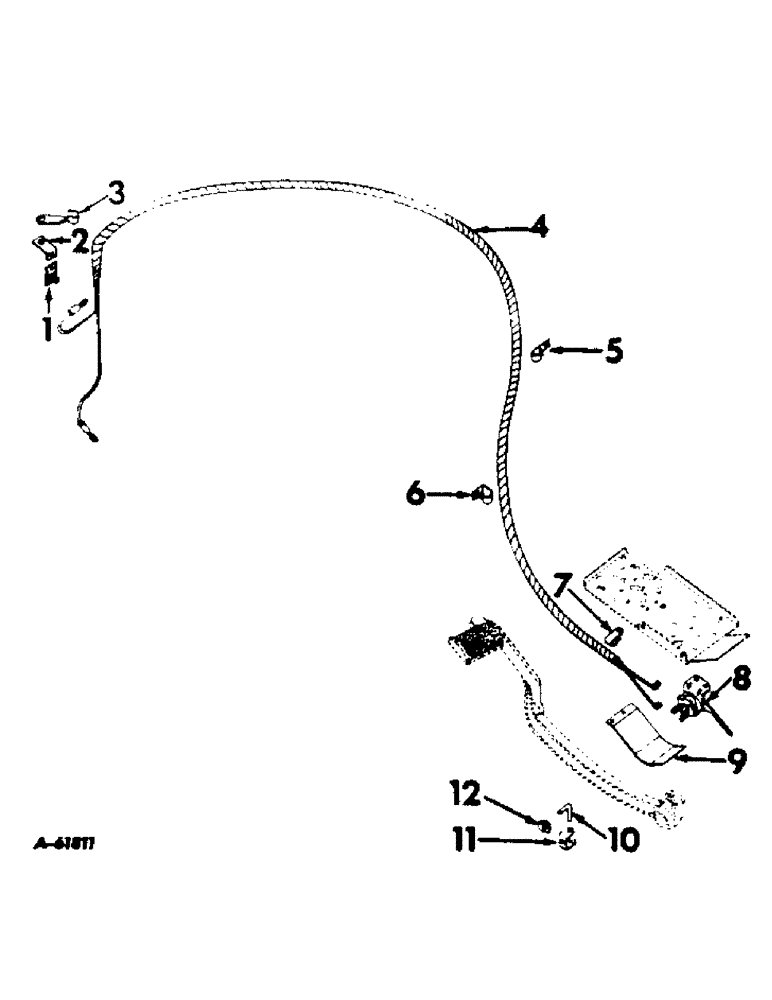

Запчасти Case IH 460 (097) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH, INTERNATIONAL 460 SERIES TRACTORS (06) - ELECTRICAL SYSTEMS

375484R91

SPARE PART safety starting switch

1шт.

1

42915D

BLOCK

junction

1шт.

NUT, No. 10

1шт.

SCREW, No. 10 x 1/2" slt-rd-hd mach

1шт.

WASHER, No. 10 lock

1шт.

2

42916D

SPARE PART junction block

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 3/4" hex-hd cap

1шт.

WASHER, 3/8" lock

1шт.

3

370740R1

CLAMP

cable harness (On fuel tank support LH rear mounting bolt)

1шт.

4

375478R91

SPARE PART safety starting switch cable

1шт.

5

355097R1

SPARE PART cable harness (On Hydra-Touch regulator valve cover lower LH mounting bolt)

1шт.

6

359526R1

SPARE PART cable harness (On upper mounting bolt of Torque Amplifier lever ratchet)

1шт.

7

358431R1

SPARE PART cable harness (On under side of platform LH rear mounting bolt)

1шт.

8

375477R91

SWITCH

safety starting

1шт.

SCREW, No. 10NF x 5/16" hex-hd mach

2шт.

9

375480R1

SPARE PART safety starting switch

1шт.

NUT, No. 10

2шт.

SCREW, No. 10 x 1/2" tr-hd slt mach

2шт.

10

375475R1

SPARE PART safety starting switch control

1шт.

11

375473R1

SPARE PART safety starting switch control arm

1шт.

12

375474R1

SPARE PART safety starting switch control bracket

1шт.

SCREW, 1/4 x 5/8" hex-hd cap

1шт.
