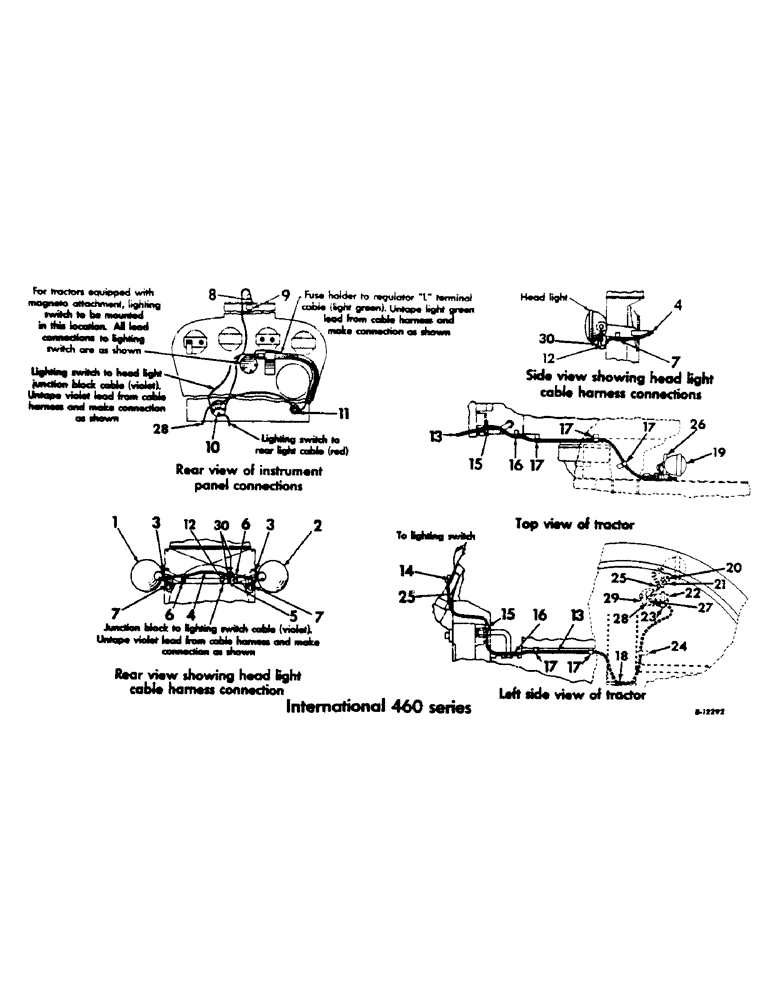

Запчасти Case IH 460 (093) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, INTERNATIONAL 460 SERIES TRACTORS WITH ORCHARD FENDERS (06) - ELECTRICAL SYSTEMS

1

370299R91

HEADLIGHT

LH - sealed beam (Guide) (Optional with 374181R91) (For components see list of parts under details of "Headlight")

1шт.

1

374181R91

LAMP

LH - sealed beam (Dietz) (Optional with 370299R91) (For components see list of parts under details of "Headlight")

1шт.

NUT, 1/2"

1шт.

WASHER, 1/2" lock

1шт.

2

370301R91

HEADLIGHT

RH - sealed beam (Guide) (Optional with 374182R91) (For components see list of parts under details of "Headlight")

1шт.

2

374182R91

LAMP

RH - sealed beam (Dietz) (Optional with 370301R91) (For components see list of parts under details of "Headlight")

1шт.

NUT, 1/2"

1шт.

WASHER, 1/2" lock

1шт.

3

370307R1

SEAT

headlight mounting ball

2шт.

4

370314R91

SPARE PART headlight cable

1шт.

5

42915D

BLOCK

headlight cable harness junction

1шт.

SCREW, No. 10 x 7/8" rd-hd. mach.

1шт.

WASHER, No. 10 lock

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

headlight cable harness

2шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

7

366460R1

CABLE CLIP

headlight cable harness (On headlight support lower front mounting)

2шт.

8

363838R91

CABLE

SPARE PART instrument light

1шт.

9

NLS

NO LONGER SERVICED

instrument light (No. 57-12 volt)

1шт.

10

371465R91

KIT

lighting (12 volt)

1шт.

11

370311R91

FUSE CARTRIDGE

fuse (Illustrated with "Engine Controls And Instruments")

1шт.

10815V

FUSE

10 amp.

1шт.

12

355097R1

SPARE PART cable harness (On fender side sheet rear mounting bolt)

1шт.

13

373988R91

SPARE PART combination rear light and breakaway connector socket cable

1шт.

14

355097R1

SPARE PART cable harness (On fuel tank and rear cowl support)

1шт.

15

355097R1

SPARE PART cable harness (On Hydra-touch valve cover upper LH mounting bolt)

1шт.

16

355098R1

SPARE PART cable harness (On rear frame cover LH - second bolt from front)

1шт.

17

363842R1

SPARE PART cable harness (On LH seat support)

2шт.

18

253313R1

SPARE PART cable harness (On top of LH axle housing inner rear bolt)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

19

374214R91

LAMP

combination (Dietz) (12 volt) (For components see list of parts under details of "Combination Rear Light and Tail Light") (Optional with 374882R91)

1шт.

19

374882R91

LAMP

combination (Guide) (12 volt) (For components see list of parts under details of "Combination Rear Light and Tail Light") (Optional with 374214R91)

1шт.

NUT, 1/2"

1шт.

20

365503R1

SPACER

rear light

1шт.

21

350920R1

CLAMP

rear light

1шт.

22

362002R92

SOCKET

electrical breakaway connector

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 5/8" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

23

362121R1

CLIP

cable harness (On breakaway connector mounting bolt)

1шт.

24

355097R1

SPARE PART cable harness (On fender side sheet)

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 5/8" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

cable harness (On combination rear light bracket inner mounting bolt)

1шт.

26

66724DB

SPARE PART rear light

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 3/4" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

27

CABLE, breakaway connector socket to ground (Pink) (Order Harness, 373988R91)

1шт.

28

CABLE, breakaway connector socket to lighting switch) (Black) (Order Harness, 373988R91)

1шт.

29

CABLE, lighting switch to line connector (Order Harness, 373988R91)

1шт.

30

CABLE, headlight to junction block (Black) (Order Harness, 370314R91)

2шт.
