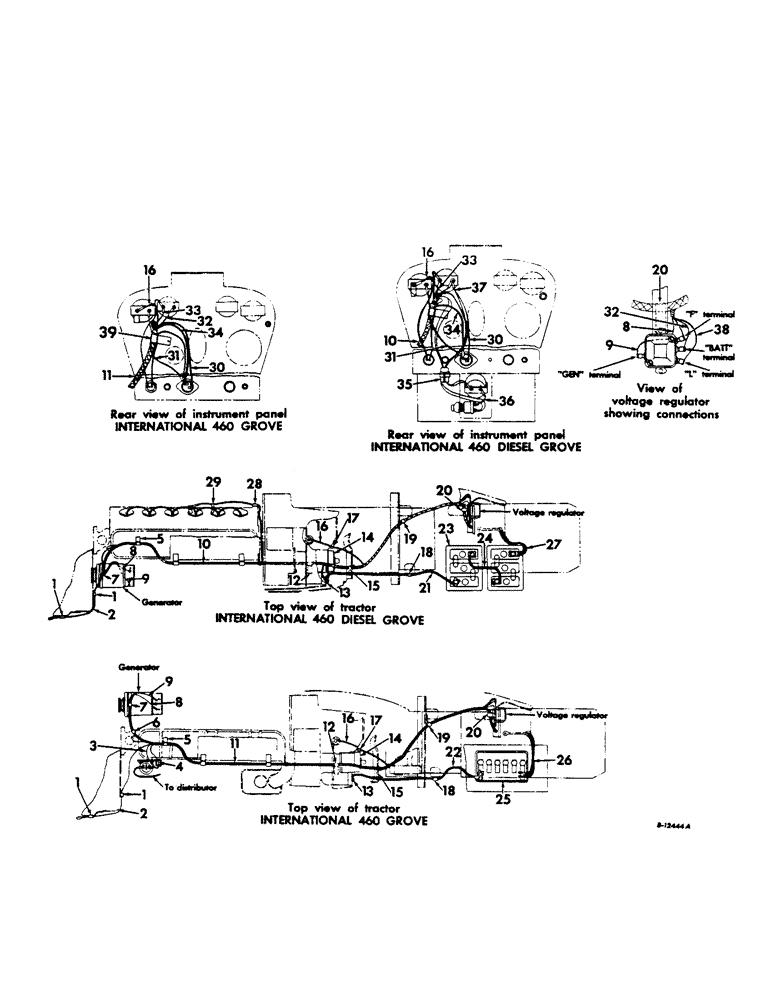

Запчасти Case IH 460 (088) - ELECTRICAL SYSTEM, IGNITION AND STARTING, INTERNATIONAL 460 SERIES GROVE TRACTORS (06) - ELECTRICAL SYSTEMS

a

Service parts for Gasoline Engineto

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

Service parts for Diesel Enginendto

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

366460R1

CABLE CLIP

horn switch to horn cable

2шт.

5

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

6

370383R1

CLIP

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

10

377445R91

SPARE PART cable (Unit B)

1шт.

11

377444R91

SPARE PART cable (Unit A)

1шт.

12

362123R1

CLIP

1шт.

13

364910R1

BOOT

solenoid terminal

1шт.

15

362123R1

CLIP

1шт.

17

364408R1

SPARE PART

1шт.

18

362123R1

CLIP

1шт.

19

370820R1

CLIP

1шт.

20

362123R1

CLIP

1шт.

21

377447R91

CABLE

1шт.

356062R91

BOLT

terminal

1шт.

22

377446R91

SPARE PART

1шт.

356062R91

BOLT

terminal

1шт.

23

370405R91

DRY BATTERY

1шт.

24

370394R91

CABLE

1шт.

356062R91

BOLT

terminal

2шт.

25

368879R91

BATTERY

1шт.

26

370389R91

CABLE

1шт.

356062R91

BOLT

1шт.

27

369609R91

CABLE

1шт.

356062R91

BOLT

1шт.

28

263717R91

CLIP

1шт.

29

263717R91

CLIP

1шт.

31

367047R91

SPARE PART

1шт.

35

375066R91

CABLE

1шт.

36

375077R91

CABLE

1шт.

39

362123R1

CLIP

1шт.
