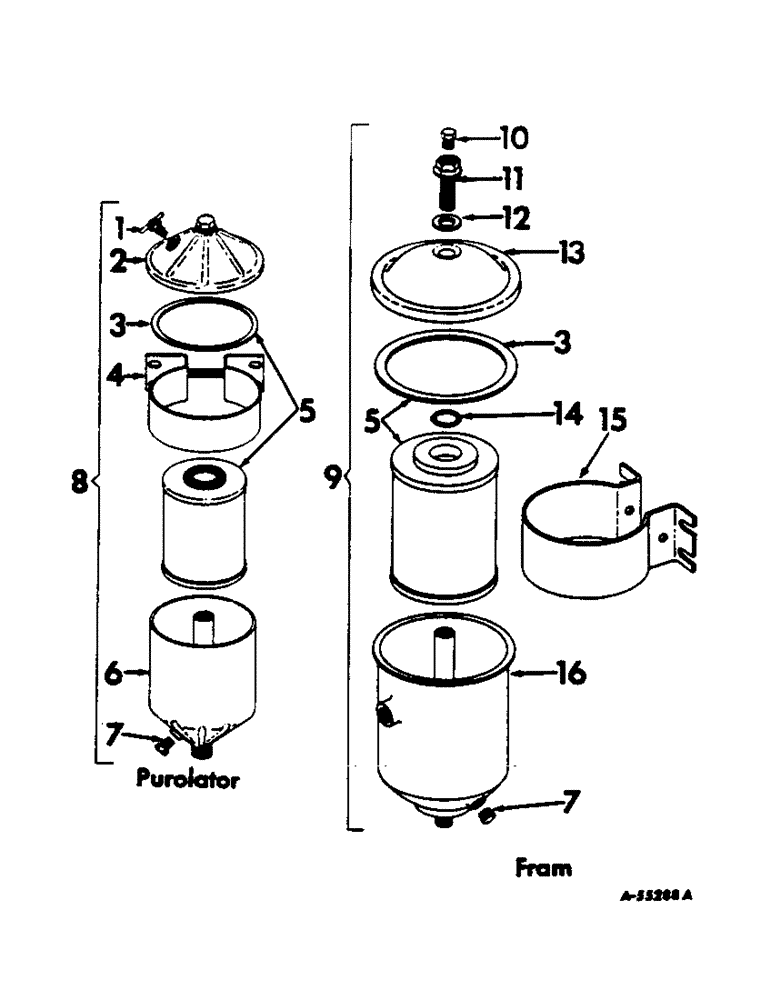

Запчасти Case IH 460 (039) - FUEL SYSTEM, FUEL FILTER, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

114981

VALVE

filter

1шт.

2

304103R91

COVER

filter

1шт.

3

304102R1

GASKET

element cover

1шт.

4

304104R91

HOLDER

filter

1шт.

5

304101R91

FILTER, ELEMENT

ELEMENT, FILTER final filter

1шт.

5

306353R91

ELEMENT

primary filter (Special use when plugging of filters is encountered)

1шт.

5

610309R91

primary fuel filter water separator (Special)

1шт.

6

304100R91

BODY

SPARE PART filter

1шт.

7

258995R1

PLUG

filter drain

1шт.

8

278062R91

FILTER

fuel (Purolator) (Optional with 306399R91)

1шт.

9

306399R91

FILTER

fuel (Fram) (Optional with 278062R91)

1шт.

10

306778R1

SPARE PART filter vent

1шт.

11

368492R1

SPARE PART filter vent cap

1шт.

12

368493R1

GASKET

filter vent cap screw

1шт.

13

306776R1

COVER, filter

1шт.

14

306777R1

O-RING

filter body

1шт.

15

306780R1

SPARE PART filter bracket

1шт.

NUT, 1/4" sq.

1шт.

SCREW, 1/4 x 3" slt-rd-hd. mach.

1шт.

WASHER, 1/4" lock

1шт.

16

306775R91

SPARE PART filter

1шт.
