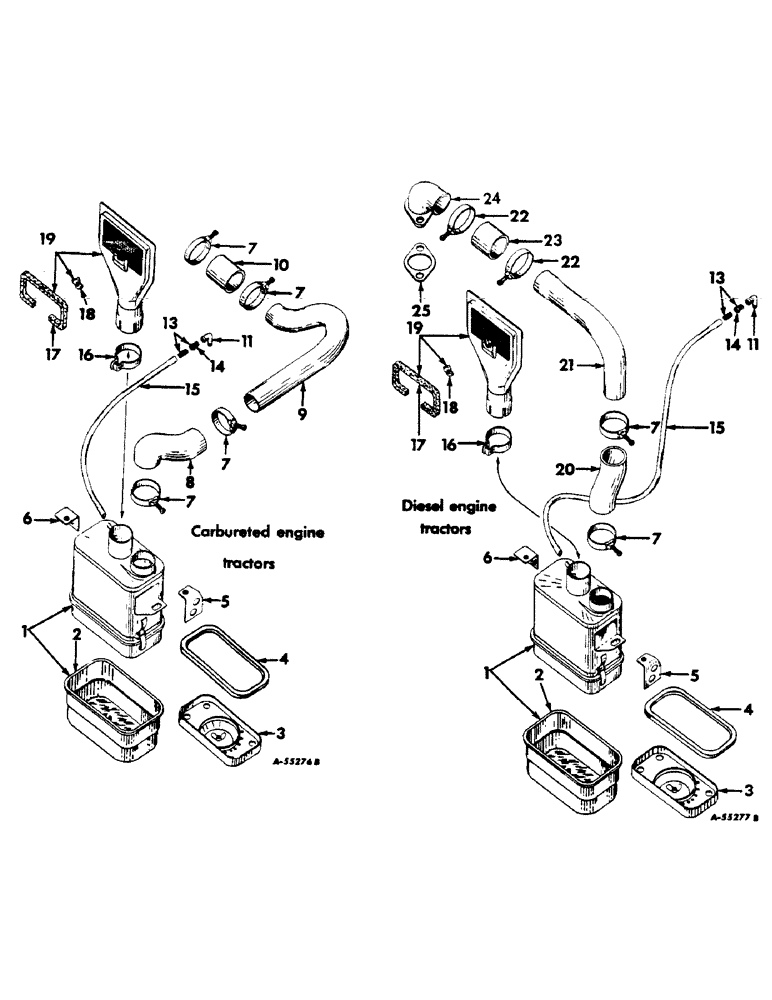

Запчасти Case IH 460 (032) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, INTERNATIONAL 460 SERIES (02) - FUEL SYSTEM

1

371374R91

SPARE PART air (United Specialties)

1шт.

1

370398R91

SPARE PART air (Donaldson)

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

5/16 x 5/8" hex. washer hd. cap

2шт.

2

372944R91

SPARE PART oil (Part of Air Cleaner, 371374R91)

1шт.

2

372492R91

SPARE PART oil (Part of Air Cleaner, 370398R91)

1шт.

3

372943R91

SPARE PART (Part of Air Cleaner, 371374R91)

1шт.

4

372945R1

SPARE PART strip (Part of Air Cleaner, 371374R91)

1шт.

5

369491R11

SPARE PART air cleaner

1шт.

SCREW, 5/8 x 1-1/2" hex-hd. cap

2шт.

6

369907R11

SPARE PART air cleaner mounting front (Note A)

1шт.

Used only with Crankcase: Carbureted Engine Tractors (NSS), Diesel Engine Tractors (NSS)

1шт.

6

373930R11

SPARE PART air cleaner mounting front (Note B)

1шт.

Used only with Crankcases: Carbureted Engine Tractors (NSS), Carbureted Engine Tractors (NSS), Diesel Engine Tractors (NSS), Diesel Engine Tractors (NSS)

1шт.

SCREW, 5/16 x 5/8" hex-hd. cap

1шт.

7

45813D

CLAMP

air cleaner hose (4 used on carbureted engine tractors) (2 used on diesel engine tractors)

1шт.

8

369493R1

SPARE PART air cleaner outlet

1шт.

9

369495R1

SPARE PART air cleaner outlet (Gasoline engines)

1шт.

9

371684R1

SPARE PART air cleaner outlet (L.P. Gas engines)

1шт.

10

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Connecting

1шт.

11

365781R1

SPARE PART breather pipe

1шт.

13

364252R11

SPARE PART breather

1шт.

14

278953R91

NUT

reather pipe elbow

1шт.

15

369492R1

SPARE PART air cleaner to valve cover

1шт.

16

369906R1

SPARE PART air cleaner intake

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cap

1шт.

17

369503R1

SPARE PART air intake chamber

1шт.

18

369865R2

FASTENER

quick release fastener

1шт.

RIVET, .008 x 1/8" oval-hd. tubular

2шт.

19

369499R91

SPARE PART air

1шт.

20

372323R1

SPARE PART air cleaner outlet

1шт.

21

369494R1

SPARE PART air cleaner outlet

1шт.

22

39240H

CLAMP

elbow connecting hose

2шт.

23

369498R1

SPARE PART elbow connecting

1шт.

24

369496R1

SPARE PART air cleaner outlet

1шт.

SCREW, 7/16 x 1" hex-hd cap

2шт.

WASHER, 7/16" lock

2шт.

25

369497R2

GASKET

air cleaner outlet elbow

1шт.
