Запчасти Case IH 430 (148) - SHUTTLE GEAR BOX (06) - POWER TRAIN

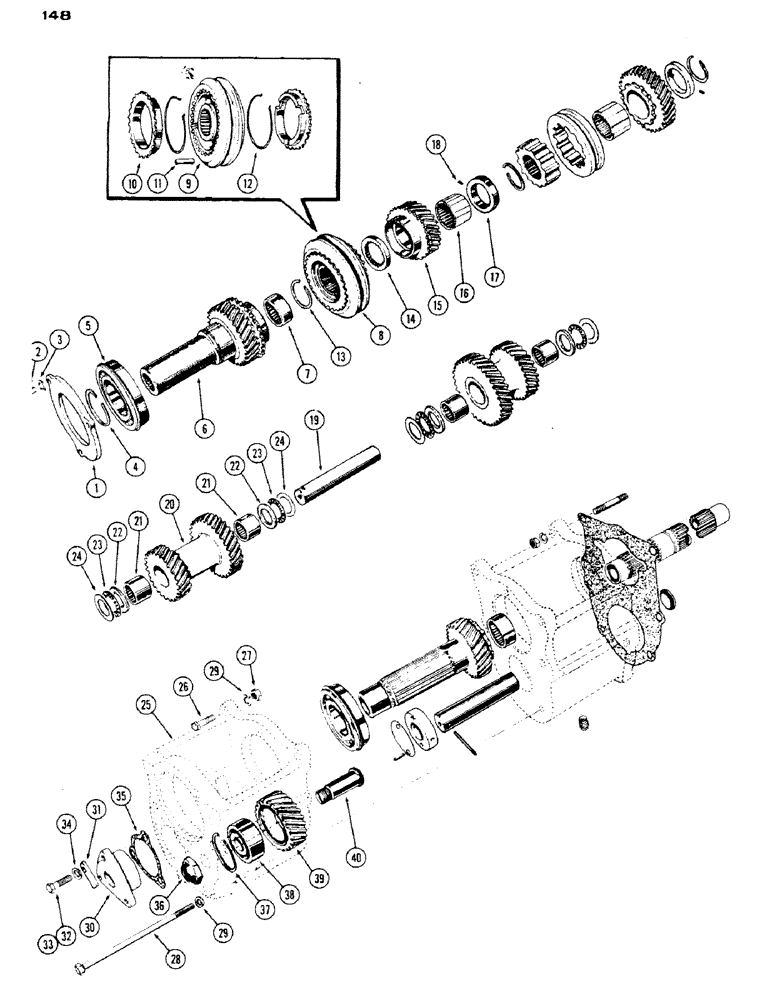

Схема запчастей Case IH 430 - (148) - SHUTTLE GEAR BOX (06) - POWER TRAIN
5
38
4
6
28
39
9
7
11
24
26
29
27
19
8
29
32
35
31
3
14
10
21
22
24
21
13
33
30
17
12
15
20
1
25
18
16
36
23
40
23
34
22
2
37

Артикул

Название

Примечание

Количество

1

G16627

RETAINER

- bearing, input gear

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

A27209

RING

- snap, input gear bearing

1шт.

5

G13607

BALL BEARING

BEARING - ball, input gear

1шт.

6

A37617

GEAR

- input (w/internal splines)

1шт.

7

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, input gear

1шт.

8

G45049

SYNCHRONIZER

ASSY. - shifter, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

HUB & SLEEVE

1шт.

10

G46077

RING

- blocking, synchronizer

2шт.

11

G46078

PLATE

- shifter

3шт.

12

A40766

SPRING

- shifter plate

2шт.

13

A27565

RING

- snap, synchronizer (.076")

1шт.

13

A27566

RING

- snap, synchronizer (.080")

1шт.

13

A27567

RING

- snap, synchronizer (.083")

1шт.

13

G46097

RING

- snap, synchronizer (.087")

1шт.

13

A27568

RING

- snap, synchronizer (.091")

1шт.

14

G16625

COLLAR

- thrust, output gear

1шт.

15

G16624

GEAR

- output (27T)

1шт.

16

G16619

SLEEVE

- output gear

1шт.

17

G13459

COLLAR

- thrust, output gear, Includes: Ref. 18

1шт.

18

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, 5/64" x 3/8", Slotted

1шт.

19

G16617

SHAFT

COUNTERSHAFT - cluster gear

1шт.

20

G16615

GEAR

- cluster, countershaft (25T & 30T)

1шт.

21

G10420

NEEDLE BEARING

BEARING - needle, cluster gear

2шт.

22

G46082

WASHER

- inner, thrust (.124")

2шт.

23

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Countershaft

2шт.

24

G46081

BEARING WASHER

WASHER - outer, thrust (.031")

2шт.

25

G1205

HOUSING

- shuttle gear

1шт.

26

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex. hd.

3шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex.

3шт.

28

15-6104

X

BOLT - 3/8 x 6-1/2" N.C. hex. hd.

4шт.

29

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

7шт.

30

G1206

RING

BUSHING - front, countershaft

1шт.

31

G16618

LATCH

LOCK - countershaft

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. hd.

1шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

34

92-6

LOCK WASHER,3/8"

3шт.

35

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

36

G16614

NUT

- idler gear stud

1шт.

37

A27150

RING

- snap, idler gear bearing

1шт.

38

G13608

BALL BEARING

BEARING - ball, idler gear

1шт.

39

G16612

GEAR

- reverse idler (24T)

1шт.

40

G16613

STUD

- reverse idler gear

1шт.

Выбрано товаров: 44
