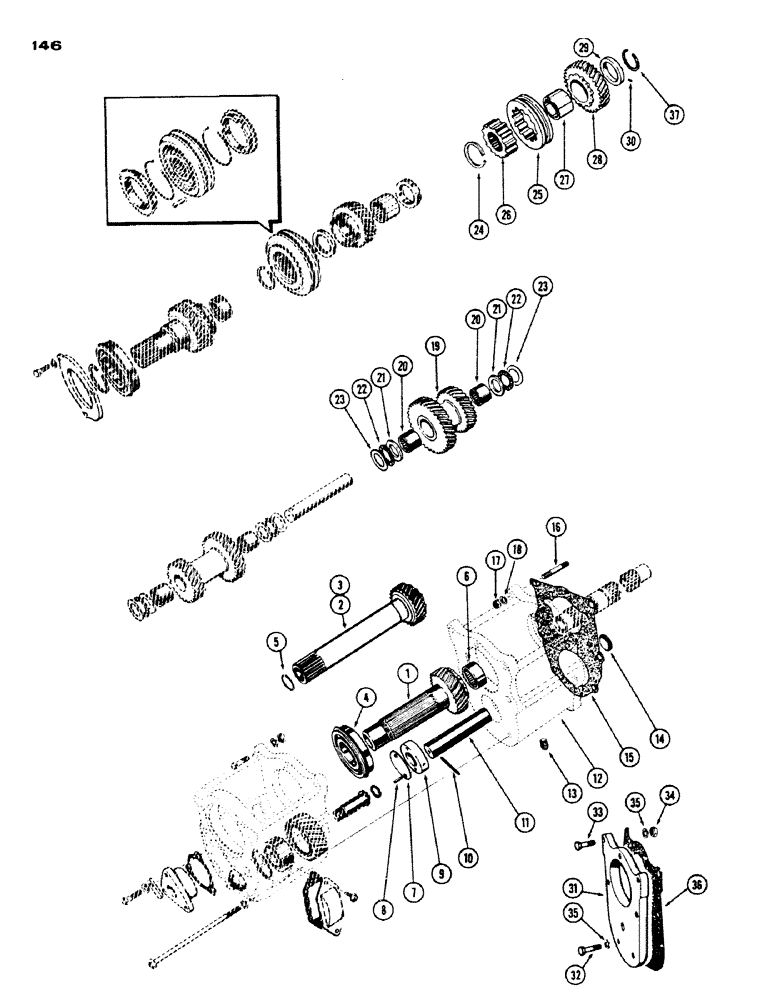

Запчасти Case IH 430 (146) - DUAL RANGE GEAR BOX (06) - POWER TRAIN

1

G16623

GEAR

- input (w/shuttle)

1шт.

2

A35935

GEAR

- input (std. clutch w/no shuttle) (8-13/16" long)

1шт.

3

G16800

GEAR

- input (C-O-M w/no shuttle) (10-21/32" long)

1шт.

4

G13606

BALL BEARING

BEARING - input gear

1шт.

5

G26946

RING - bearing, input (w/no shuttle)

1шт.

6

G10419

NEEDLE BEARING

BEARING - needle, input gear

1шт.

7

G16608

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

8

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

2шт.

9

G16607

COLLAR

- countershaft

1шт.

10

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Collar to shaft 3/16" x 2", Slotted

1шт.

11

G16606

SHAFT

COUNTERSHAFT

1шт.

12

G1254

HOUSING - gear, dual range

1шт.

13

221-1849

PLUG

- pipe, 1/8" socket hd. (w/C-O-M only)

1шт.

14

A30084

PLUG

- housing rear (1-1/2" exp.)

1шт.

15

G46841

GASKET

-, Serial Range: housing-transmission

1шт.

16

G10710

STUD

- housing to transmission (3/8" N.C./N.F. x 1-3/4")

7шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.

18

92-6

LOCK WASHER,3/8"

7шт.

19

G16611

GEAR

- cluster, countershaft (34T & 27T)

1шт.

20

F51079

NEEDLE BEARING

BEARING - needle, cluster gear

2шт.

21

G46082

WASHER

- thrust, inner (.124")

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Countershaft

2шт.

23

G46081

BEARING WASHER

WASHER - thrust, outer (.031")

2шт.

24

A27565

RING

- snap, shift collar (.076")

1шт.

24

A27566

RING

- snap, shift collar (.080")

1шт.

24

A27567

RING

- snap, shift collar (.083")

1шт.

24

G46097

RING

- snap, shift collar (.087")

1шт.

24

A27568

RING

- snap, shift collar (.091")

1шт.

25

A38153

COLLAR

- range shift (Replaces G16622)

1шт.

26

G16621

CARRIER

- shift collar

1шт.

27

G16619

SLEEVE

COLLAR - output gear

1шт.

28

G16620

GEAR

- output (32T)

1шт.

29

G13458

COLLAR

ASSY. - thrust, output gear, Includes: Ref. 30

1шт.

30

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN - roll (5/16 x 3/8")

1шт.

31

G1253

PLATE - cover, front (w/no shuttle)

1шт.

32

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

3шт.

35

92-6

LOCK WASHER,3/8"

7шт.

36

G46825

GASKET

- cover (w/no shuttle)

1шт.

37

A26946

RING

- snap, Serial Range: collar-mainshaft

1шт.
