Запчасти Case IH 430 (138) - G14458 CONTROL VALVE, CASE-O-MATIC DRIVE / G45386 CONVERTER PUMP (06) - POWER TRAIN

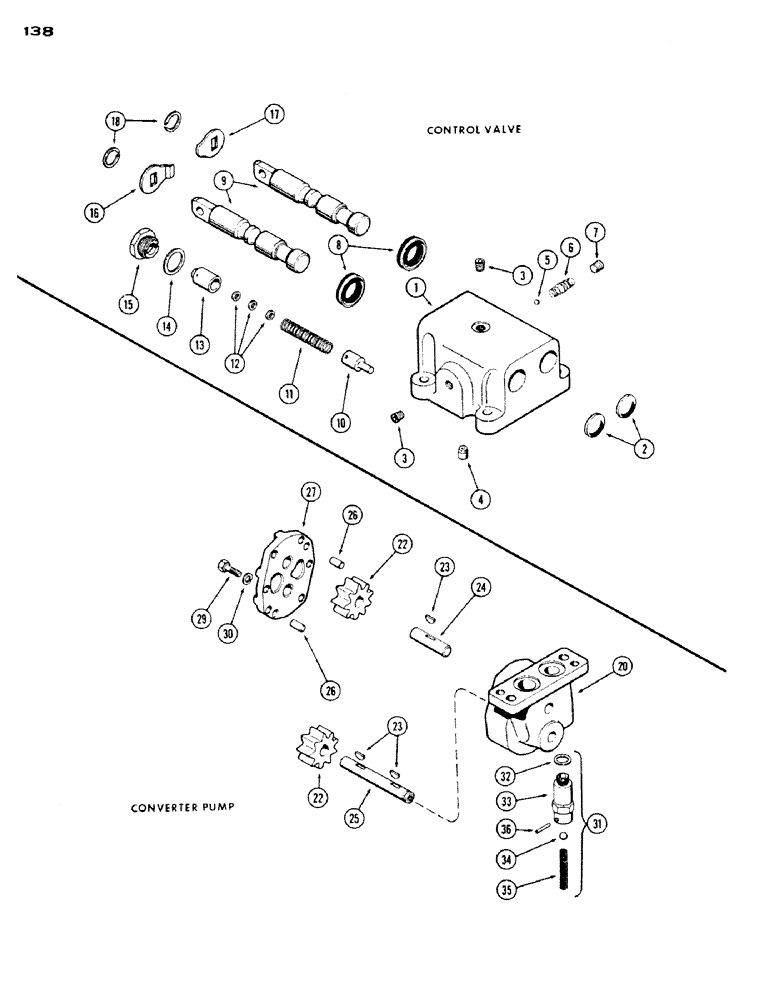

Схема запчастей Case IH 430 - (138) - G14458 CONTROL VALVE, CASE-O-MATIC DRIVE / G45386 CONVERTER PUMP (06) - POWER TRAIN
5
33
25
18
14
26
8
13
36
6
22
15
32
30
12
23
9
22
2
31
16
7
26
10
3
23
20
34
3
24
11
27
4
17
29
1
35

Артикул

Название

Примечание

Количество

G14458

VALVE ASSY. - complete, Includes: Ref. 1 - 18

1шт.

1

A11504

BODY - valve

1шт.

2

41-16

PLUG,Exp, 1"

- spool opening (1" expansion)

2шт.

3

221-1840

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

4

A20092

PLUG

- pressure, regulator orifice

1шт.

5

211-7

BALL,1/4" Dia

- steel, check valve 1/4" Dia

1шт.

6

A11517

VALVE SPRING

SPRING - check valve (1-5/16" free length)

1шт.

7

221-1849

PLUG

- pipe, 1/8" hex socket hd

1шт.

8

A11507

OIL SEAL

- oil, spool

2шт.

9

A11506

SPOOL - valve

2шт.

10

A11510

PLUNGER

- small, pressure regulator

1шт.

11

A11512

VALVE SPRING

SPRING - pressure regulator (2-5/16" free length)

1шт.

12

195-9

WASHER - (3/16 x 3/8 x 3/64")

1шт.

13

A11511

PLUNGER

- large, pressure regulator

1шт.

14

A11513

GASKET

- cap, pressure regulator

1шт.

15

A11514

CAP - pressure regulator

1шт.

16

G16809

PLATE ASSY.

PLATE - interlock, R. H. spool

1шт.

17

G16808

PLATE ASSY.

PLATE - interlock, L. H. spool

1шт.

18

A29329

RING, SNAP

RING - snap, interlock plate

2шт.

G45386

PUMP

ASSY., converter - complete, Includes: Ref. 20 - 36

1шт.

20

A11535

HOUSING ASSY. - pump, converter

1шт.

22

A11523

GEAR

- drive and idler, converter pump

2шт.

23

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to shaft, Converter pump #3, 1/8" x 1/2"

2шт.

24

A11525

SHAFT

- idler gear, converter pump

1шт.

25

A11522

SHAFT

- drive gear, converter pump

1шт.

26

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, cover to housing, converter pump

2шт.

27

A11536

COVER ASSY. - pump, converter

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cover, Converter pump Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Converter pump 1/4"

6шт.

31

G30570

VALVE

ASSY. - relief, Includes: Ref. 32 - 36, converter pump

1шт.

32

A11530

GASKET

- valve to housing, converter pump

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - (Order G30570), converter pump

1шт.

34

211-9

BALL,5/16" Dia

- 5/16" chrome), converter pump

1шт.

35

G48512

SPRING

- valve (1-25/32" free length), converter pump

1шт.

36

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Converter pump 1/8" x 3/4", Slotted

1шт.

Выбрано товаров: 35
