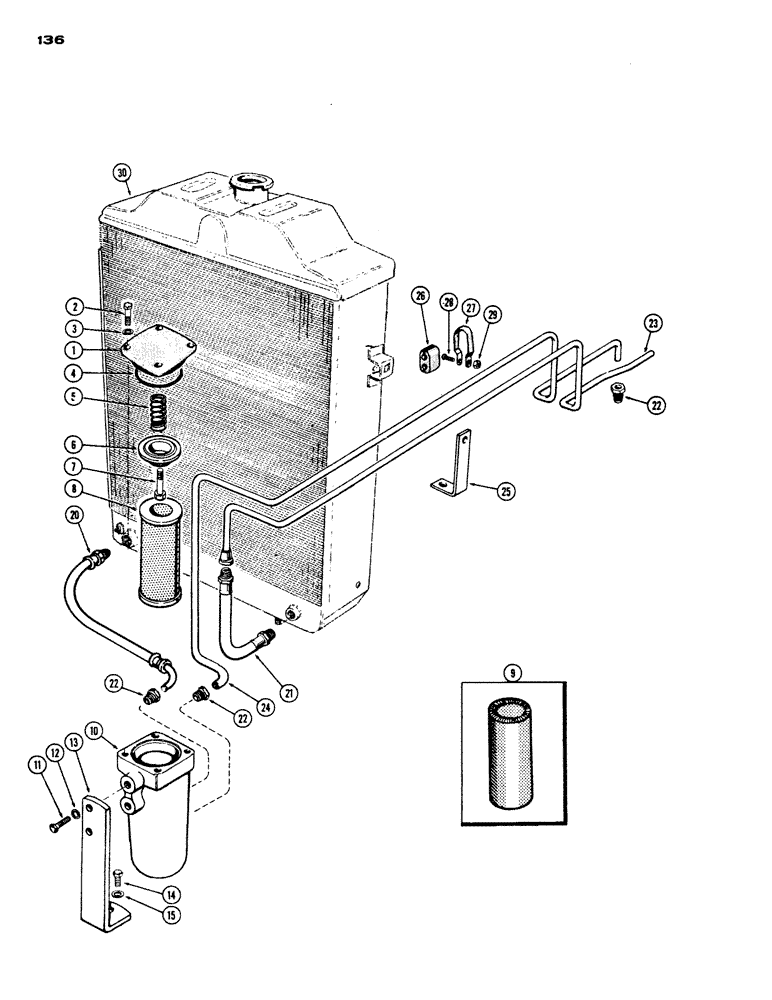

Запчасти Case IH 430 (136) - OIL FILTER AND COOLING TUBES, CASE-O-MATIC DRIVE (06) - POWER TRAIN

1

G1248

COVER

CAP - cover, filter housing

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - cover cap (2-3/4 x 2-5/8 x 1/8")

1шт.

5

A29993

VALVE SPRING

SPRING - filter element retainer

1шт.

6

A36523

CAP

- retainer, filter element

1шт.

7

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

8

A36524

FILTER, ELEMENT

ELEMENT - filter, Start Serial: 8246301

1шт.

9

G13113

ELEMENT,2.25" OD x 6" L

ELEMENT - filter, Serial Range: -8246301

1шт.

10

A37193

HOUSING

- oil filter element

1шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

G15650

BRACKET - filter housing

1шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

20

G45123

TUBE ASSY.

HOSE -, Serial Range: filter-radiator

1шт.

21

G45133

HYDRAULIC HOSE,0.50" ID x 16.00"

HOSE - radiator to return tube

1шт.

22

222-506

TUBE NUT,11/16"-16

NUT - connector (1/2" O.D.)

4шт.

23

A36537

TUBE

- return, oil

1шт.

24

A37063

TUBE - torque, Serial Range: tube-valve

1шт.

25

A35709

BRACKET - support, oil tube

1шт.

26

G46835

GROMMET

- rubber, tube clamp

3шт.

27

G46194

CLAMP

- oil tube

3шт.

28

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- mach., #10-32 x 3/4" rd. hd.

3шт.

29

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

3шт.

30

G45479

RADIATOR ASSY., Includes: Ref. 31

1шт.

31

G45484

RESERVOIR

TANK - oil cooler, lower

1шт.
