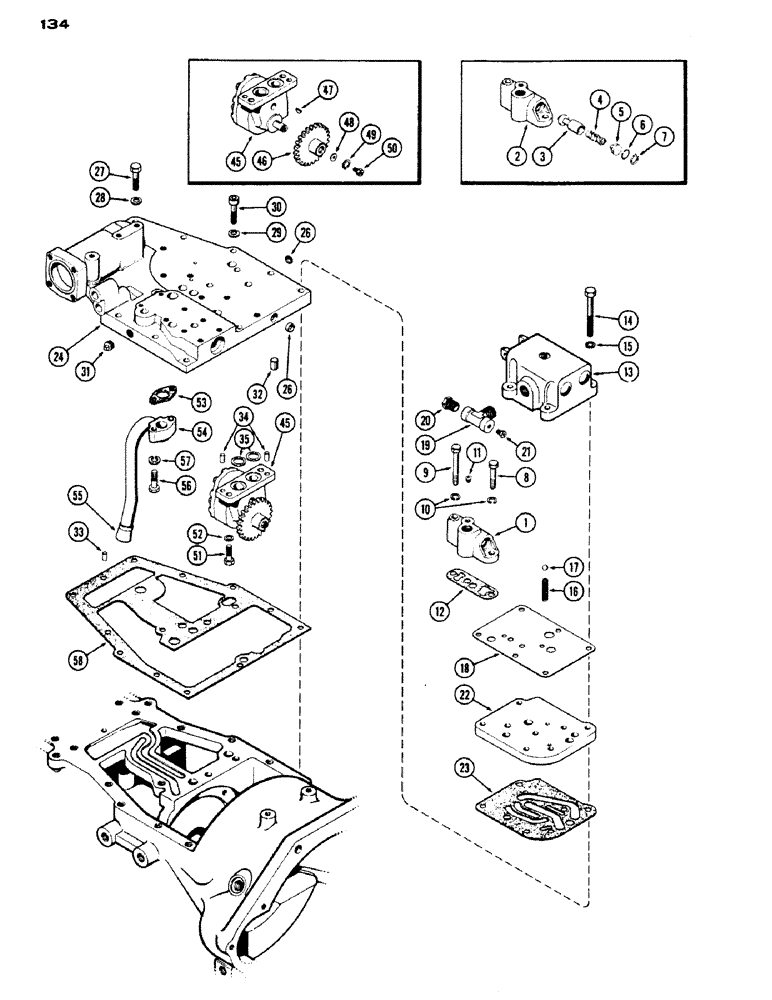

Запчасти Case IH 430 (134) - PUMP AND VALVE ADAPTER, CASE-O-MATIC DRIVE (06) - POWER TRAIN

1

A36898

VALVE

ASSY. - regulator, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING (Order A36898)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL (Order A36898)

1шт.

4

A30106

VALVE SPRING

SPRING - valve spool

1шт.

5

G16779

CAP

PLUG - end

1шт.

6

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - plug (9/16 x 3/4 x 3/32")

1шт.

7

G46150

SNAP RING,0.75", Int, #75

RING - snap, , plug 0.75", Int, #75

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N. C. hex. hd.

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

221-1840

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

12

G46824

GASKET

- regulator valve

1шт.

13

G14458

VALVE ASSY. - control (Repairs Figure 138)

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N. C. hex. hd.

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

A29285

SPRING

- detent, valve spool

2шт.

17

211-13

BALL,1/2" Dia

- detent, valve spool 1/2" Dia

2шт.

18

80300633

SNAP RING,M80, Int

- control valve

1шт.

19

G48005

TEE

FITTING ASSY. - tee, control valve, Includes: Ref. 20 and 21

1шт.

20

222-506

TUBE NUT,11/16"-16

NUT - cooling tube (1/2" O. D.)

1шт.

21

222-500

TUBE NUT,5/16" - 24 NPT

NUT - pressure tube (1/8" O. D.)

1шт.

22

G1250

PLATE - oil distribution

1шт.

23

G46822

GASKET

-, Serial Range: plate-adapter

1шт.

24

A37869

HOUSING

ASSY. - adapter, Includes: Ref. 26

1шт.

26

A37977

PLUG

- adapter housing (3/4" cup type)

2шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

27

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

27

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

28

92-6

LOCK WASHER,3/8"

7шт.

29

195-401

SEALING WASHER,3/8"

WASHER - sealing, 3/8"

2шт.

30

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cap, 3/8 x 1-3/4" N.C. socket hd.

1шт.

31

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- pipe, 3/8" sq. ctsk. hd.

1шт.

32

G10711

PIN

- dowel, adapter housing, rear (1/2 x 3/4")

1шт.

33

A29426

AXLE PIN

PIN - dower, adapter housing, front (3/8 x 3/4")

1шт.

34

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, pump to adapter (5/16 x 9/16")

2шт.

35

A7075

GASKET

GASKET -, Serial Range: pump-adapter

2шт.

45

G45386

PUMP

ASSY. - (Repairs Figure 138)

1шт.

46

G16798

GEAR

- pump drive

1шт.

47

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to pump #3, 1/8" x 1/2"

1шт.

48

G49045

WASHER

- retainer, drive gear

1шт.

49

G46147

SNAP RING,0.625", Int, #62

RING - snap, , drive gear 0.625", Int, #62

1шт.

50

165-101

HEX SOC SCREW,Prev Torque, 1/4" - 28 x 3/8"

SCREW - locking, 1/4 x 3/8" socket hd.

1шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

2шт.

53

A38212

GASKET

- suction tube (Replaces G46823)

1шт.

54

A37943

TUBE

- pump suction, Includes: Ref. 55

1шт.

55

A35212

SCREEN

- suction tube

1шт.

56

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex. hd.

2шт.

57

92-5

LOCK WASHER,5/16"

2шт.

58

G46818

GASKET

- adapter housing

1шт.

59

G46291

TUBE,0.187" OD x 12.031, 4.375" L

- oil transfer to trans. case

1шт.

60

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

ASSY. - tube to cover, 3/16 x 1/8" (90 degrees), Includes: Ref. 61

1шт.

61

222-501

TUBE NUT,3/8"-24

NUT - 3/16" tube

1шт.

62

222-401

CONNECTOR, ELEC

CONNECTOR ASSY. - tube to valve, 3/16 x 1/8", Includes: Ref. 63

1шт.

63

222-501

TUBE NUT,3/8"-24

NUT - 3/16" tube

1шт.
