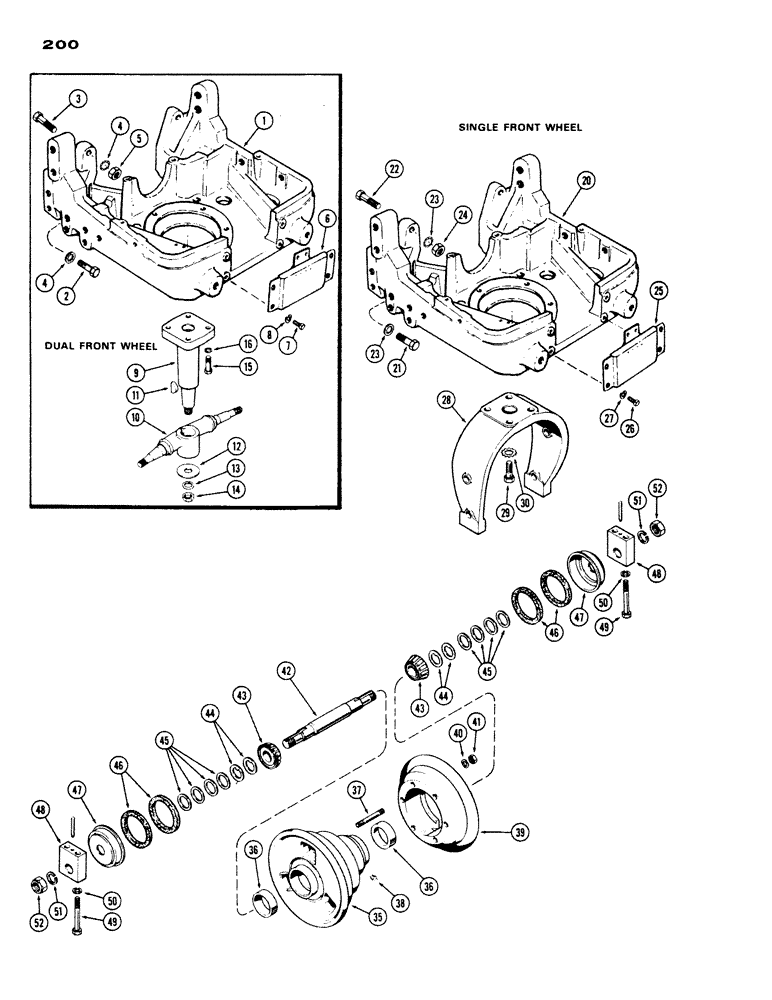

Запчасти Case IH 430 (200) - DUAL FRONT WHEEL SUPPORT (05) - STEERING

1

G1414

SUPPORT - steering gear and radiator

1шт.

2

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Lower, support Hex, 5/8"-11 x 2 1/4", G5

2шт.

3

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- upper, support (5/8 x 3" N. F. hex.)

2шт.

4

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- 5/8" N. F. hex.

2шт.

6

A35044

COVER - front support

1шт.

7

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

G15963

SHAFT - steering, Serial Range: gear-spindle

1шт.

10

G10812

SPINDLE - front wheel, dual

1шт.

11

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Spindle #G, 3/8" x 1 1/2"

1шт.

12

A30052

WASHER

- take-up, spindle

1шт.

13

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

14

25-1516

NUT,Jam, 1"-14, G5

- 1" N. F. hex.

1шт.

15

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Shaft to gear Hex, 5/8"-18 x 2", G5

4шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

G1414

SUPPORT - steering gear & radiator, and single front wheel, model 430

1шт.

21

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Lower, support, and single front wheel, model 430 Hex, 5/8"-11 x 2 1/4", G5

2шт.

22

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- upper, support (5/8 x 3" N.F. hex.), and single front wheel, model 430

2шт.

23

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Single front wheel and support, model 430 Int Tooth, 5/8"

4шт.

24

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex., single front wheel and support, model 430

2шт.

25

A35044

COVER - support, and single front wheel, model 430

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Cover, single front wheel and support, model 430 Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Single front wheel and support, model 430 3/8"

4шт.

28

A26349

FORK - front axle, single wheel and support, model 430

1шт.

29

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Fork to support, and single front wheel, model 430 Hex, 5/8"-18 x 2", G5

4шт.

30

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER - 5/8" int. skpf., single front wheel and support, model 430

4шт.

35

A28724

DISC ASSY. - wheel half (takes 9.00 x 10 tire), Includes: Ref. 36 - 38, single front and support, model 430

1шт.

36

A27631

CUP

- bearing, single front wheel and support, model 430

2шт.

37

A27704

STUD - flange (1/2" N.C./N.F. x 4"), single front wheel and support, model 430

6шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str., single front wheel and support, model 430

1шт.

39

A26245

FLANGE - wheel half (takes 9.00 x 10 tire), single front and support, model 430

1шт.

40

92-8

LOCK WASHER,1/2"

single front wheel and support, model 430 1/2"

6шт.

41

25-178

NUT,1/2"-20, G5, Hvy

- 1/2" N.F. hex., single front wheel and support, model 430

6шт.

42

A28221

SHAFT - front axle, single wheel and support, model 430

1шт.

43

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, single front wheel and support, model 430

2шт.

44

A28222

WASHER - axle shaft, single front wheel and support, model 430

4шт.

45

A28223

SHIM,.003" Thk

Axle shaft, Single front wheel and support, Model 430 .003" Thk

1шт.

45

A28224

SHIM,.005" Thk

Axle shaft, Single front wheel and support, Model 430 .005" Thk

1шт.

46

A27632

FELT

SEAL - dust (3-1/2 x 4-3/8 x 3/8" felt), single front wheel and support, model 430

2шт.

47

A28225

RETAINER

- dust seal, single front wheel and support, model 430

2шт.

48

A28723

BLOCK ASSY. - w/pin, single front wheel and support, model 430

2шт.

49

14-952

BOLT,Hex, 9/16" - 18 x 3-1/4", Gr 5

- block (9/16 x 3-1/4" N.F. hex.), single front wheel and support, model 430

4шт.

50

92-9

BEARING WASHER,9/16"

Single front wheel and support, Model 430 9/16"

4шт.

51

92-18

LOCK WASHER,1 1/8"

single front wheel and support, model 430 1 1/8"

2шт.

52

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- 1-1/8" N.F. hex., single front wheel and support, model 430

2шт.
