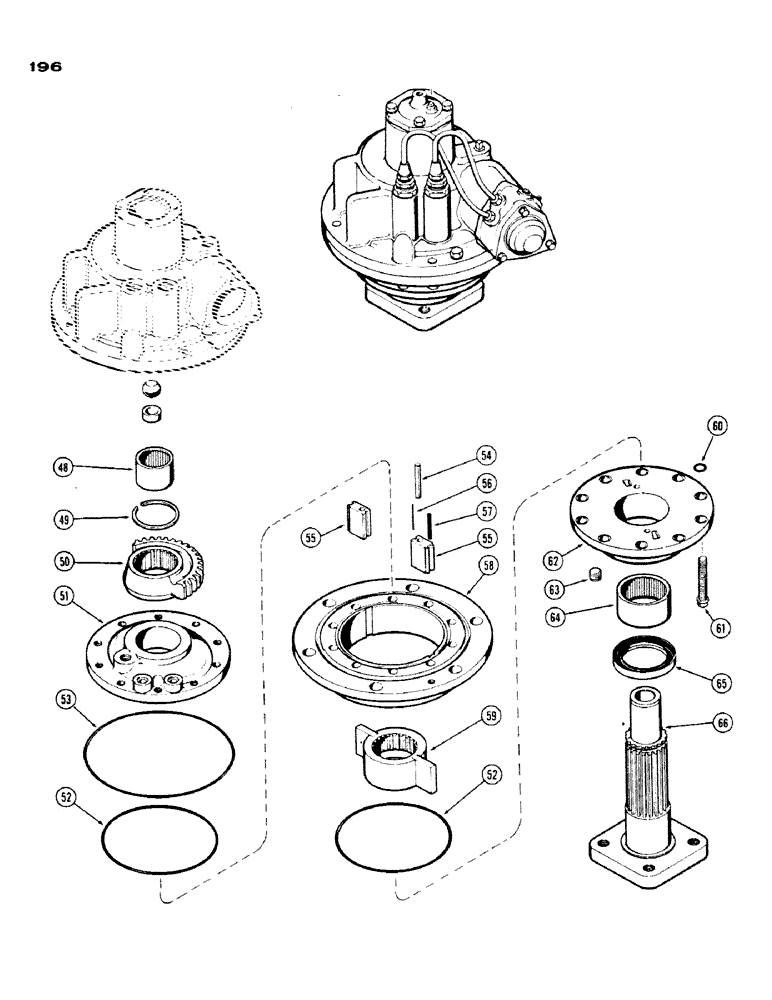

Запчасти Case IH 430 (196) - POWER STEERING GEAR, CONTINUED, WITH DUAL FRONT WHEEL (05) - STEERING

A36571

GEAR ASSY. - steering (cont. from Figure 194), Includes: Ref. 48 - 66 and 2 - 47 on Fig. 194

1шт.

48

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle, upper

1шт.

49

A27760

RING, SNAP

RING - snap, sector gear retaining

1шт.

50

A33061

GEAR

- sector

1шт.

51

A7972

COVER - vane, upper

1шт.

52

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - vane body 6-1/4 x 6-1/2 x 1/8"

2шт.

53

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O" RING - cover 8-1/4 x 8-1/2 x 1/8"

1шт.

54

A7975

PIN

- stationary vane

2шт.

55

A34186

VALVE

VANE - stationary (Can use A9866)

2шт.

56

A57042

SEAL

- stationary vane 9/64 x 1-3/4" (rubber)

2шт.

57

A24701

SEAL

SEAL - stationary vane 13/64 x 1-3/4" (rubber)

2шт.

58

A7971

BODY - vane

1шт.

59

A20354

VANE - torque motor

1шт.

60

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - cover bolts 7/16 x 5/8 x 3/32"

10шт.

61

166-72

BOLT - cover 7/16 x 2-3/4" N.C. 12 pt. sckt. hd.

10шт.

62

A7973

COVER - vane, lower

1шт.

63

222-841

TEE,1/8" NPT Fem Run x 1/8" NPT Male x 3/8"-24 Br

PLUG - cover 1/4" P.T., sckt. hd.

1шт.

64

A28311

BEARING, NEEDLE,63.5 mm ID x 73.139 mm OD x 38.1 mm

BEARING - needle, spindle, lower

1шт.

65

A24166

SEAL

- oil, spindle 2-1/2 x 3-1/2 x 1/2"

1шт.

66

A8649

SPINDLE - steering

1шт.
