Запчасти Case IH 430 (188) - STEERING WHEEL AND LINKAGE, 430 WITH DUAL FRONT WHEEL (05) - STEERING

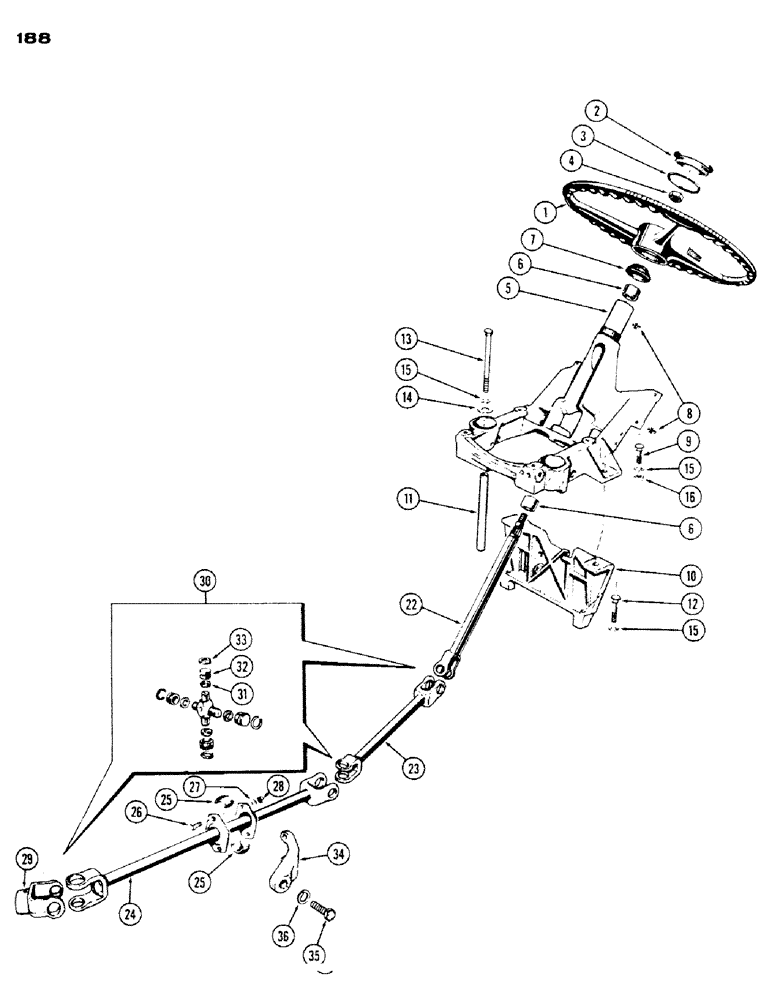

Схема запчастей Case IH 430 - (188) - STEERING WHEEL AND LINKAGE, 430 WITH DUAL FRONT WHEEL (05) - STEERING
29
6
1
10
12
31
9
15
23
14
33
26
11
22
24
2
27
13
30
15
15
28
25
6
5
25
35
7
4
8
32
3
16
34
36

Артикул

Название

Примечание

Количество

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

A20449

EMBLEM CASE/IH

MEDALLION - str. wheel (mechanical str.) (w/case eagle) (used w/430 & 530)

1шт.

2

A35603

CAP

MEDALLION - steering wheel (w/Power Steering) (Replaces A20475) (w/case eagle) (used w/430 & 530)

1шт.

2

A38785

CYLINDER END CAP

MEDALLION - str. wheel (mech. or power str.) (plain) (used w/470 & 570)

1шт.

3

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

4

25-1512

JAM NUT,Jam, 3/4"-10, G5

- wheel ret. (3/4" N.F. hex., jam)

1шт.

5

A35423

COLUMN ASSY. - steering, Includes: Ref. 6

1шт.

6

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- str. column

2шт.

7

G10742

SEAL

- dust, str. column

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (P. T. str.) 1/4"-28 NPT x .54" lg

2шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Column to support Hex, 3/8"-16 x 1 3/4", G5

2шт.

10

A36705

SUPPORT - steering column

1шт.

11

G10747

SPACER - support (7-3/8" long) 0.75" OD x 7.375" L

2шт.

12

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Support Hex, 3/8"-16 x 2 1/4", G5

2шт.

13

15-6128

BOLT

- column (3/8 x 8" N. C. hex.)

2шт.

14

195-522

WASHER,5/16"

- (3/8 x 3/4 x 5/64")

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

2шт.

22

A20683

SHAFT - steering, upper

1шт.

23

G13131

SHAFT - steering, intermediate

1шт.

24

A40603

SHAFT ASSY. - steering, lower (diesel), Includes: Ref. 25 - 28

1шт.

24

G14033

SHAFT ASSY. - steering, lower (Gas)

1шт.

25

G17025

CYLINDER END CAP

BEARING - half shell

2шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Brg. flange Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

2шт.

29

G10897

YOKE

- universal joint, front

1шт.

30

A30435

KIT

UNIVERSAL JOINT ASSY., Includes: Ref. 31 - 33

3шт.

31

A30766

WASHER - cork

4шт.

32

NSS

NOT SOLD SEPARAT

BEARING - (Order A30435)

4шт.

33

A31149

RING, SNAP

RING - snap, brg. ret.

4шт.

34

G1720

BRACKET - bearing support

1шт.

35

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Bracket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Выбрано товаров: 34
