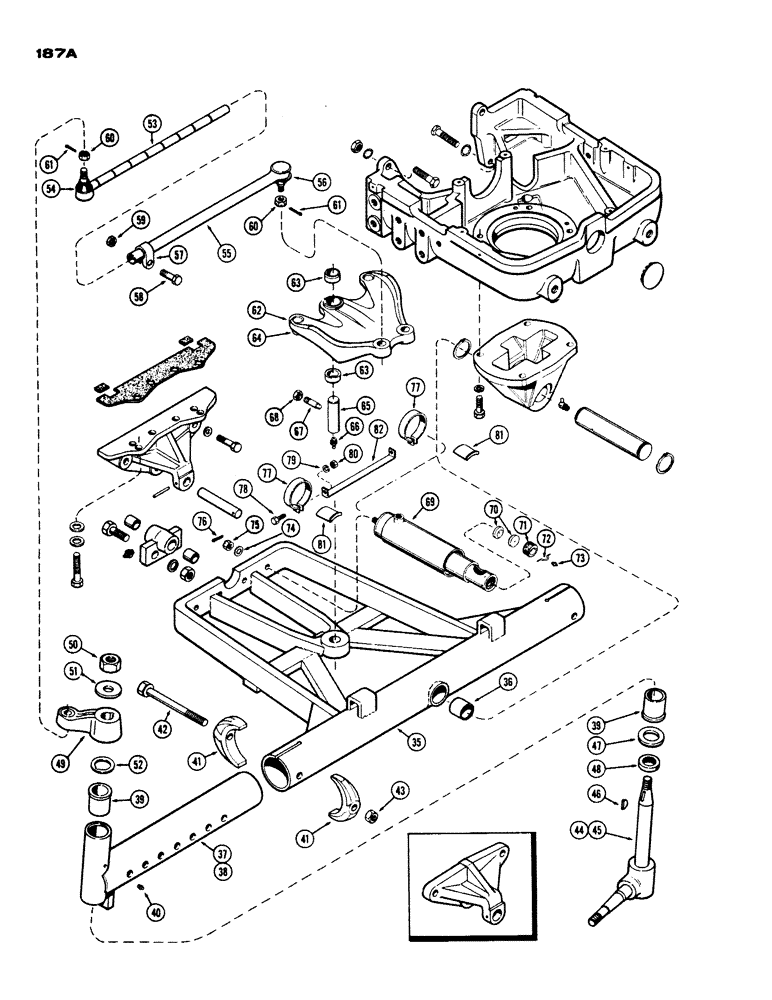

Запчасти Case IH 430 (187A) - ADJUSTABLE FRONT AXLE, 48 INCH TO 72 INCH, CONTINUED (05) - STEERING

35

A36790

AXLE ASSY. - center section, Includes: Ref. 36

1шт.

36

A36626

BUSHING

- pivot (1-3/4 x 1-15/16 x 1-5/8")

2шт.

37

A40745

EXTENSION ASSY. - front axle (See ref. 38)

2шт.

38

A37111

EXTENSION ASSY. - (without stop for L.C.K. with "Terra Tire"), Includes: Ref. 39

2шт.

39

A36637

BUSHING,34.82mm ID x 41.43mm OD x 50.8mm L

- spindle

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

41

A36638

CLAMP

- extension to center section

4шт.

42

113-641

X

BOLT - 5/8 x 6-1/2" N.C. hex. (Gr. 8)

2шт.

43

25-1010

NUT,5/8"-11, G5

2шт.

44

A36639

SPINDLE

- wheel (See ref. 45)

2шт.

45

A38204

SPINDLE - wheel (L.C.K. w/"Terra Tire") (Replaces A37112)

2шт.

46

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Arm to spindle #G, 3/8" x 1 1/2"

2шт.

47

A37051

WASHER

- thrust, wheel spindle

2шт.

48

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - thrust, wheel spindle

2шт.

49

A36802

ARM - steering, R. H.

1шт.

49

A36803

ARM - steering, L. H.

1шт.

50

25-1516

NUT,Jam, 1"-14, G5

- 1" N.C. hex., jam

2шт.

51

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- 1-1/16 x 2-1/2 x 11/64"

2шт.

52

A29467

SHIM,.010" Thk

Steering arm (1-13/32" x 2-1/8") .010" Thk

1шт.

53

A40524

ROD

- tie, steering arm (15-11/16" long), Includes: Ref. 54

2шт.

54

G46043

COVER

SEAL - dust

1шт.

55

A40791

TUBE

ASSY. - tie rod (18-1/4" long), Includes: Ref. 56

2шт.

56

G46043

COVER

SEAL - dust

1шт.

57

A41449

CLAMP

- tube

1шт.

58

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

59

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex. (heavy)

2шт.

60

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F. hex.

4шт.

61

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

62

A38144

ARM

ASSY. - center steering, Includes: Ref. 62 and 64

1шт.

63

A36645

BUSHING,25.25mm ID x 34.98mm OD x 16.13mm L

- pivot

2шт.

64

A38145

BALL

- arm

2шт.

65

A36648

PIN

- pivot, center steering arm

1шт.

66

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" drive str.)

1шт.

67

178-260

SET SCREW,Hex Soc, 3/8"-16 x 1 1/4"

SCREW - set, 3/8 x 1-1/4" N.C. socket hd. dog pt.

1шт.

68

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

1шт.

69

A36761

CYLINDER ASSY. - hydraulic (Repairs Figure 182)

2шт.

70

A57918

SEAT

BEARING - ball stud (Replaces A26629)

4шт.

71

A38164

ADJUSTMENT SCREW

SCREW - adjusting (takes 1/8" P.T. Fitting)

2шт.

71

A36762

X

SCREW - adjusting, (takes 1/4" str. drive fitting)

2шт.

72

A36763

ELECTRICAL WIRE

WIRE - lock, adjusting screw

2шт.

73

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

73

129-14

NUT,#5-40

FITTING - grease (1/4" str. drive)

2шт.

74

A28084

WASHER

- 41/64 x 1-1/2 x 3/16"

2шт.

75

A31194

NUT - cyl, to axle (9/16" N.F. hex.slotted)

2шт.

76

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - split (Cotter), 3/32" x 1 1/4"

2шт.

77

A37948

CLAMP - cylinder stabilizer

2шт.

78

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

79

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80

25-104

NUT,1/4"-20, G5

2шт.

81

A38786

PLATE

- steering cylinder stop

2шт.

82

A37947

X

STRAP - cylinder (Order 2-A38786)

1шт.
