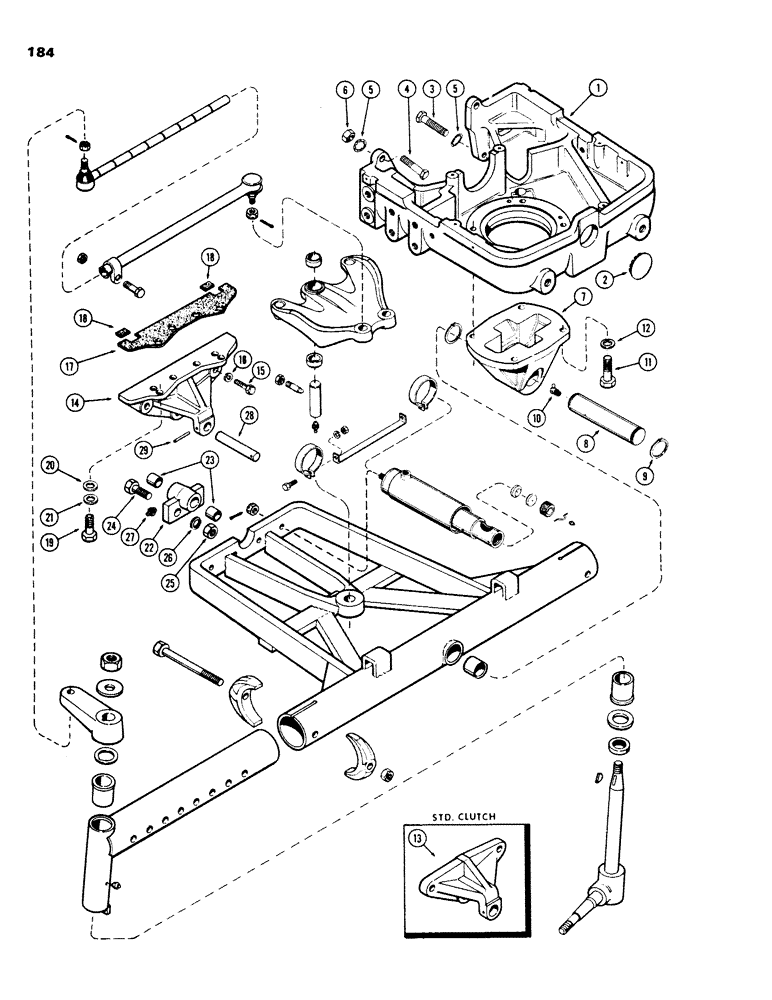

Запчасти Case IH 430 (184) - ADJUSTABLE FRONT AXLE, 52 INCH TO 80 INCH (05) - STEERING

1

A36716

SUPPORT - front axle and radiator

1шт.

2

205-69

PLUG - button (2-1/4" dia.)

1шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Lower Hex, 5/8"-11 x 2 1/4", G5

2шт.

4

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- upper (5/8 x 3" N. F. hex. hd.)

2шт.

5

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

6

25-1110

NUT,5/8"-18, G5

- 5/8" N. F. hex.

2шт.

7

A36621

PEDESTAL - pivot pin, axle

1шт.

8

A37066

PIN

- pivot, axle

1шт.

9

A27085

RING

- snap, pivot pin

2шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 degrees

1шт.

11

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

A36651

BRACKET - rear pivot (w/std. clutch)

1шт.

14

A36652

BRACKET - rear pivot (w/C-O-M)

1шт.

15

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

A36653

GASKET

- rear bracket (w/C-O-M only)

1шт.

18

A11604

OIL PAN GASKET SET

- rear bracket (w/C-O-M only)

2шт.

19

A38202

BOLT

- 5/16 x 1-1/4" N.C. hex. (w/C-O-M)

4шт.

20

195-400

WASHER

- sealing, 5/16"

2шт.

21

92-5

LOCK WASHER,5/16"

WASHER - 3/8" x 5/8 x 5/64"

2шт.

22

A38199

PIVOT

ASSY. - radius rod rear (replace A36574), Includes: Ref. 23

1шт.

23

A29944

BUSHING

- pivot

2шт.

24

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

25

25-1010

NUT,5/8"-11, G5

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T. 67-1/2 degrees)

1шт.

28

A29725

PIN

- pivot, rear

1шт.

29

138-2039

PIN,1/4" x 2", Coiled

1шт.
