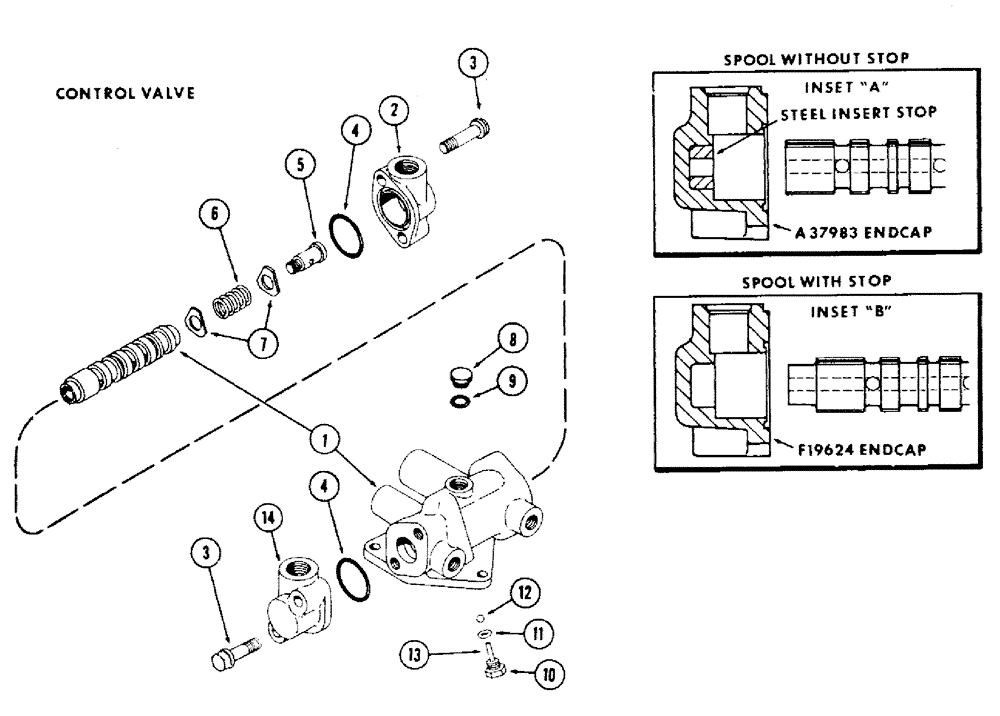

Запчасти Case IH 430 (182) - A37980 VALVE (05) - STEERING

A37980

VALVE

ASSY. - complete, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY & SPOOL (Order A37980)

1шт.

2

F19624

CAP

- end (See ref. 40)

1шт.

3

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (includes washer)

4шт.

4

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

5

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

6

F19622

VALVE SPRING

SPRING - centering

1шт.

7

F19619

WASHER

- spring retaining

2шт.

8

F83122

PLUG

ASSY. - top, valve body, Includes: Ref. 9

1шт.

9

F19628

O-RING

"O" RING - plug

1шт.

10

F82943

VALVE

PLUG ASSY. - relief valve, Includes: Ref. 11 - 13

1шт.

11

F19630

O-RING

"O" RING - relief plug

1шт.

12

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

1шт.

13

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

14

F19624

CAP

- end (w/o stop)

1шт.

14

A37983

CAP

- end (w/stop)

1шт.

A37983 end cap with stop must be used when valve spool does not have a stop. See Inset "A"

1шт.
