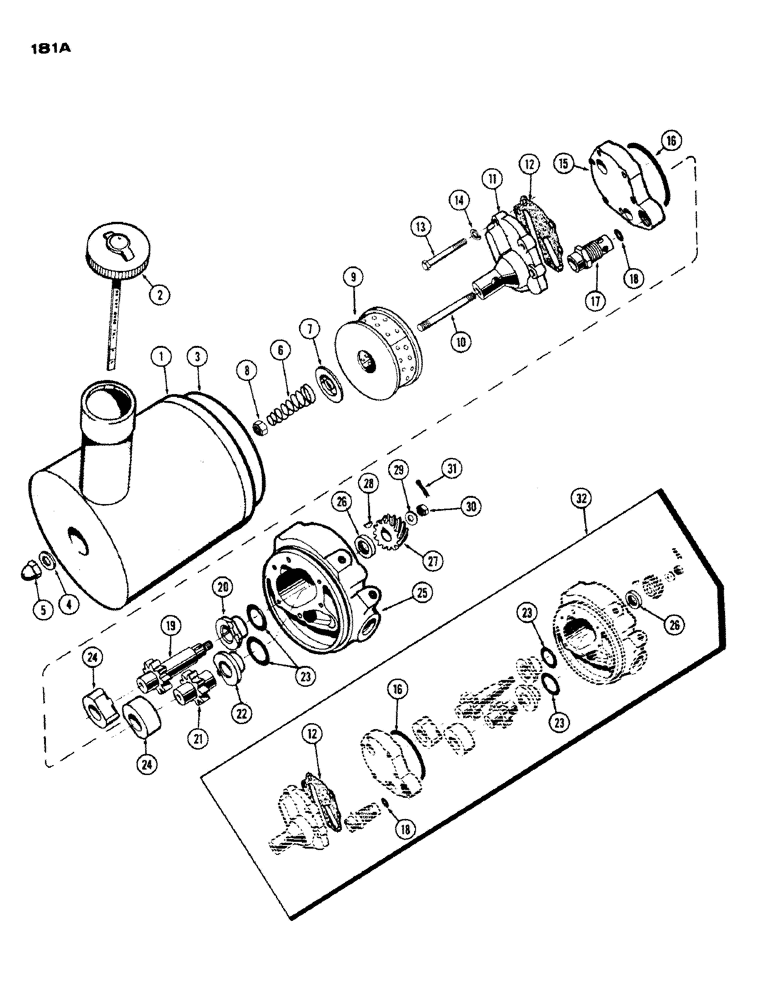

Запчасти Case IH 430 (181A) - A36559 PUMP, HYDROSTATIC STEERING (05) - STEERING

A36559

PUMP

ASSY. - power steering (not illust.), Includes: Ref. 1 - 31

1шт.

1

A35951

RESERVOIR

- oil

1шт.

2

A35967

GAUGE

CAP - reservoir, w/dipstick

1шт.

2

A35967AM

DIPSTICK

CAP - reservoir, w/dipstick

1шт.

3

A35965

O-RING,2.87mm Thk x 120.27mm ID

GASKET - reservoir

1шт.

4

A35961

WASHER

- reservoir ret. nut

1шт.

5

129-525

CROWN NUT,Crown, 3/8"-16

- reservoir ret. (3/8" N.C. acorn)

1шт.

6

A35963

SPRING

- element tension

1шт.

7

A35962

CAP

SEAT - element spring

1шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

- spring ret. (3/8" N.C. half hex.)

1шт.

9

A42242

FILTER, ELEMENT

ELEMENT - pump filter (Replaces A30834)

1шт.

10

A35952

STUD

- reservoir (3/8" N.C. x 2-3/8")

1шт.

11

A35950

COVER

- pump, rear

1шт.

12

A35966

GASKET

- rear cover (See Ref. 32)

1шт.

Part of seal kit P/N A35970

1шт.

13

A35964

BOLT (SPREADER)

BOLT - cover (1/4 x 1-1/2" N.C. hex.)

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A35949

COVER

- pump, intermediate

1шт.

16

35959

"O" RING - intermediate cover (See Ref. 32)

1шт.

Part of seal kit P/N A35970

1шт.

17

A35968

CARTRIDGE

VALVE ASSY. - pump relief, Includes: Ref. 18

1шт.

18

42187

"O" RING - relief valve (See Ref. 32)

1шт.

Part of seal kit P/N A35970

1шт.

19

A25593

GEAR

- lead (Driven Gear)

1шт.

20

A35957

BEARING

- lead gear, front

1шт.

21

A35954

GEAR

- follow (Idler Gear)

1шт.

22

A35955

BEARING

- follow gear, front

1шт.

23

A35958

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING - frt. bearing (See Ref. 32)

2шт.

24

A35956

BEARING

- rear

2шт.

25

A35948

BODY

- pump, front

1шт.

26

50421

SEAL - oil, pump body (See Ref. 32) (Replaces G13827)

1шт.

Part of seal kit P/N A35970

1шт.

27

A25594

GEAR

- pump drive

1шт.

28

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Drive gear #3, 1/8" x 1/2", HT

1шт.

29

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64")

1шт.

30

F18390

NUT

- gear retaining (3/8" N.F. sltd.)

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

A35970

KIT

SEAL KIT - pump, Includes: Refs. 12, 16, 18, 23 and 26

1шт.
