(175A) - L.C.K. FRONT WHEELS

Запчасти Case IH 430 (175A) - L.C.K. FRONT WHEELS (05) - STEERING

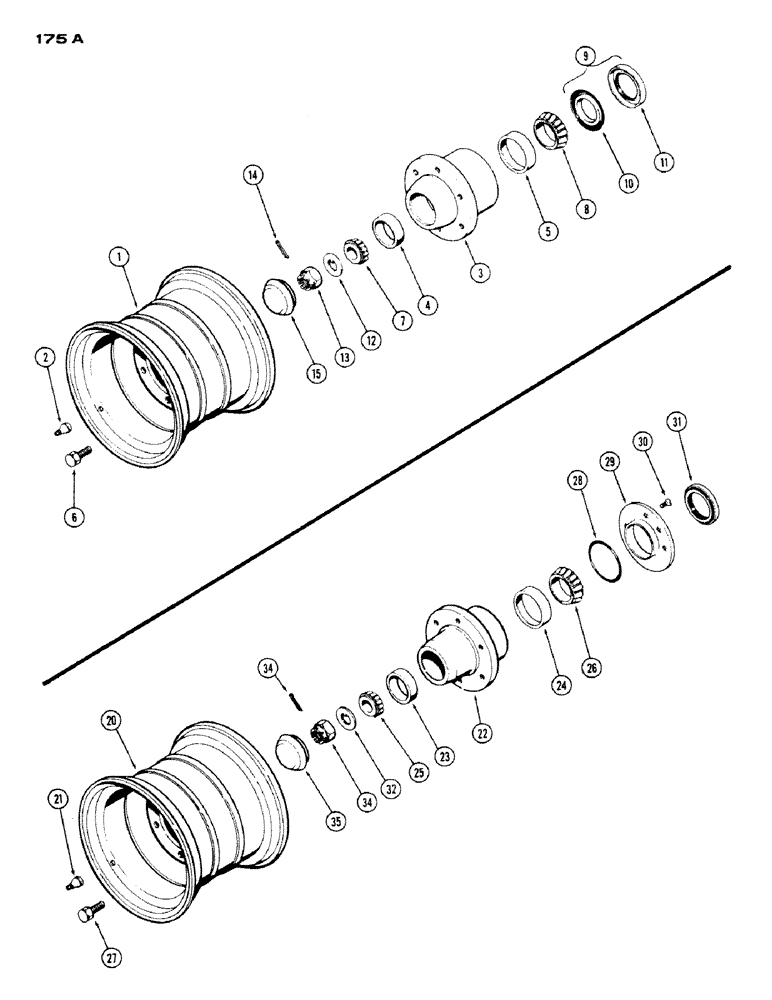

Схема запчастей Case IH 430 - (175A) - L.C.K. FRONT WHEELS (05) - STEERING
9
34
3
27
6
10
24
14
15
25
21
2
11
5
34
30
31
35
26
29
4
32
8
28
20
13
22
1
12
23
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A37107

WHEEL - integral (26 x 12 tubeless)

2шт.

2

A38261

VALVE

- tubeless tire (includes cap & core) (Replaces A37109)

2шт.

3

A57336

HUB

ASSY. - (takes A57250 seal), Includes: Ref. 3 and 4

2шт.

4

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

5

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

6

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16" - 18 NF

12шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

8

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

9

A57250

OIL SEAL

KIT - front wheel seal, Includes: Ref. 10 and 11

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - inner half

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - outer half

1шт.

12

A26789

BEARING WASHER

WASHER - hub nut

2шт.

13

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hub to spindle, 1-1/8" N.F. slotted

2шт.

14

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

15

A29425

CAP

- hub

2шт.

20

A37107

WHEEL - integral (26 x 12 tubeless)

2шт.

21

A38261

VALVE

- tubeless tire (includes cap & core) (Replaces A37109)

2шт.

22

A38187

HUB

ASSY. - (uses 9/16" N.F. bolt), Includes: Ref. 23 and 24, Start Serial: 8317327

2шт.

22

G14042

X

HUB ASSY. - (used 1/2" N.F. bolt), Includes: Ref. 23 and 24, Serial Range: -8317327

2шт.

23

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

24

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

25

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

26

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

27

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16" N.F. spec. (used w/A37187 hub)

12шт.

27

A30064

BOLT

- wheel to hub, 1/2" N.F. special (use w/G14042 hub)

12шт.

28

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - oil seal retainer

2шт.

29

A27140

RETAINER

- hub oil seal

2шт.

30

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4 x 5/8" N.C. flat hd.

10шт.

31

A27139

SEAL

- oil, wheel hub

2шт.

32

A26789

BEARING WASHER

WASHER - hub nut

2шт.

33

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hub to spindle (1-1/8" N.F. slotted)

2шт.

34

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

35

A29425

CAP

- hub

2шт.
