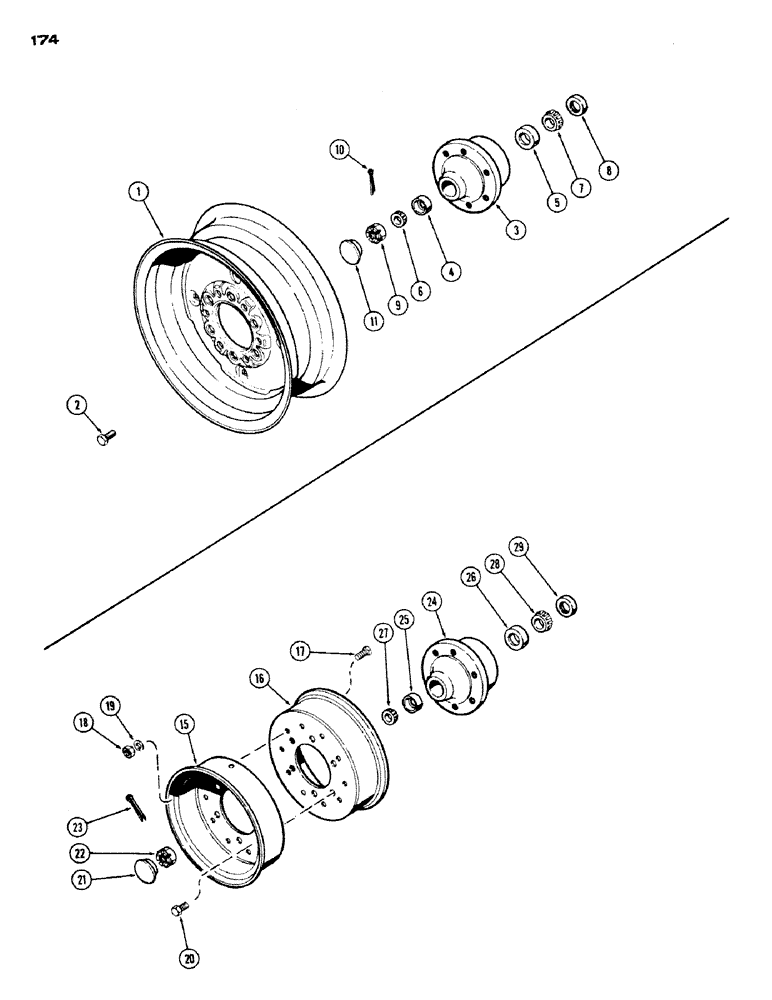

Запчасти Case IH 430 (174) - L.C.K. FRONT WHEELS (05) - STEERING

1

A36743

WHEEL

- integral (5.90 x 15 tire)

2шт.

2

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

3

G13065

X

HUB ASSY., Includes: Ref. 4 and 5

2шт.

4

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (1-25/32" O.D.)

1шт.

5

G57451

BEARING, CUP

CUP - bearing, inner (2-9/16" O.D.)

1шт.

6

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (3/4" I.D.)

2шт.

7

G57452

ROLLER BEARING

CONE - bearing, inner (1-3/8" I.D.)

2шт.

8

G13053

OIL SEAL

- oil, inner (1-15/16 x 2-9/16 x 7/16")

2шт.

9

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. hex., sltd.)

2шт.

10

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

11

B13280

HUB CAP

CAP - hub

2шт.

15

A36740

WHEEL

- outer half w/valve hole (7.50 x 10 tire)

2шт.

16

A36741

WHEEL

- inner half (7.50 x 10 tire)

2шт.

17

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Wheel halves Hex, 1/2"-13 x 1", G5, Full Thd

20шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

20

A30064

BOLT

- wheel, Serial Range: halves-hub

12шт.

21

B13280

HUB CAP

CAP - hub

2шт.

22

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. slotted)

2шт.

23

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

24

G13065

X

HUB ASSY., Includes: Ref. 25 and 26

2шт.

25

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (1-25/32" O.D.)

1шт.

26

G57451

BEARING, CUP

CUP - bearing, inner (2-9/16" O.D.)

1шт.

27

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (3/4" I.D.)

2шт.

28

G57452

ROLLER BEARING

CONE - bearing, inner (1-3/8" I.D.)

2шт.

29

G13053

OIL SEAL

- oil, spindle hub (1-15/16 x 2-9/16 x 7/16")

2шт.
