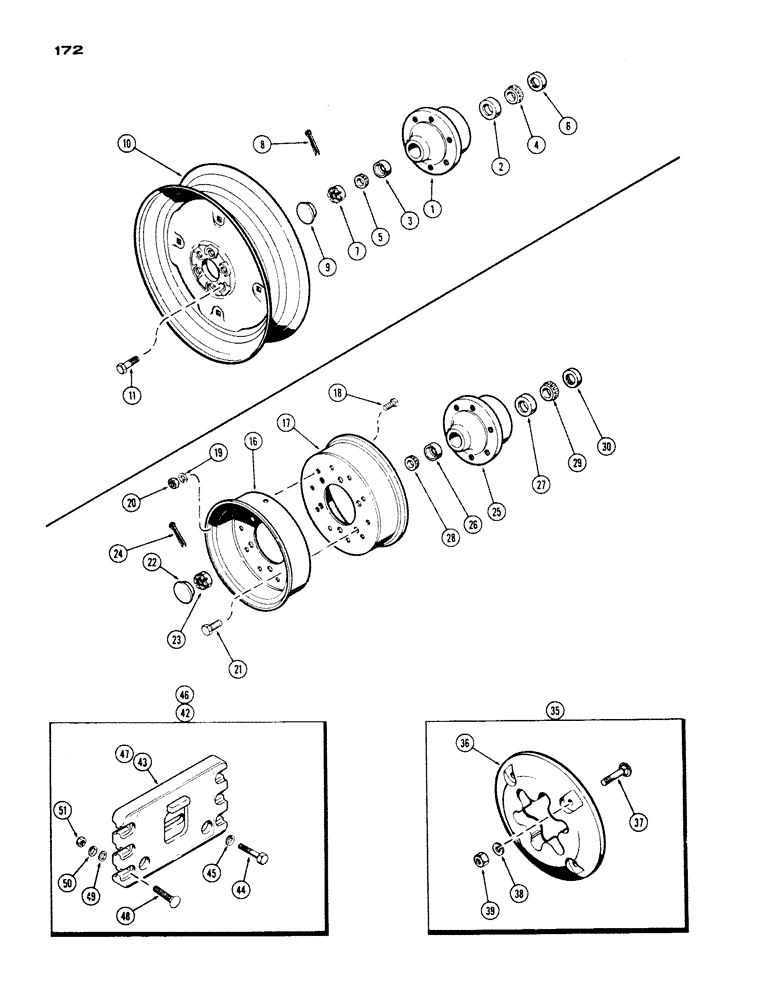

Запчасти Case IH 430 (172) - FRONT WHEELS (05) - STEERING

1

G13065

X

HUB ASSY. - front wheel, Includes: Ref. 2 - 4

2шт.

2

G57451

BEARING, CUP

CUP - bearing, inner (2-9/16" O.D.)

1шт.

3

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (1-25/32" O.D.)

1шт.

4

G57452

ROLLER BEARING

CONE - bearing, inner (1-3/8" I.D.)

2шт.

5

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (3/4" I.D.)

2шт.

6

G13053

OIL SEAL

- oil, inner (1-15/16 x 2-9/16 x 7/16")

2шт.

7

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. slotted)

2шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

B13280

HUB CAP

CAP - hub

2шт.

10

A36738

RIM

WHEEL - (6.00 x 14 tire) (1-1/8" offset) (4 Wheel)

2шт.

10

A38938

RIM

WHEEL - (5.50 x 16 or 6.00 x 16 tire) (Replaces G10660) (4 Wheel & General Purpose)

2шт.

A38261

VALVE

- (for tubeless tire) (not illust.)

2шт.

10

A37054

WHEEL

- (7.60 x 15 tire) (3/4" offset) (4 Wheel or G.P.)

2шт.

11

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

16

A36740

WHEEL

- outer half w/valve hole (7.50 x 10 tire), model 430

2шт.

17

A36741

WHEEL

- inner half (7/50 x 10 tire), model 430

2шт.

18

113-456

BOLT - wheel halves (1/2 x 1" N.C. hex.), model 430

20шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Model 430 1/2"

20шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

Model 430 1/2"-13, G5

20шт.

21

A30064

BOLT

- wheel halves to hub, model 430

12шт.

22

B13280

HUB CAP

CAP - hub, model 430

2шт.

23

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. sltd. hex.), model 430

2шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Model 430 1/8" x 1 1/4"

2шт.

25

G13065

X

HUB ASSY., model 430, Includes: Ref. 26 and 27

2шт.

26

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (1-25/32" O.D.), model 430

1шт.

27

G57451

BEARING, CUP

CUP - bearing, inner (2-9/16" O.D.), model 430

1шт.

28

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (3/4" I.D.), model 430

2шт.

29

G57452

ROLLER BEARING

CONE - bearing, inner (1-3/8" I.D.), model 430

2шт.

30

G13053

OIL SEAL

- oil, inner (1-15/16 x 2-9/16 x 7/16"), model 430

2шт.

35

G12050M

WEIGHT ATTACHMENT - front wheel, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

WEIGHT - (Order G 12050M), front wheel

2шт.

37

11-848

BOLT - 1/2 x 3" N.C. rd. hd. sq. nk., front wheel weights

8шт.

38

92-8

LOCK WASHER,1/2"

front wheel weights 1/2"

8шт.

39

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., front wheel weights

8шт.

42

A36980M

WEIGHT ATTACHMENT - starter, front end, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

WEIGHT - (100 lb.) Order A36980M, front end

1шт.

44

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Front end weights Hex, 3/4"-10 x 2 1/2", G5

2шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4"

2шт.

46

A33260M

WEIGHT ATTACHMENT - additional, front end, Includes: Ref. 47 - 51

1шт.

47

NSS

NOT SOLD SEPARAT

WEIGHT - (100 lb.) Order A 33260M, front end

1шт.

48

B90584

BOLT

- 3/4 x 4" N.C. rd. hd. sq. nk., front end weights

2шт.

49

A34920

WASHER

- 25/32 x 1-3/4 x 7/32", front end weights

2шт.

50

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4"

2шт.

51

25-1012

NUT,3/4"-10, G5

Front end weights 3/4"-10, G5

2шт.
