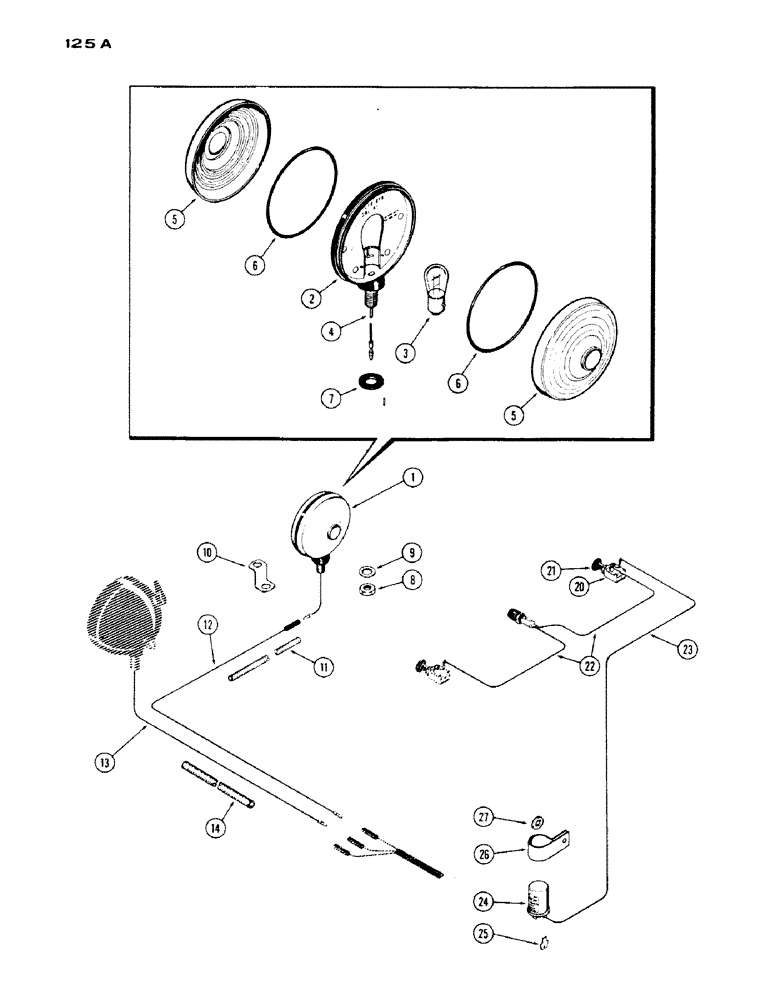

Запчасти Case IH 430 (125A) - FLASHING WARNING LAMP (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

ASSY. - flasher warning, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY (Order A34853)

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

A41260

WIRE - lead in

1шт.

5

A41261

LENS

- amber

2шт.

6

A41262

O-RING,3.484" ID x 0.139"

"O" RING - lens

2шт.

7

A41263

GASKET - mounting

1шт.

8

129-125

NUT,1/2"-20, G5

1шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, 1/2" int. Shakeproof

1шт.

10

A22880

CLIP

- lamp terminal

1шт.

11

A37940

LOOM

- lead in wire (1/4" I.D. x 5-1/2")

1шт.

12

A34889

WIRE - lamp to main harness (47-1/2")

1шт.

13

A37934

WIRE - tail lamp to main harness (48")

1шт.

14

A11776

LOOM - tail lamp & flasher wire (3/8" I.D. x 38")

1шт.

20

A37936

SWITCH

ASSY. - flasher, Incl Ref 21

1шт.

21

A37937

KNOB

- flasher switch

1шт.

22

A38180

COMPRESSION SPRING

WIRE - flasher switch to fuse and light switch

1шт.

23

A37938

WIRE - light switch to flasher unit (18")

1шт.

24

A34867

FLASHER UNIT

FLASHER - 12 volt

1шт.

25

A34862

KIT

ADAPTER - by pass, flasher

1шт.

26

A34868

CLAMP

BRACKET - flasher mounting

1шт.

27

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

1шт.
